Description

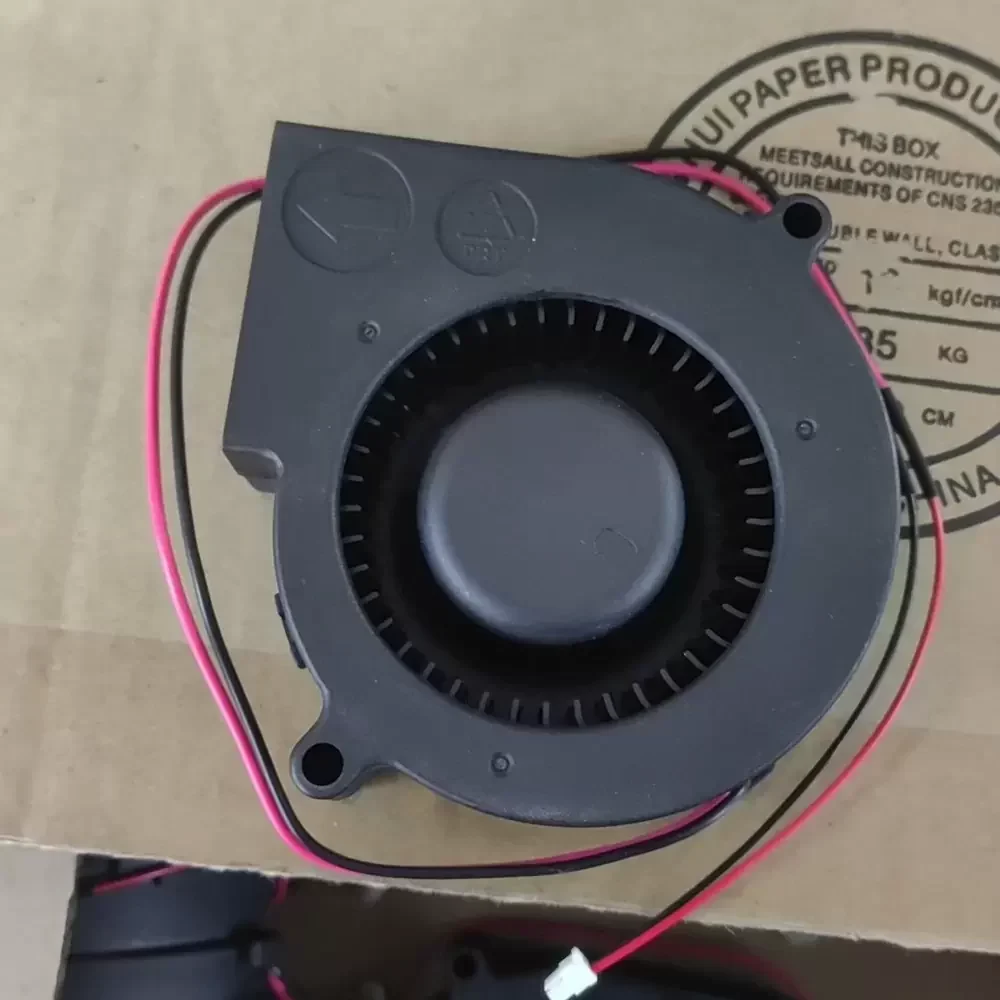

The Delta BFB0712H-A is a Centrifugal Blower designed for applications requiring high static pressure and directed airflow within compact enclosures. Engineered with a high-efficiency DC brushless motor and a precision dual ball bearing architecture, this unit ensures long-term reliability and reduced thermal impedance. The aerodynamic scroll housing is constructed to optimize air intake and exhaust velocity, providing structural rigidity and consistent performance under significant back pressure. Its robust design makes it an ideal solution for industrial cooling scenarios where space is limited but high-velocity air delivery is critical for effective thermal management.
Model Number: BFB0712H-A
Brand: Delta Electronics
Product Type: Centrifugal Blower
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.33 A
Power: 3.96 W
Rated Speed: 2900 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 11.3 CFM (19.2 m³/h / 0.32 m³/min)
Max. Static Pressure: 12.0 mmH₂O (117.6 Pa / 0.47 inH₂O)
Dimensions: 75 x 75 x 30 mm
Weight: 90 g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 38.0 dB-A
Housing Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Termination: 2-Wire Leads (Red/Black)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP40
Safety Certifications: UL, cUL, TUV, CE
This blower is frequently utilized in compact electronic enclosures, rack-mount servers, and projector cooling systems where concentrated airflow is necessary to overcome system resistance. The BFB0712H-A excels in 3D printer part cooling and industrial automation equipment, effectively dissipating heat from critical components like heatsinks and power supplies. Integrators rely on the BFB0712H-A for its balance of size, pressure generation, and durability in continuous operation environments.
