Description

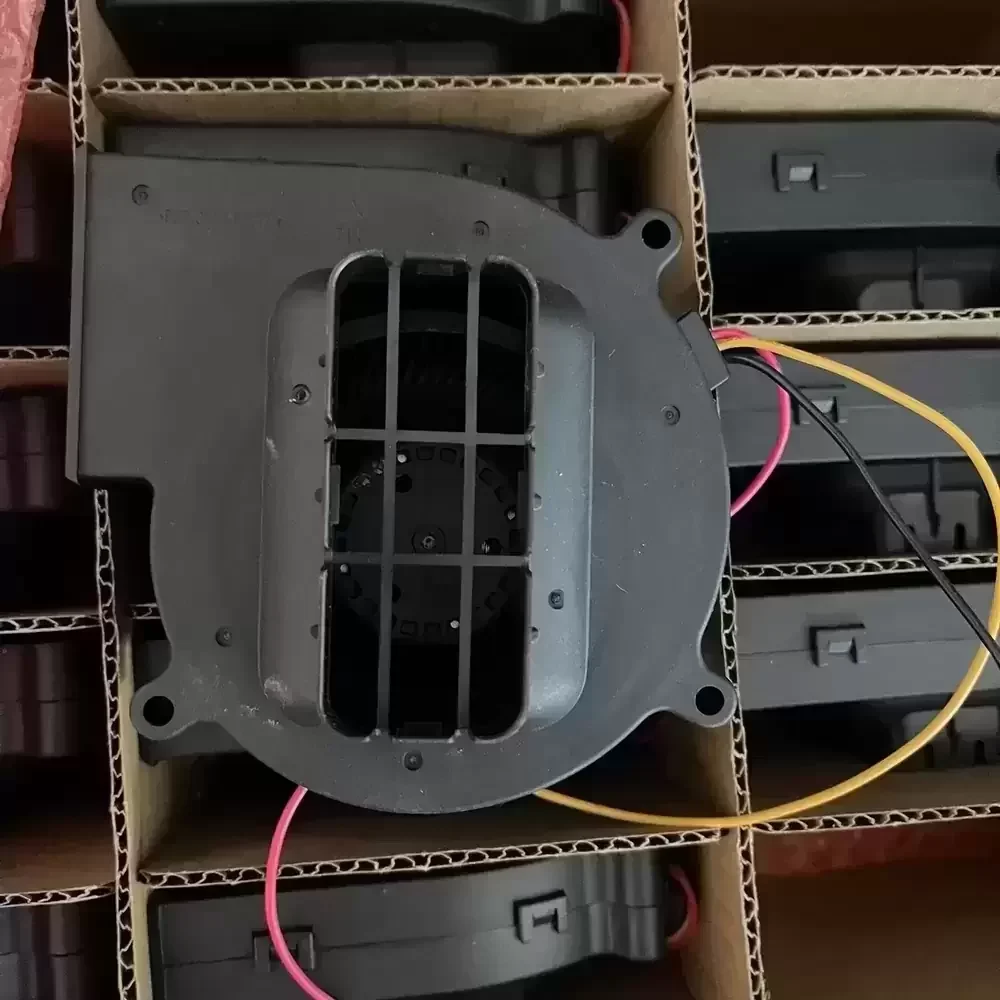

The Delta BFB1012HD-HQF is a precision-engineered DC centrifugal blower designed for demanding automotive and industrial cooling applications where static pressure is paramount. Utilizing advanced brushless DC motor technology, this unit optimizes aerodynamic efficiency through a turbine-style impeller, significantly reducing thermal impedance in restricted spaces. The robust construction ensures structural rigidity under high-vibration conditions, typical of automotive seat ventilation systems. Featuring a specialized 13.5VDC winding profile, it delivers high static pressure output while maintaining operational stability. The 3-wire interface supports tachometer signal monitoring, allowing for precise speed regulation and system feedback integration in complex thermal management circuits.
Model Number: BFB1012HD-HQF
Brand: Delta Electronics
Product Type: DC Centrifugal Blower
Rated Voltage: 13.5 VDC
Voltage Range: 8.0 – 15.0 VDC
Rated Current: 0.87 A
Power Consumption: 11.75 W
Rated Speed: 3600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 25.43 CFM (43.2 m³/h / 0.72 m³/min)
Max. Static Pressure: 25.4 mmH₂O (249 Pa / 1.0 inH₂O)
Dimensions: 97 x 94 x 33 mm
Weight: 166 g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 55.0 dB(A)
Speed Control: Tachometer Output (Frequency Generator)
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 3-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP54 (Dust Protected)
Safety Certifications: UL, cUL, TUV, CE
The BFB1012HD-HQF is specifically calibrated for integration into automotive seating environments, providing critical airflow for climate-controlled passenger comfort systems. Its high-pressure output makes it ideal for pushing air through dense foam and fabric layers found in luxury vehicle upholstery. Beyond automotive uses, the BFB1012HD-HQF serves effectively in compact electronics cooling, server rack spot cooling, and industrial ventilation where directed airflow is required to mitigate localized hotspots.
