Description

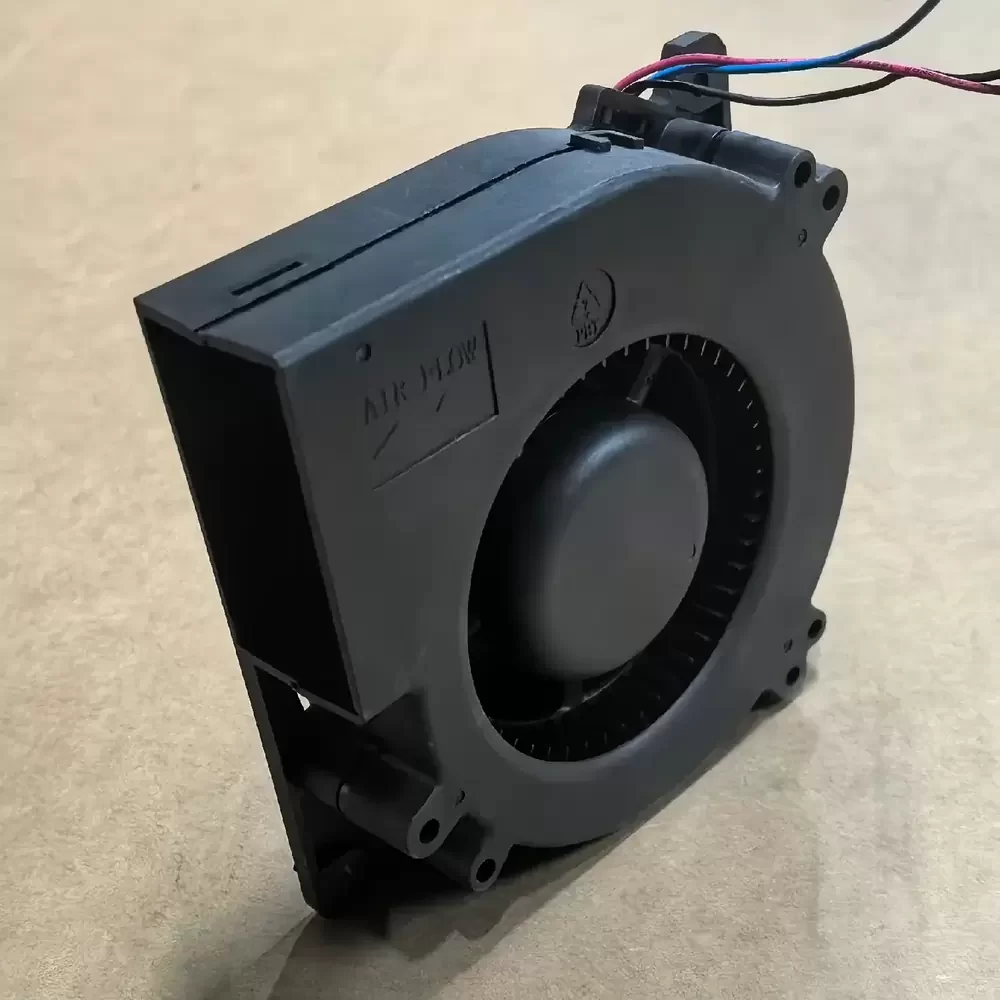

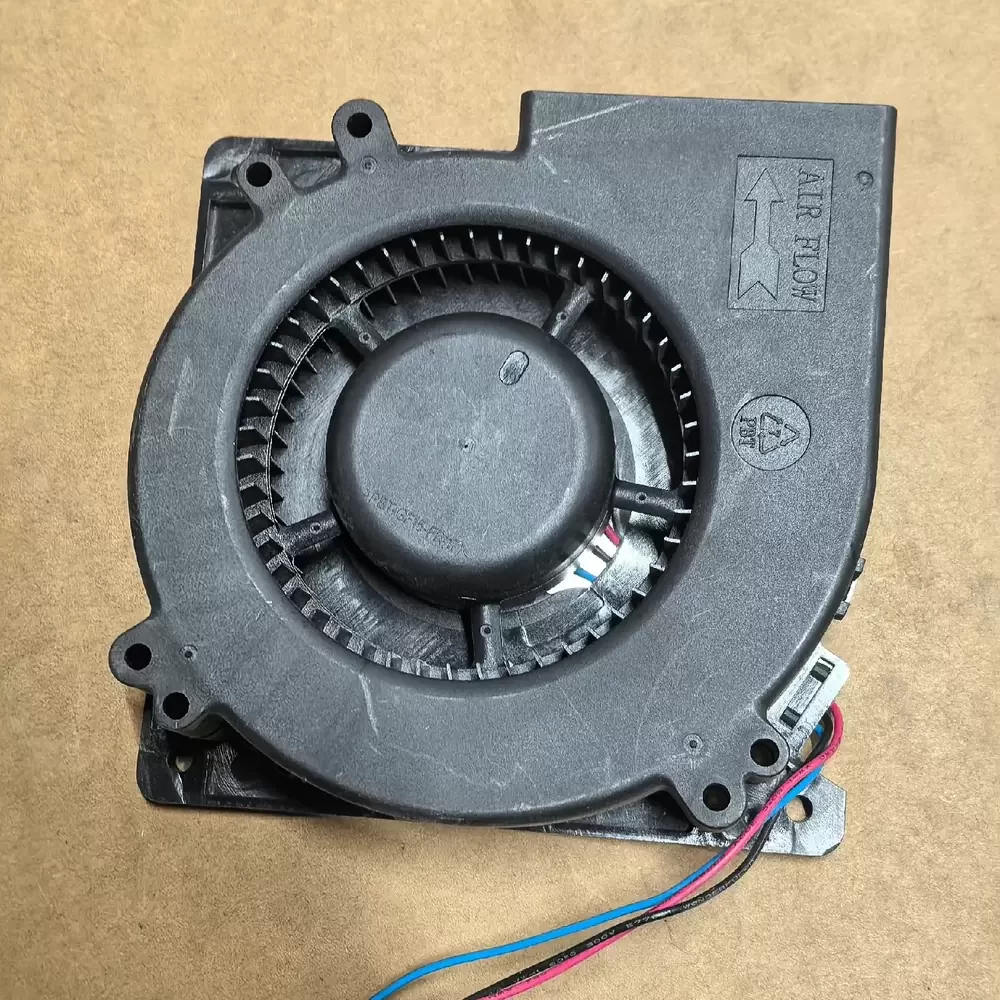

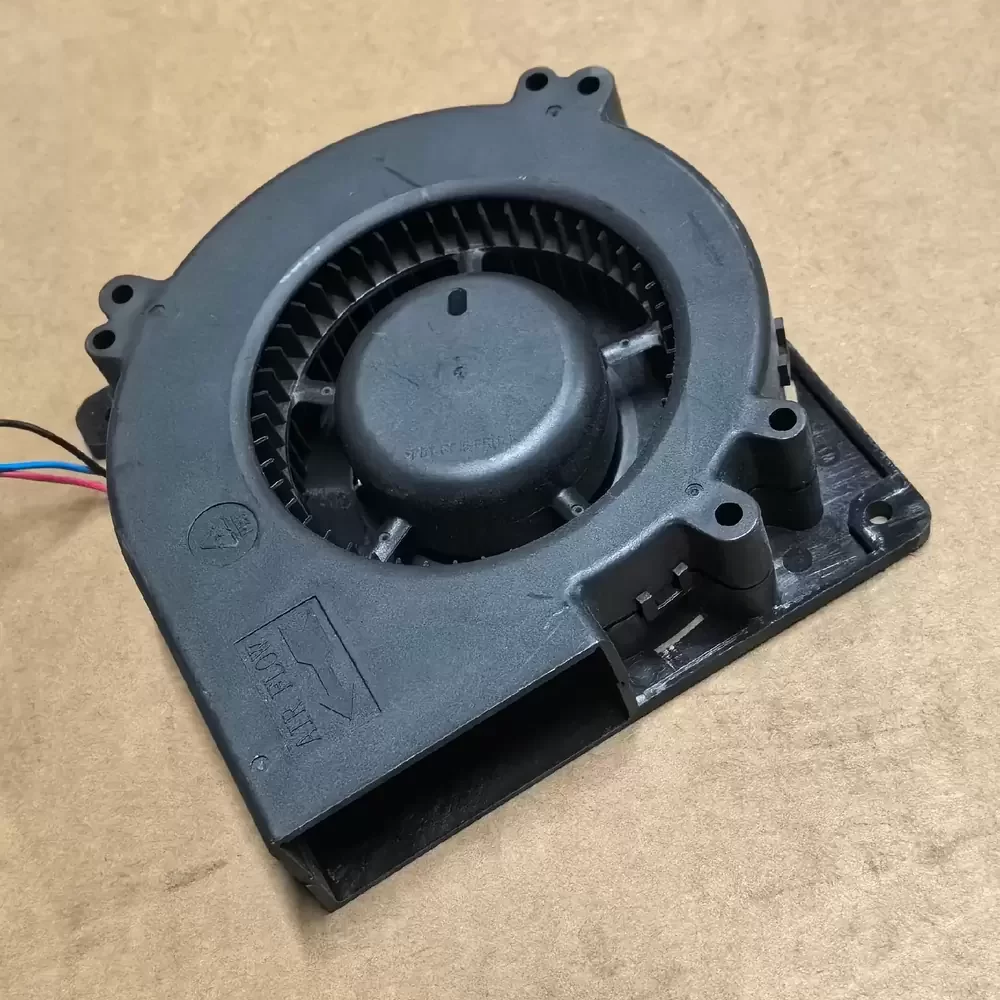

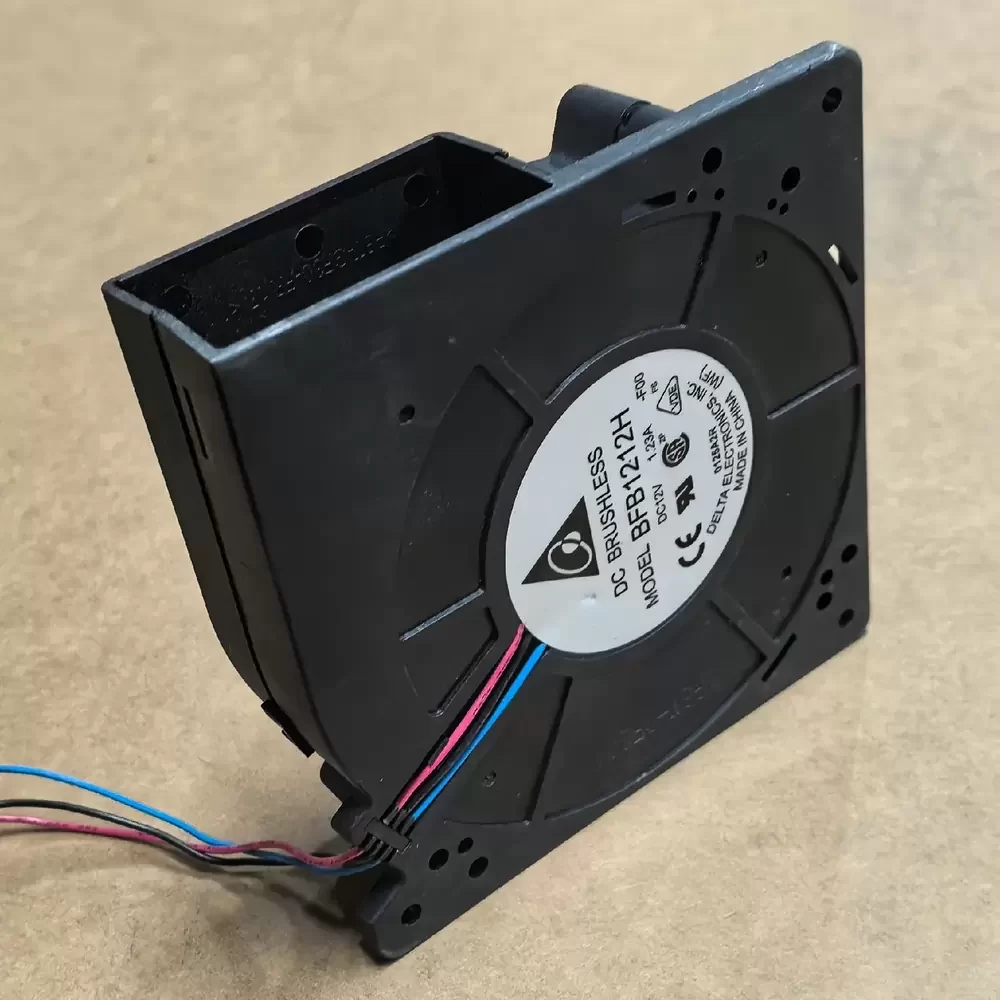

The Delta BFB1212H-F00 is a DC Centrifugal Blower engineered for high-static pressure applications requiring focused airflow delivery against significant resistance. Utilizing advanced centrifugal aerodynamics, this unit channels air perpendicular to the intake, making it ideal for systems with high thermal impedance. The motor assembly features a robust 2 Ball Bearing architecture, ensuring long-term structural rigidity and operational stability under continuous load. Constructed with UL94V-0 rated thermoplastic, the housing optimizes airflow efficiency while minimizing turbulence-induced noise. This precision-engineered component delivers reliable thermal dissipation for critical industrial and electronic hardware, ensuring optimal performance in demanding environments.
Model Number: BFB1212H-F00
Brand: Delta Electronics
Product Type: DC Centrifugal Blower
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 1.23 A
Power Input: 14.76 W
Rated Speed: 2800 RPM
Bearing Type: 2 Ball Bearing
Max. Air Flow: 44.14 CFM (75.0 m³/h / 1.25 m³/min)
Max. Static Pressure: 28.0 mmH₂O (274.6 Pa / 1.10 inH₂O)
Dimensions: 120x120x32mm
Noise Level: 54.0 dB-A
Speed Control: F00 (Frequency Generator/Tachometer)
Termination: 3-Wire Lead
Housing Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 50,000 – 70,000 Hours at 40°C
Weight: 295 g
Ingress Protection: IP Rating Optional
Safety Certifications: UL, cUL, TUV, VDE
The BFB1212H-F00 is specifically designed for applications where space is constrained and airflow must be directed at a 90-degree angle, such as in rack-mount servers and telecommunications equipment. Its high static pressure capabilities make it suitable for forcing air through dense heatsinks in industrial automation systems and CNC machinery. Additionally, the BFB1212H-F00 serves effectively in projector cooling modules, 3D printers, and medical instrumentation where reliable thermal regulation is paramount to prevent component failure.
