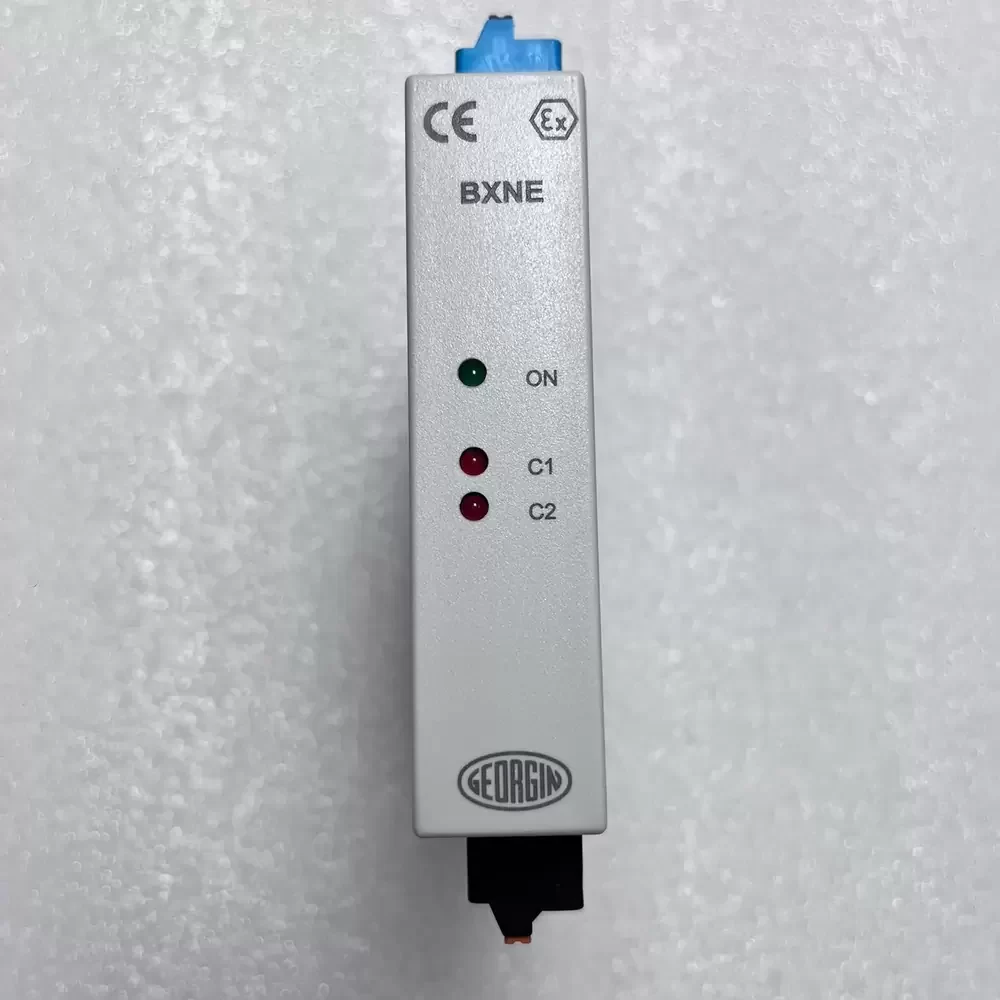

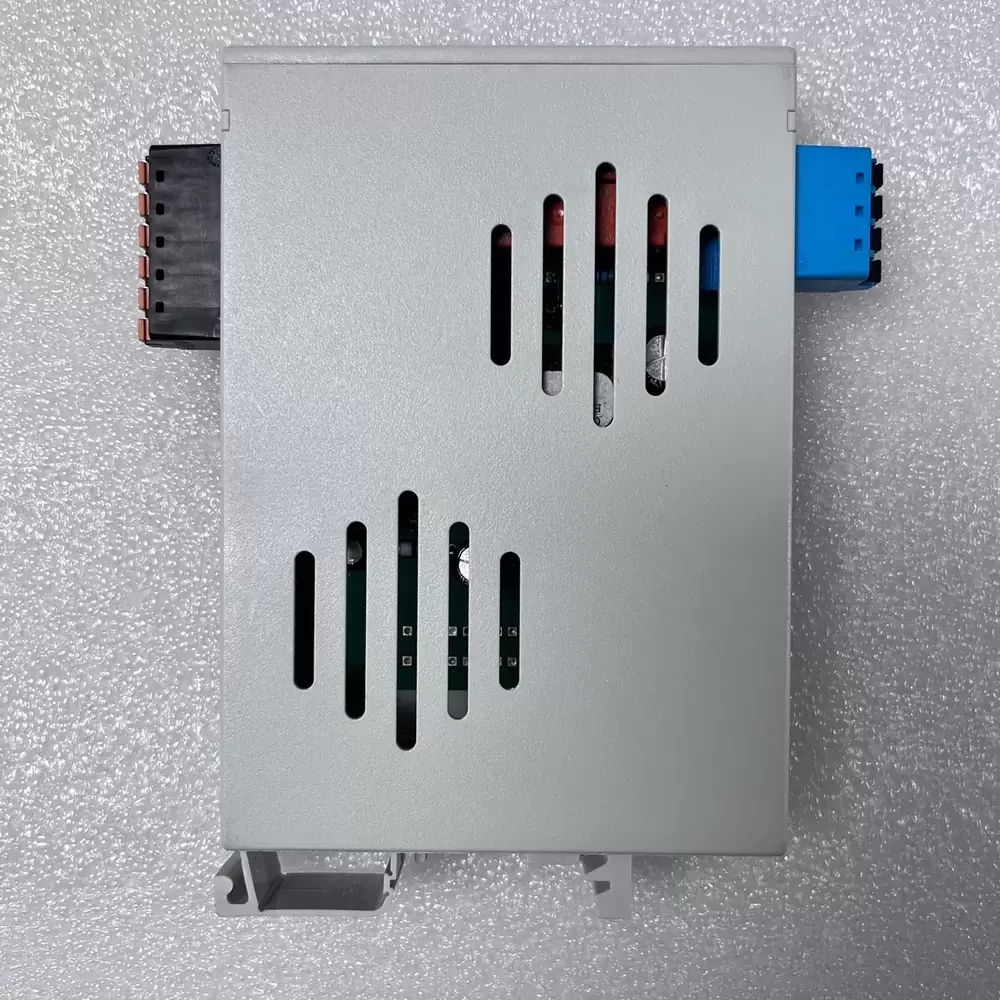

BXNE412002 Georgin 115/230VAC 24/48VDC ATEX Safety Barrier

Description

Georgin BXNE412002 is a 45 mm wide dual-channel intrinsic safety power supply module featuring 115/230 V AC input and 24/48 V DC supply compatibility. The unit provides a regulated 19.5 V DC output with a maximum current of 170 mA and 1.64 W power capacity per channel. It is constructed with a polycarbonate housing for DIN rail mounting and ensures 2500 V AC galvanic isolation between the power supply and hazardous area circuits. The device is certified under ATEX [Ex ia] IIC for installation in safe zones to power equipment in zones 0, 1, 2, 20, 21, and 22.

BXNE412002 Specifications
Model: BXNE412002
Brand: Georgin
Product Type: Intrinsic Security Power Supply
Barrier Type: Galvanic Barrier
Number of Channels: 2
Input Voltage: 110 / 230 V AC
Input Frequency: 48 to 62 Hz
Alternative Supply: 21.6 / 53 V DC
Output Voltage (Uo): 19.5 V DC
Output Current (Io): 170 mA
Output Power (Po): 1.64 W

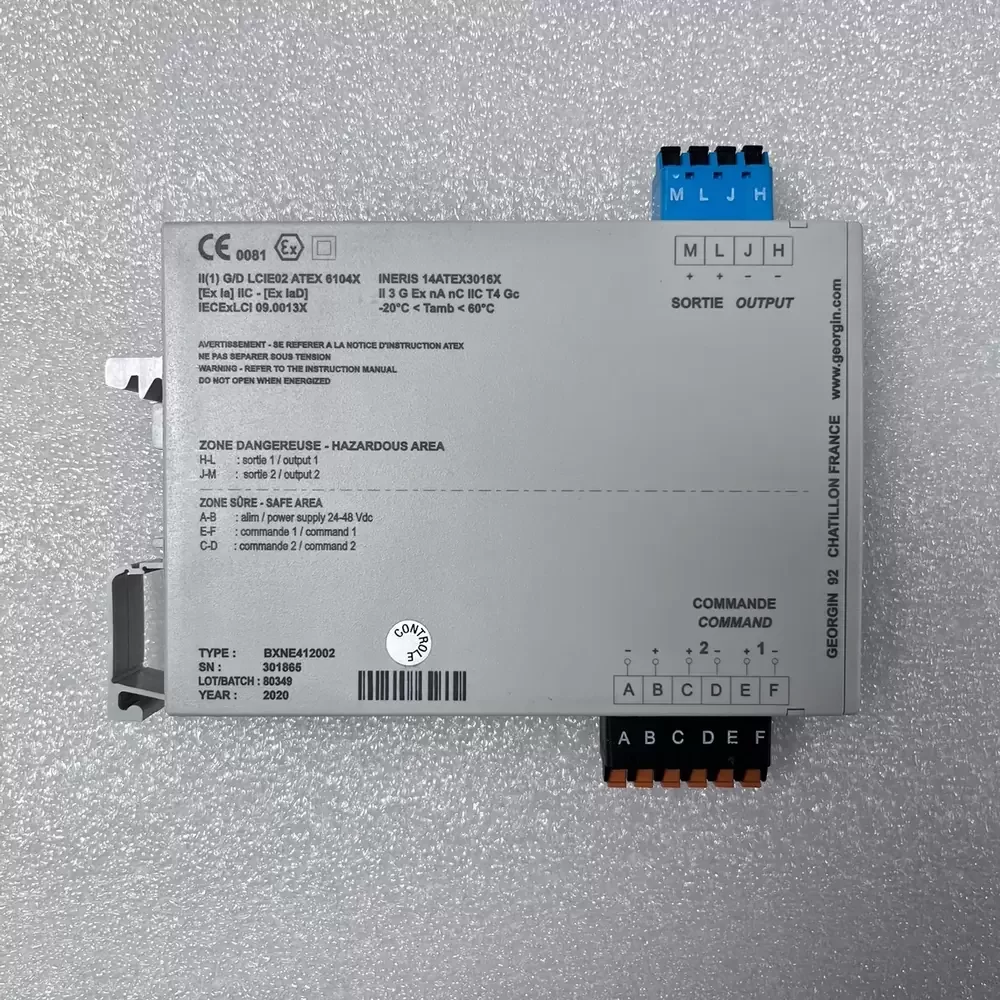

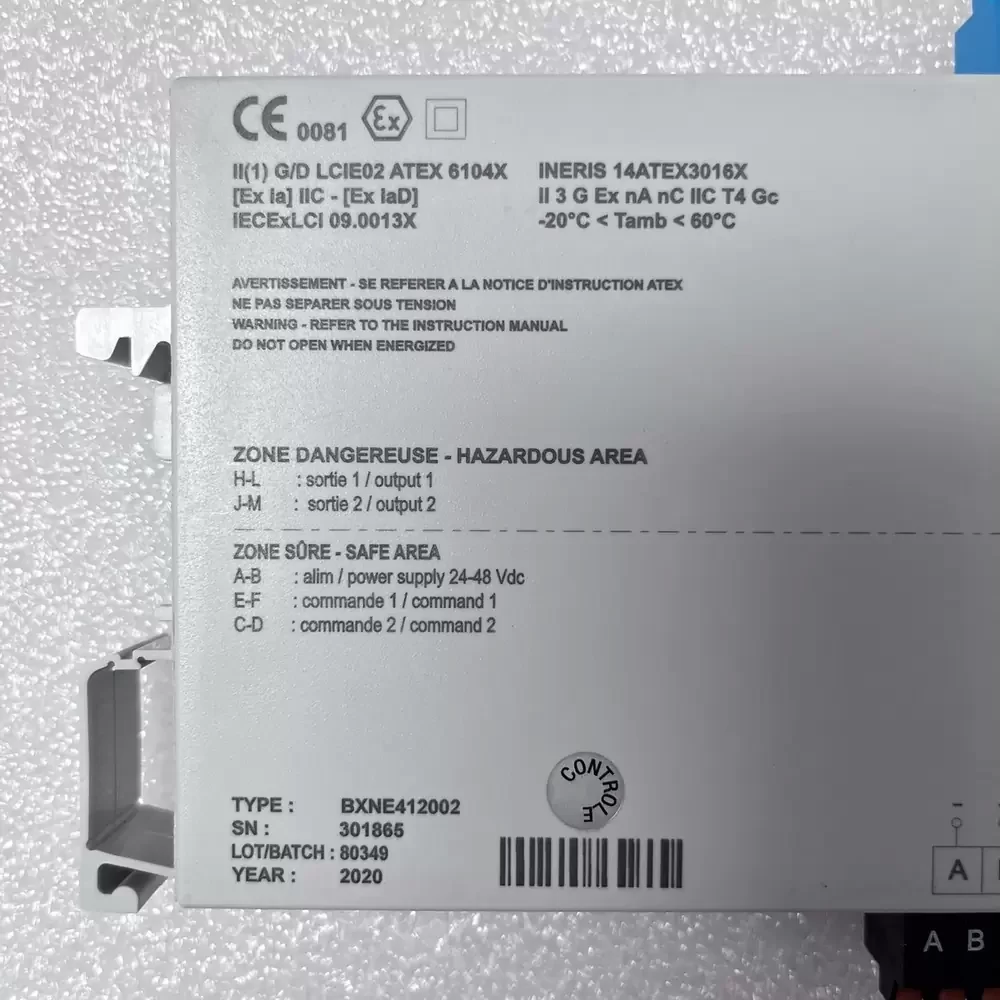

Hazardous Area Certification: ATEX, IECEx, EAC
Protection Mode: [Ex ia] IIC
Galvanic Isolation: 2500 V AC

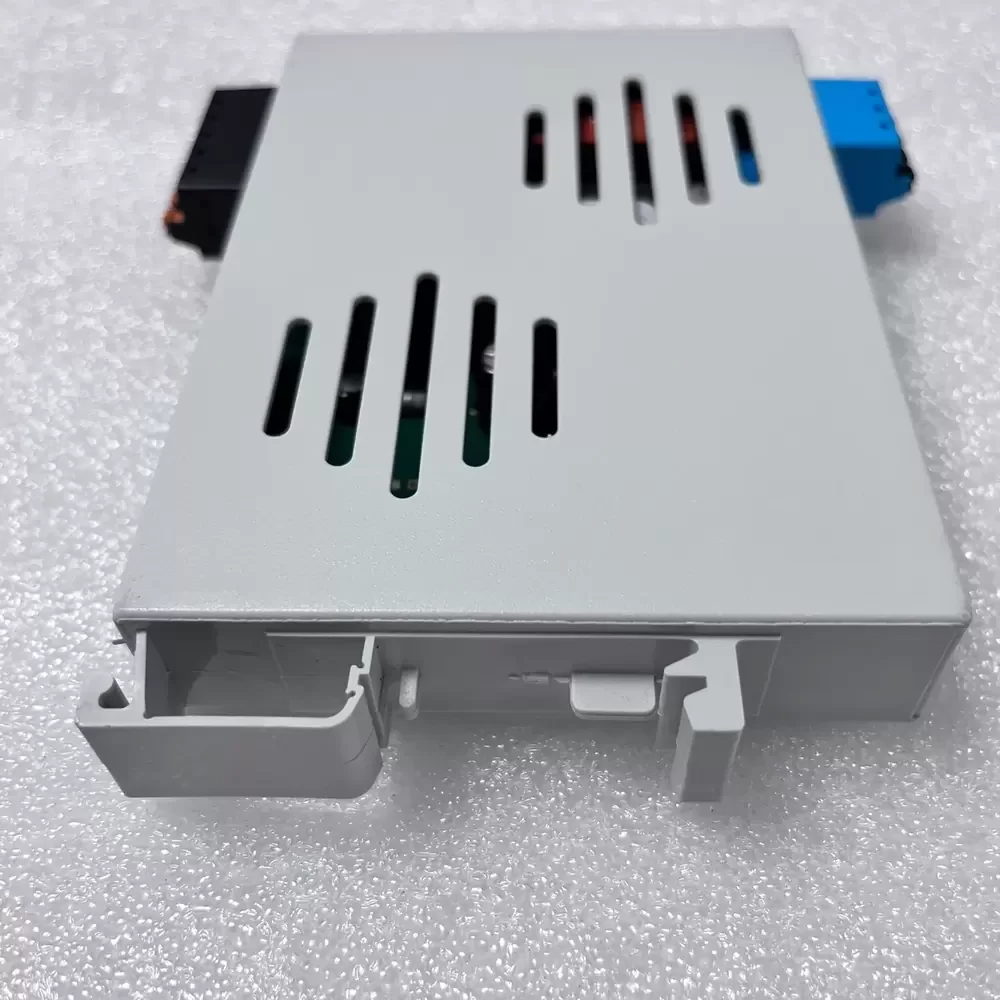

Mounting Type: DIN Rail (35 mm)
IP Rating: IP 20
Operating Temperature: -20 to +60 °C
Storage Temperature: -25 to +70 °C

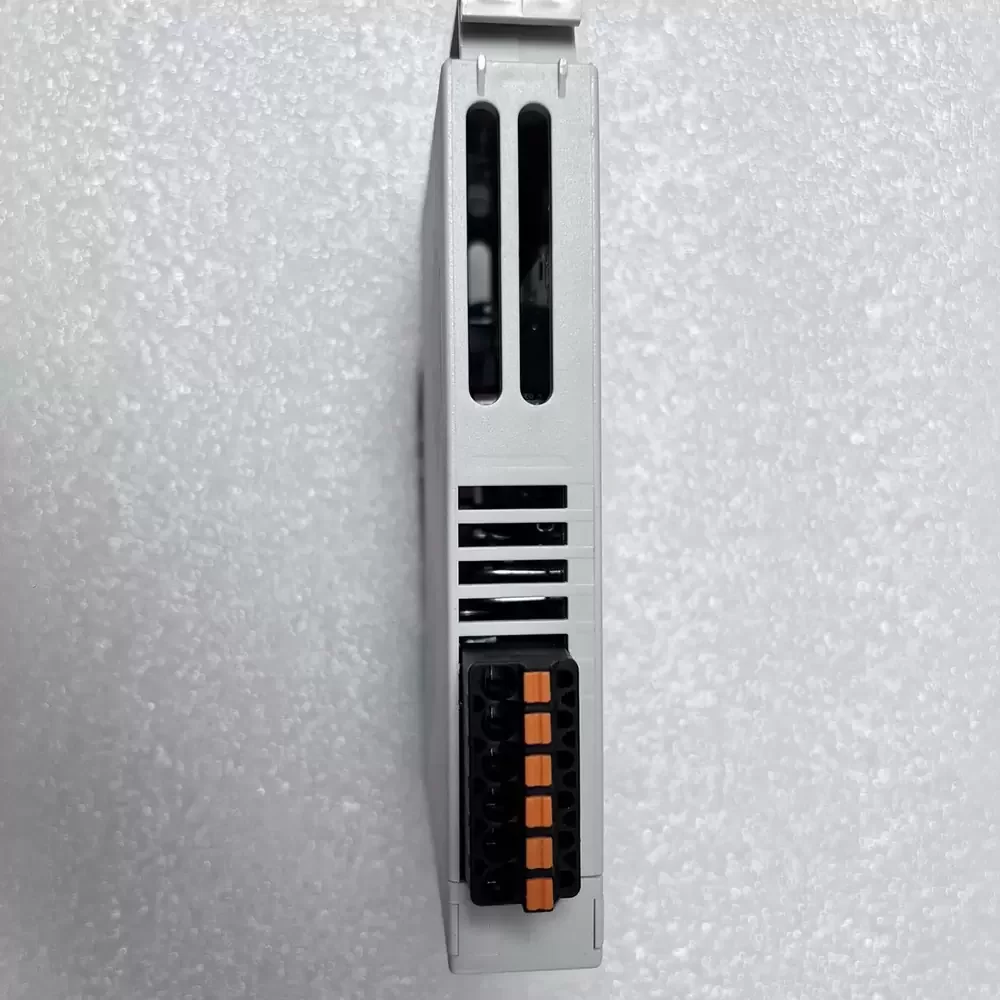

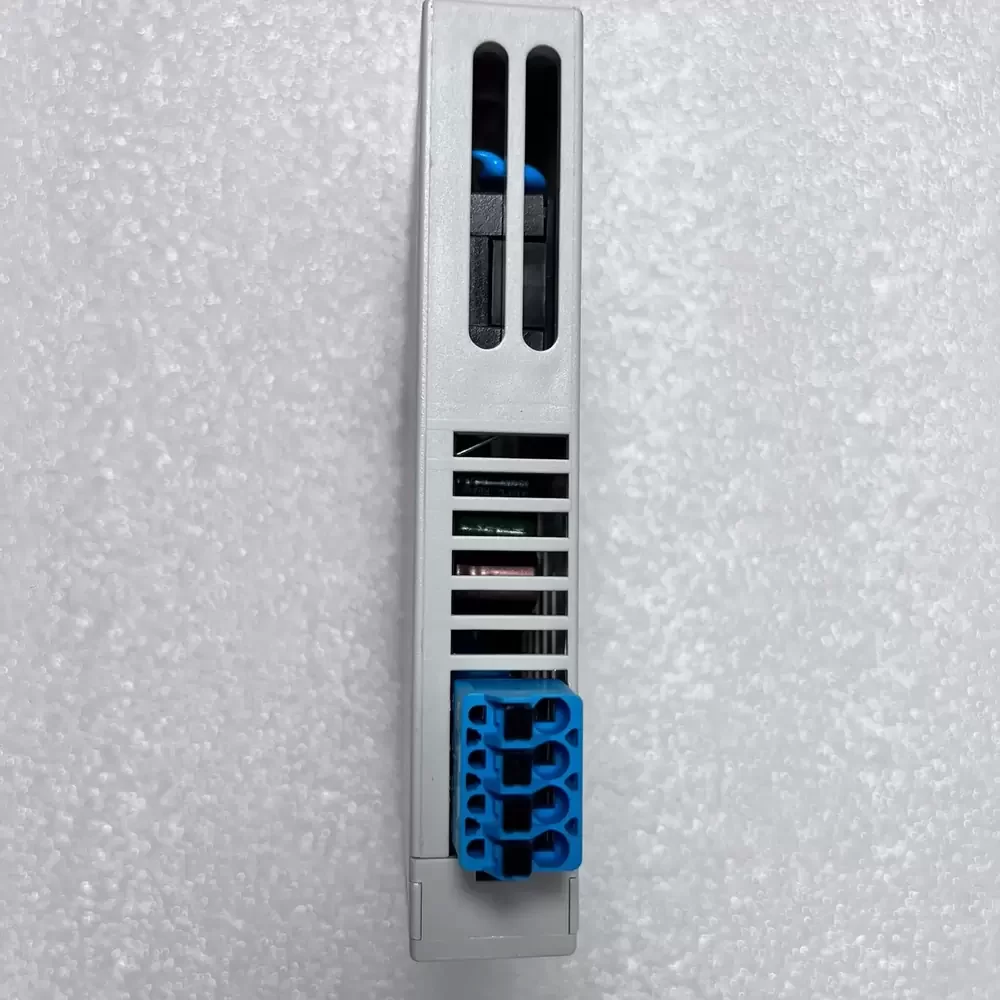

Terminal Type: Plug-In Cage Clamp
Housing Material: Polycarbonate
Width: 45 mm
Weight: 200 g

BXNE412002 Applications
Primary applications include integration into petrochemical refinery control systems, offshore oil platform instrumentation, and pharmaceutical chemical processing plants. Deployed within gas detection networks and hazardous area sensor power loops requiring ATEX-certified galvanic isolation for intrinsically safe solenoid valves and transmitters.
