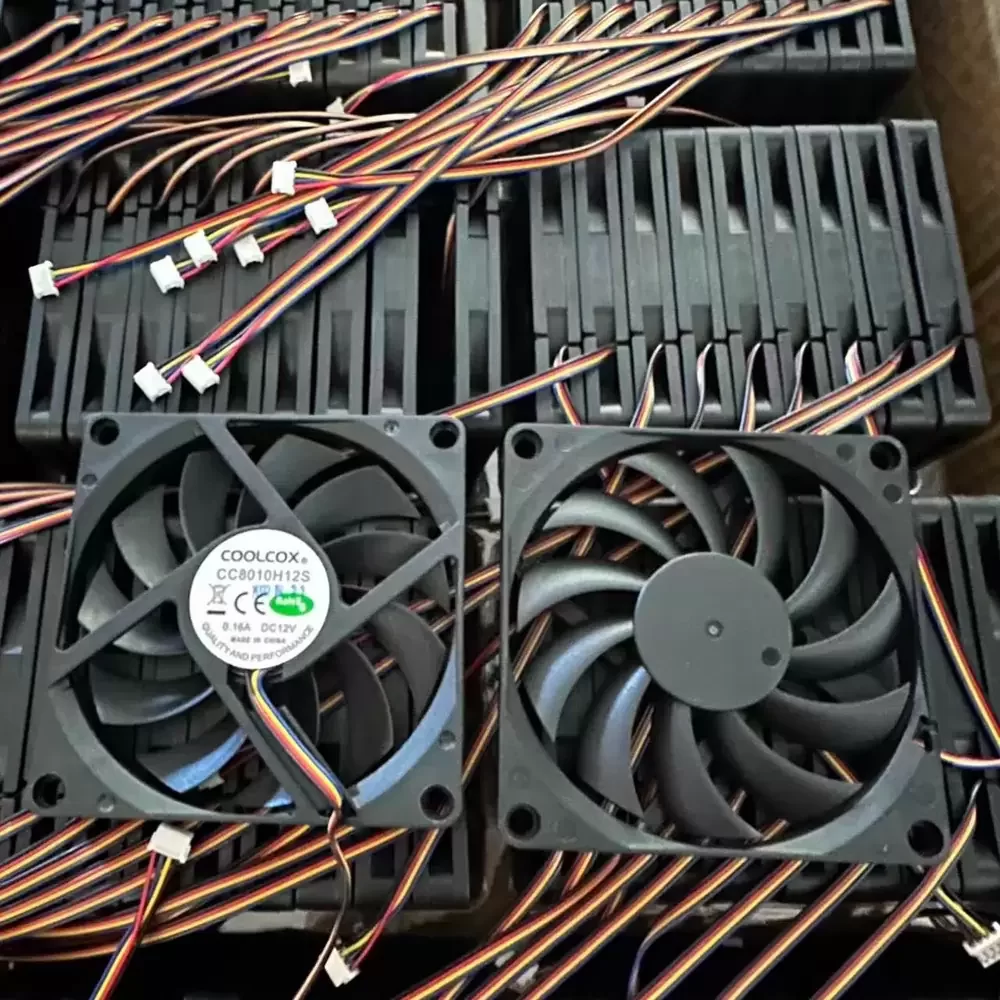

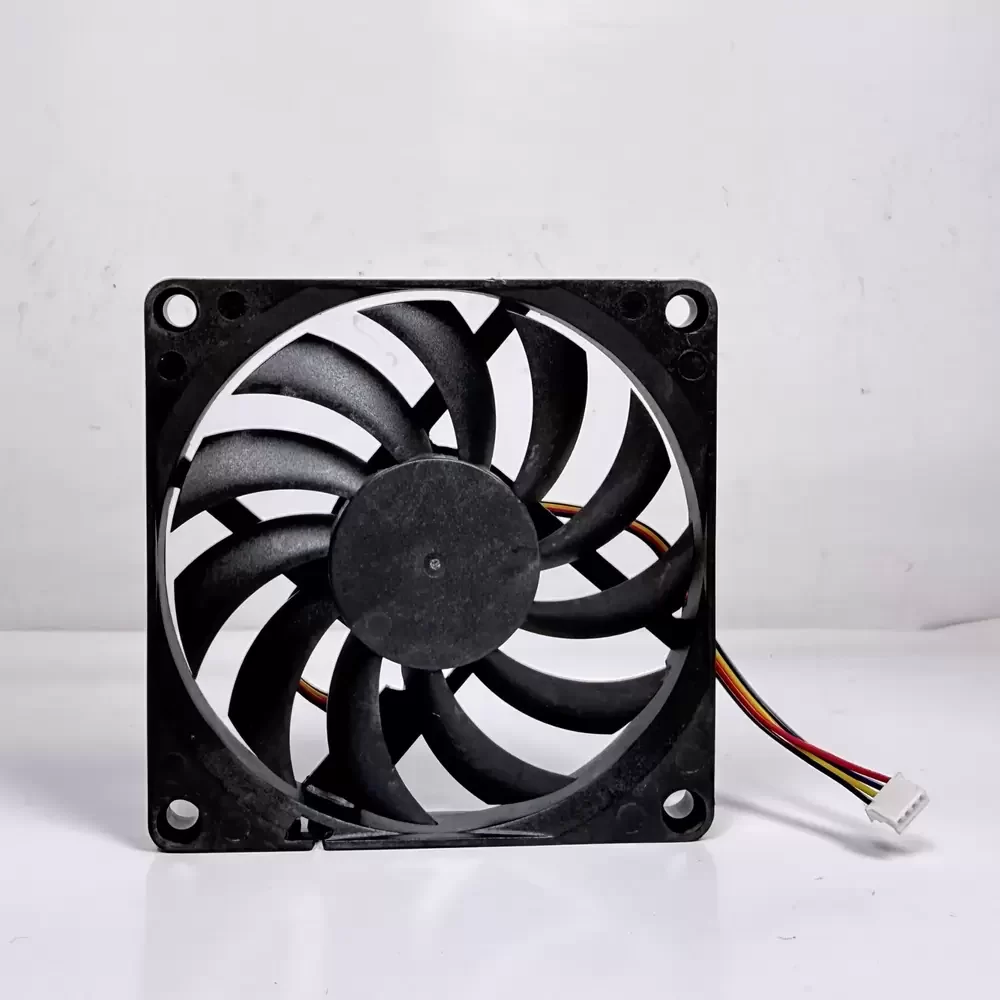

CC8010H12S COOLCOX 12VDC 80x80x10mm PWM Slim Axial Fan

Description

COOLCOX CC8010H12S is a 12VDC 80x80x10mm Axial Fan optimized for space-constrained thermal management in compact enclosures. This DC-powered cooling solution features an ultra-slim 10mm profile designed to minimize thermal impedance in high-density electronic assemblies. Utilizing a precision-engineered motor and sleeve bearing architecture, it ensures structural rigidity while maintaining a low acoustic profile. The 4-wire PWM control allows for dynamic speed adjustment between 2000-4000 RPM, drawing a nominal 0.16A. This fan is an ideal replacement fan for industrial controllers and DIY projects requiring efficient heat dissipation without the bulk of standard frames.

Model Number: CC8010H12S
Brand: COOLCOX
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 0.16A
Power: 1.92W
Rated Speed: 2000 – 4000 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 28.5 CFM (48.4 m³/h / 0.81 m³/min)
Max. Static Pressure: 2.85 mmH2O (27.95 Pa / 0.11 inH2O)
Dimensions: 80x80x10mm
Weight: 42g
Life Expectancy: 30,000 Hours at 40C
Speed Control: PWM (4-wire)
Termination: 1.25mm pitch 4-pin connector
Lead Wire Length: 150mm
Housing Material: UL94V-0 Thermoplastic PBT
Blade Material: UL94V-0 Thermoplastic PBT
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Protection: Locked Rotor Protection, Reverse Polarity Protection

CC8010H12S Applications
1. Ultra-slim 1U Network Appliances: The 10mm depth allows for integration into low-profile rackmount hardware where standard 25mm fans cannot fit, overcoming high system impedance in tight air channels.
2. Industrial HMI Panels: Provides low-vibration cooling for sensitive touch-screen interfaces and embedded logic boards in factory automation environments.
3. Compact DVR/NVR Systems: Ideal replacement fan for surveillance recorders requiring quiet, continuous operation and PWM-regulated thermal control.
