Description
The Chen Feng CF12038A3HS is a robust AC axial fan engineered for high-voltage industrial applications requiring consistent thermal management and reliability. Designed with a durable die-cast aluminum frame architecture, this unit operates at a rated 380VAC, delivering optimized airflow to mitigate thermal impedance in densely packed enclosures. The motor assembly features a specialized impedance-protected stator design that ensures stable torque delivery across 50/60Hz frequencies, while the aerodynamic thermoplastic impeller reduces turbulence and noise generation. Constructed to maintain structural rigidity under continuous operation, the CF12038A3HS is an ideal solution for maintaining equilibrium in critical electrical cabinets and machinery. Its simplified 2-wire termination facilitates seamless integration into existing high-voltage industrial circuits.
Model Number: CF12038A3HS
Brand: CHEN FENG
Product Type: AC Axial Fan
Rated Voltage: 380 VAC
Frequency: 50/60 Hz
Voltage Range: 342 – 418 VAC
Rated Current: 0.08 A
Input Power: 21.0 W
Rated Speed: 2600 / 2900 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 95.0 CFM (161.4 m³/h / 2.69 m³/min)
Max. Static Pressure: 7.62 mmH₂O (74.7 Pa / 0.30 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 530 g
Life Expectancy: 30,000 Hours at 25°C
Noise Level: 42 / 45 dBA

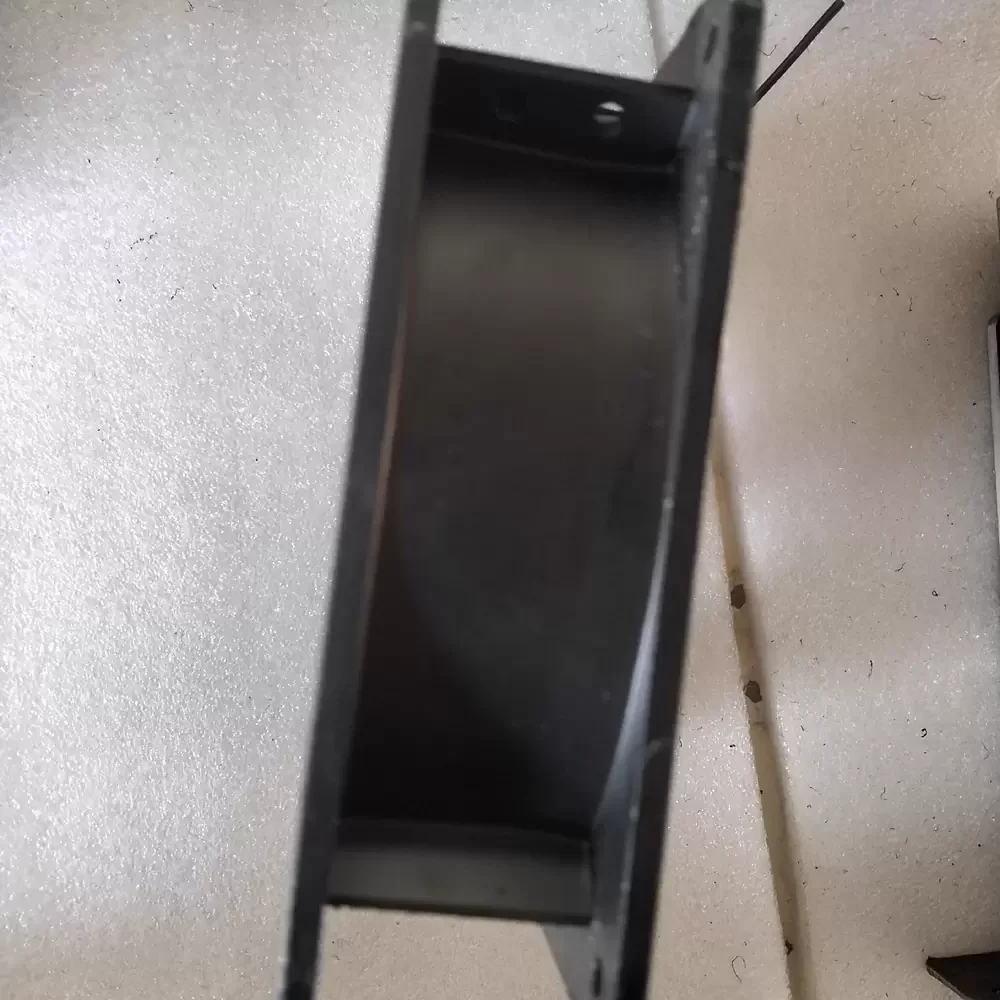

Frame Material: Die-Cast Aluminum Alloy
Blade Material: Thermoplastic PBT (UL94V-0)
Ingress Protection: IP20
Insulation Class: Class B
Motor Type: Shaded Pole Induction Motor

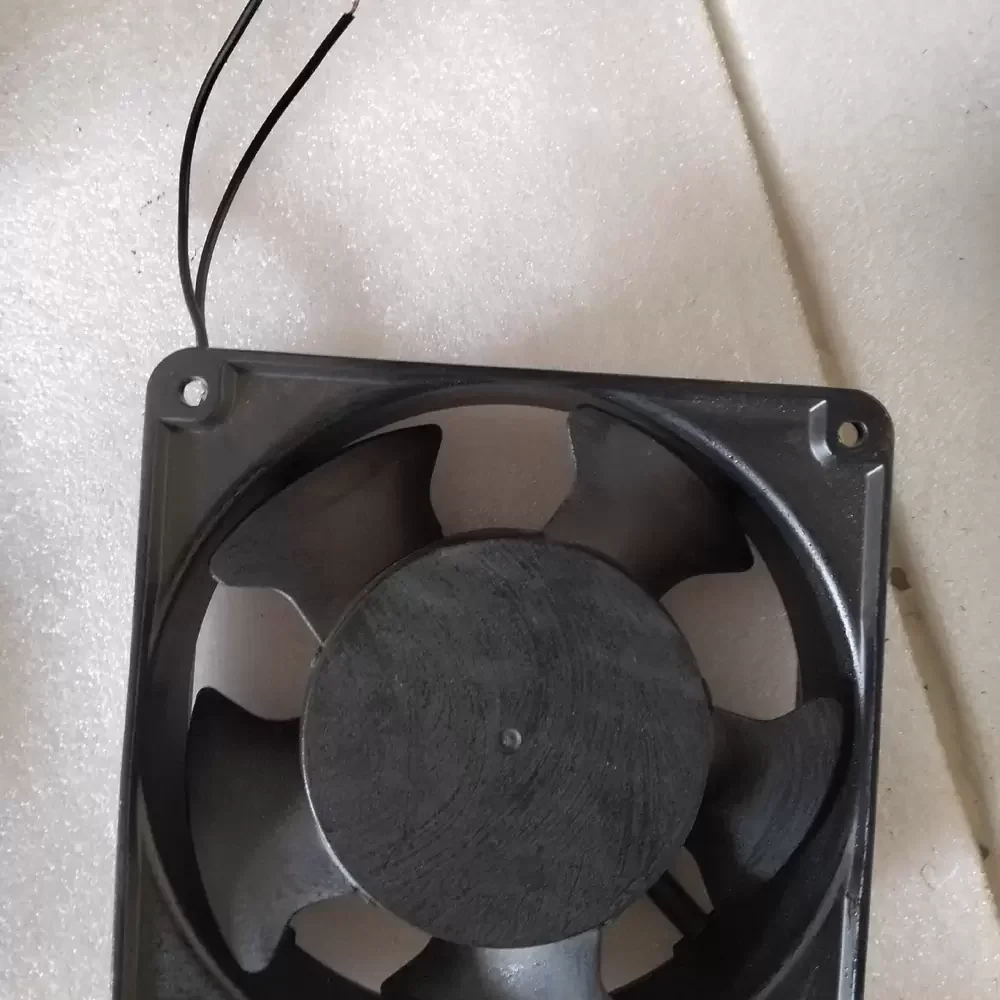

Termination: 2-Wire Lead (300mm)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Vertical or Horizontal
Protection: Impedance Protected
Dielectric Strength: 1500VAC for 1 Minute
This cooling solution is specifically calibrated for high-voltage industrial environments such as power distribution cabinets, CNC machinery, and heavy-duty automation equipment. The CF12038A3HS excels in venting heat from server racks and telecommunications infrastructure where 380V power sources are standard. By ensuring continuous air exchange, the CF12038A3HS protects sensitive components from overheating in manufacturing plants and control panels, ensuring operational continuity in demanding settings.
