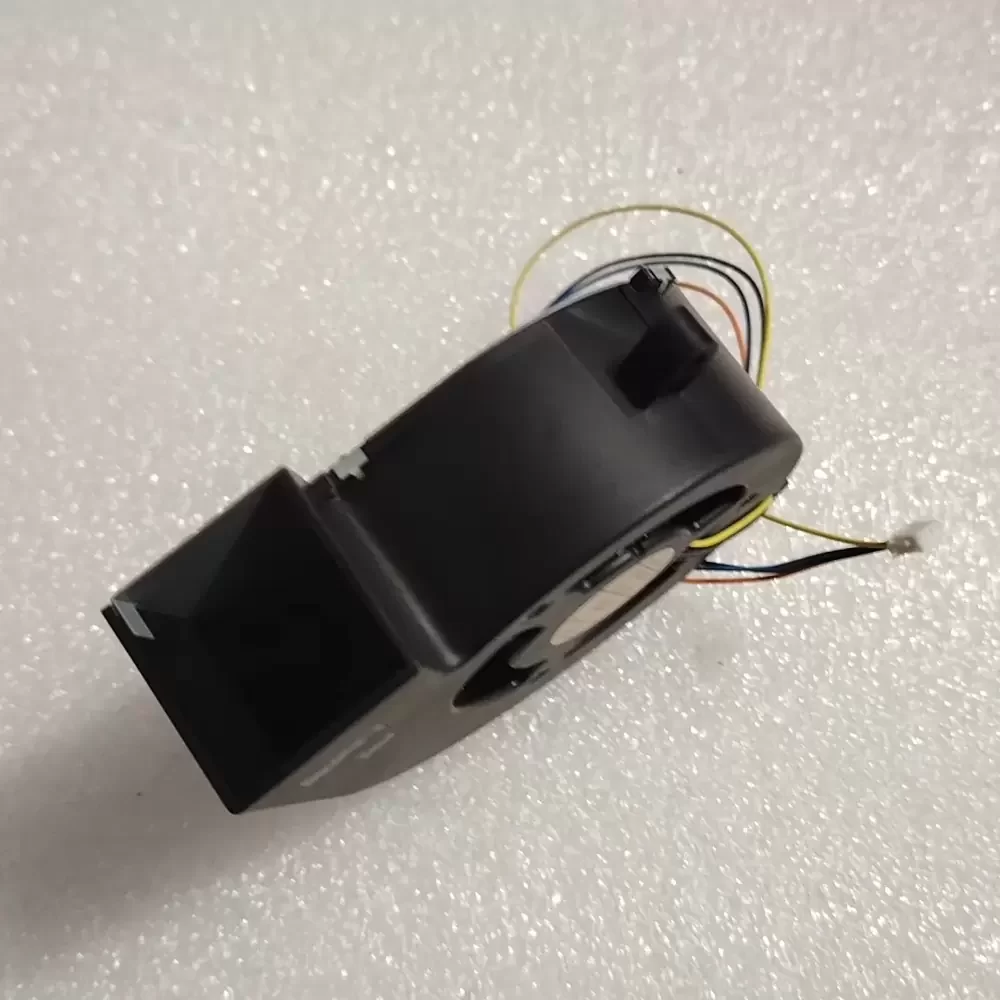

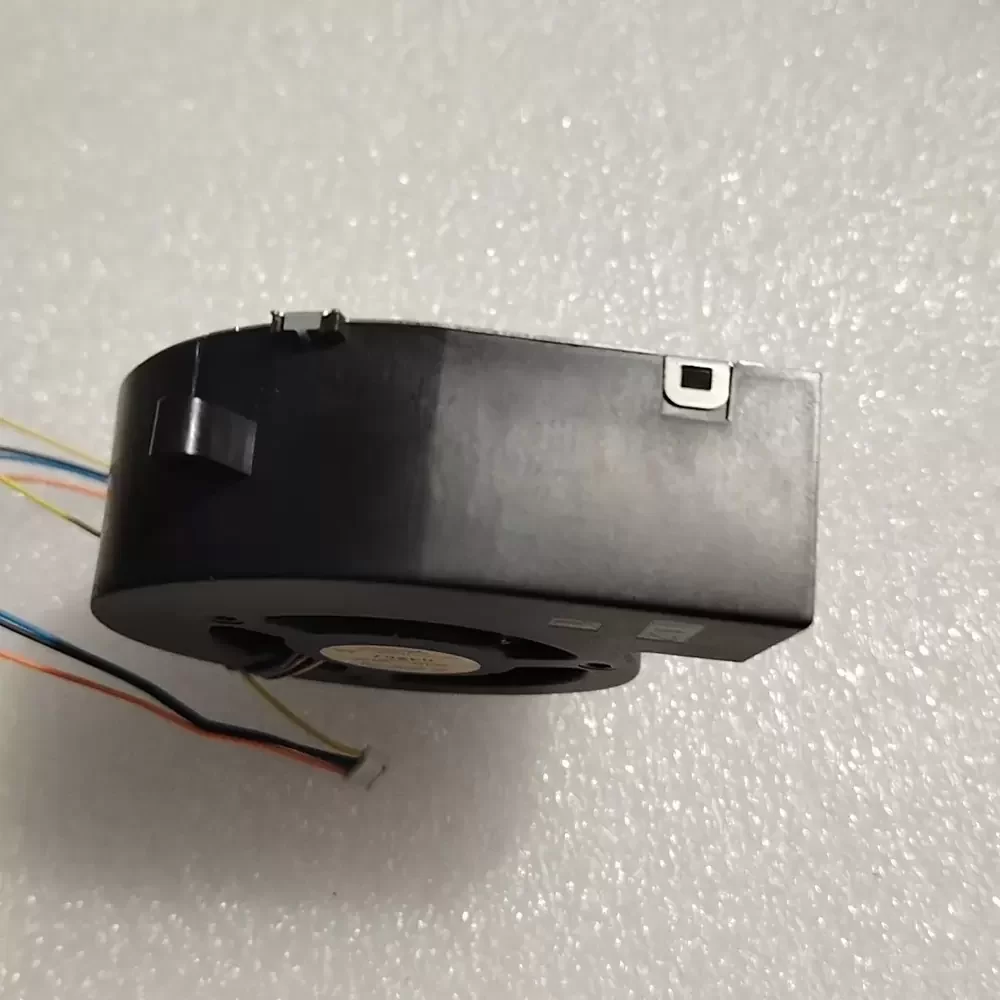

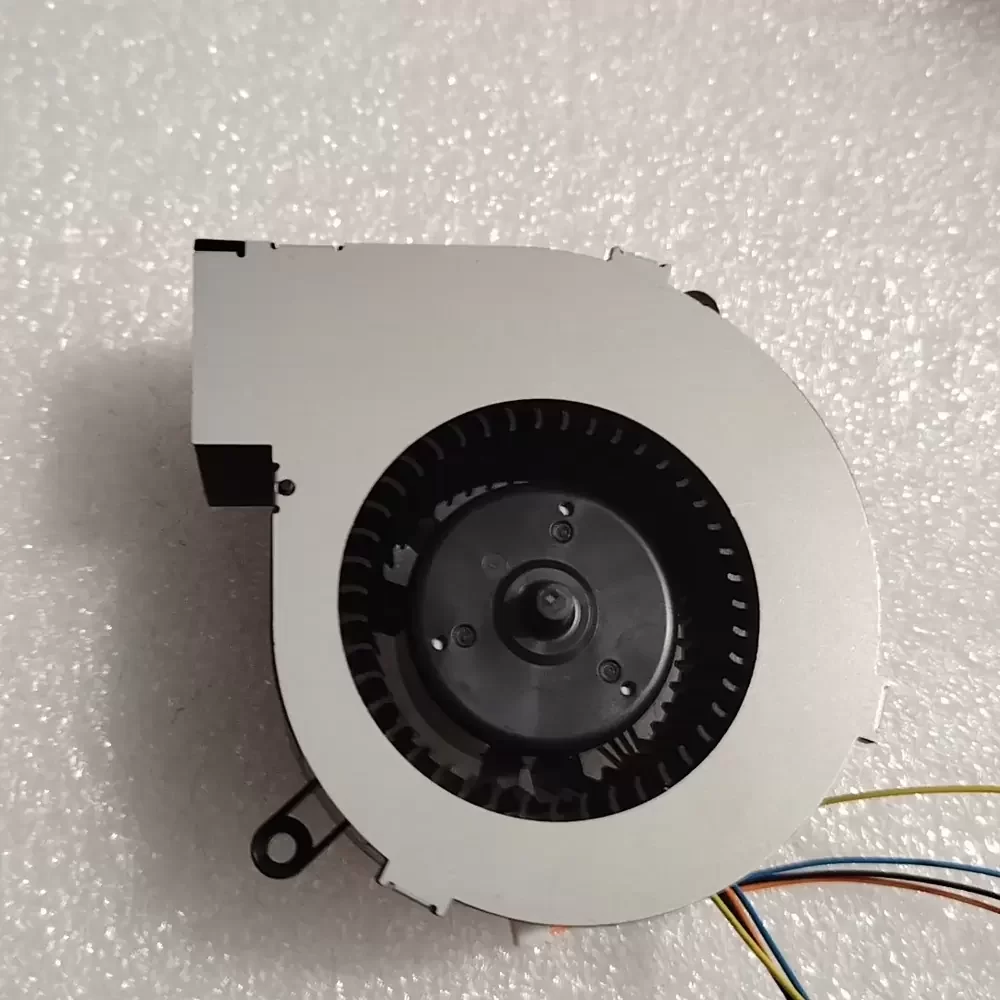

CY-8028L-303 Toshiba 12VDC 80x80x28mm Projector Blower Fan

Description

The Toshiba CY-8028L-303 is a high-precision DC centrifugal blower fan engineered for critical thermal management in projection systems and compact industrial enclosures. Operating at a rated 12VDC with a 500mA current draw, this 80x80x28mm cooling solution delivers concentrated airflow to dissipate heat from internal components effectively. The CY-8028L-303 features a specialized 4-wire interface, enabling advanced pulse width modulation (PWM) for dynamic speed control and real-time tachometer feedback. This industrial cooling fan is optimized for high static pressure requirements, ensuring consistent performance in environments with significant airflow resistance, making it an essential component for maintaining optimal operating temperatures in high-lumen equipment.

Model Number: CY-8028L-303
Brand: Toshiba
Product Type: Centrifugal Blower Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.50A
Power: 6.0W
Rated Speed: High Speed
Bearing Type: Dual Ball Bearing
Max. Air Flow: High Volume Centrifugal Output
Max. Static Pressure: High Static Pressure Blower Design
Dimensions: 80x80x28mm
Weight: 95g
Life Expectancy: 50,000 Hours at 40C
Speed Control: 4-Wire PWM (Pulse Width Modulation)
Feedback: Tachometer / Frequency Generator Signal
Termination: 4-Pin Connector
Housing Material: UL94V-0 PBT Plastic
Blade Material: UL94V-0 PBT Plastic
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection

The Toshiba CY-8028L-303 is primarily utilized as a dedicated thermal solution for high-end digital projectors and specialized optical equipment. In these applications, the CY-8028L-303 provides the necessary static pressure to force air through dense internal heat sinks and lamp modules. Beyond projection technology, the CY-8028L-303 is frequently integrated into medical diagnostic devices and compact server nodes where directional cooling and precise speed modulation are required to prevent component throttling.
