Description

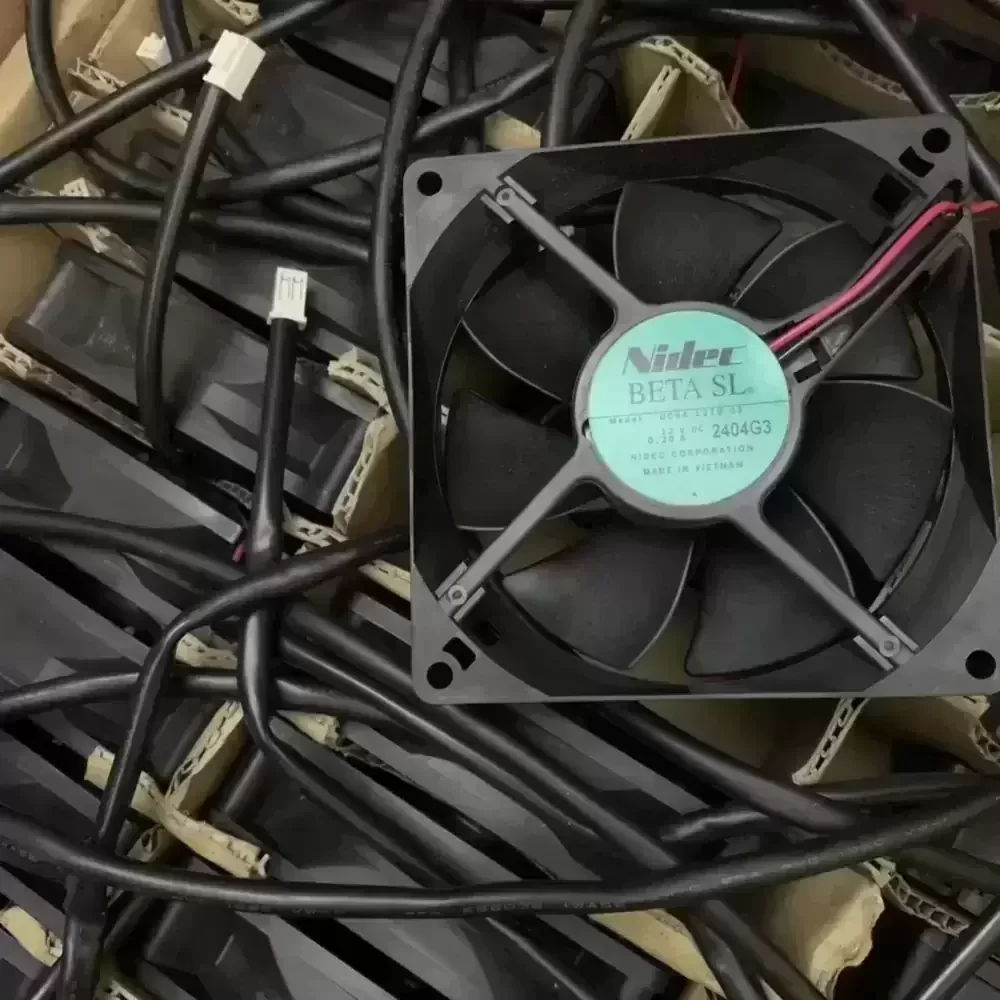

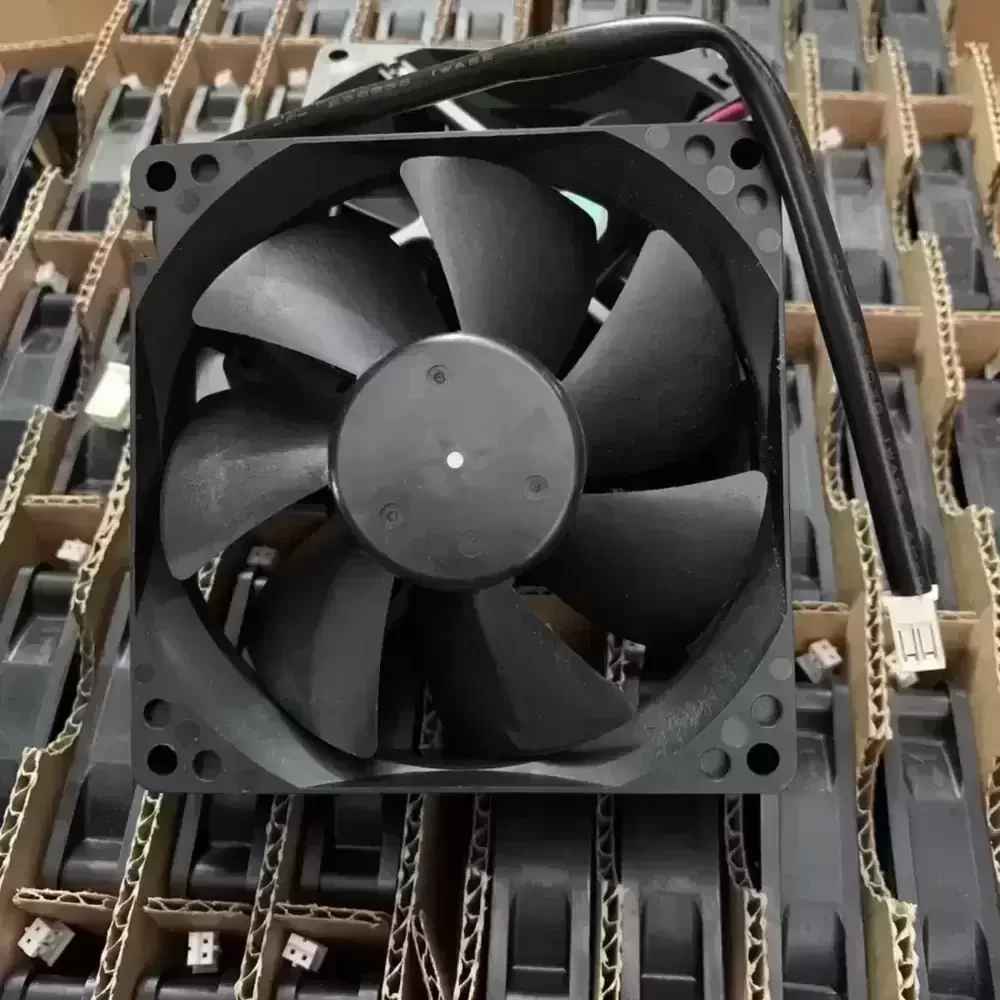

The Nidec D09A-12TU 03 is a precision-engineered Axial Fan designed for high-reliability thermal management in industrial environments. Utilizing advanced DC motor technology, this unit optimizes airflow dynamics to reduce thermal impedance within enclosed chassis such as Fuji inverters and industrial computers. The construction features a robust thermoplastic housing that ensures structural rigidity and vibration damping under continuous operation. Its aerodynamic blade profile is calibrated to deliver consistent static pressure, effectively dissipating heat from sensitive power electronics while maintaining operational stability. This component represents a critical solution for maintaining system longevity in demanding automation sectors.
Model Number: D09A-12TU 03
Brand: Nidec
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.20 A
Power Consumption: 2.40 W
Rated Speed: 2900 RPM
Bearing Type: Maintenance-Free Ball Bearing
Max. Air Flow: 52.0 CFM (88.3 m³/h / 1.47 m³/min)
Max. Static Pressure: 3.40 mmH₂O (33.3 Pa / 0.13 inH₂O)
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Life Expectancy: 60,000 Hours at 40°C
Noise Level: 34.0 dB(A)
Housing Material: Polybutylene Terephthalate (PBT) UL94V-0
Blade Material: Polybutylene Terephthalate (PBT) UL94V-0
Termination: 3-Wire Lead with Connector
Speed Control: Tachometer Output (Frequency Generator)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Insulation Resistance: 10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Mounting Orientation: Any
Ingress Protection: IP20
Application: Fuji Inverter Cooling, Industrial PC
This cooling solution is specifically engineered for integration into power electronics systems, including variable frequency drives and the Fuji Inverter series. The D09A-12TU 03 provides essential airflow for industrial computers (IPCs) operating in factory automation environments where thermal regulation is paramount. By preventing thermal throttling in control cabinets and server racks, the D09A-12TU 03 ensures the continuous performance of mission-critical hardware used in CNC machinery, telecommunications infrastructure, and heavy-duty power supply units.
