Description

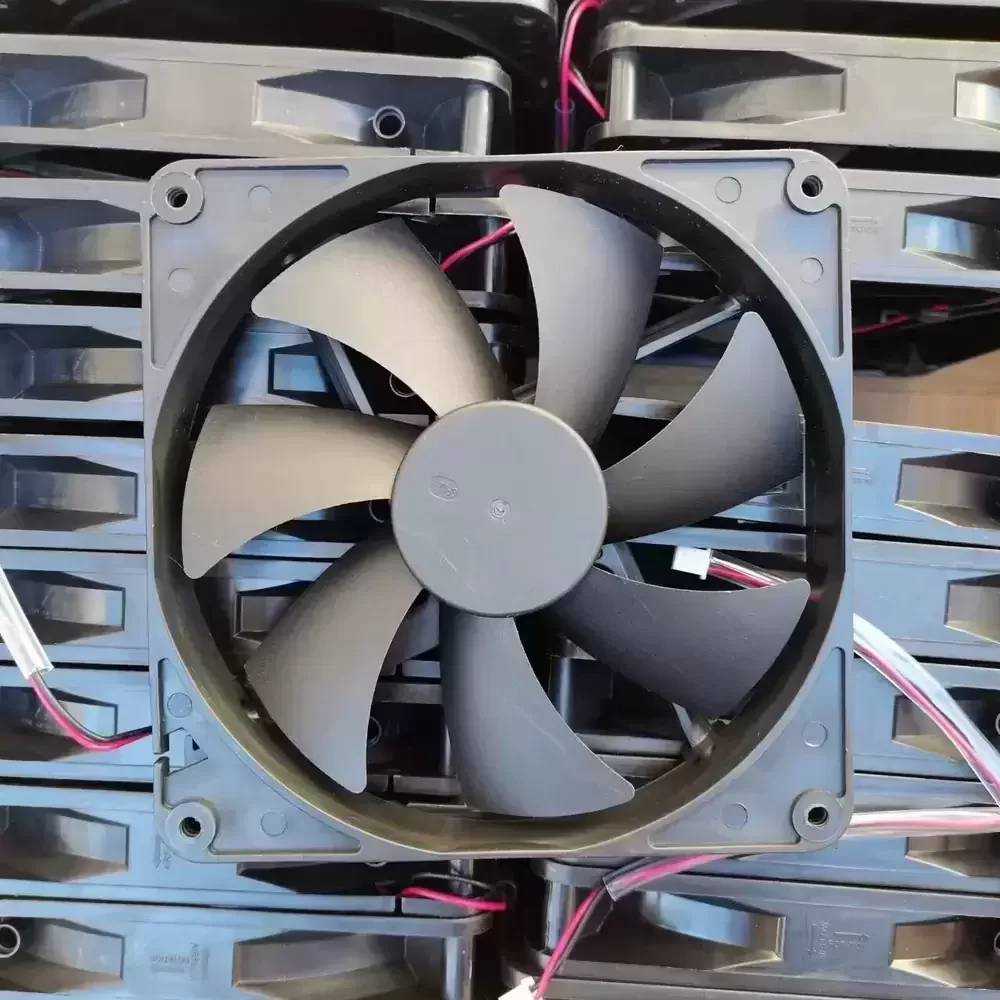

The Y.L.FAN D14BH-12 is a high-capacity DC axial fan engineered for demanding thermal management applications requiring substantial airflow volume. Manufactured by Y.L.FAN Electronics, this unit integrates advanced motor technology with a precision-balanced impeller design to optimize aerodynamic efficiency while maintaining structural rigidity under load. The fan utilizes a hydraulic bearing system, which offers a superior balance between longevity and acoustic performance compared to standard sleeve bearings, significantly reducing friction and thermal impedance during operation. Designed for continuous duty cycles, the D14BH-12 delivers robust cooling performance within a standard 140mm frame, making it an ideal solution for systems where heat dissipation density is a critical factor.
Model Number: D14BH-12
Brand: Y.L.FAN
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 8.0 – 13.2 VDC
Rated Current: 0.70 A
Power: 8.4 W
Rated Speed: 2400 RPM ±5%
Bearing Type: Hydraulic Bearing
Max. Air Flow: 98 CFM (166.5 m³/h / 2.77 m³/min)
Max. Static Pressure: 4.69 mmH₂O (46 Pa / 0.18 inH₂O)
Dimensions: 140 x 140 x 25 mm
Mounting Hole Distance: 125 mm
Weight: 160 g
Life Expectancy: 50,000 Hours
Noise Level: 37 dB(A)
Termination: 2-Wire Lead with 2.5 Interface
Wire Length: 25 cm
The D14BH-12 is specifically calibrated for integration into high-wattage power supply units and computer chassis environments where internal component density restricts passive cooling. Its high airflow profile makes the D14BH-12 suitable for server rack ventilation, industrial automation control cabinets, and telecommunications equipment requiring reliable forced convection. Additionally, the D14BH-12 is frequently deployed in custom electronic enclosures and workstation builds to prevent thermal throttling of sensitive processors and power regulation modules.
