Description

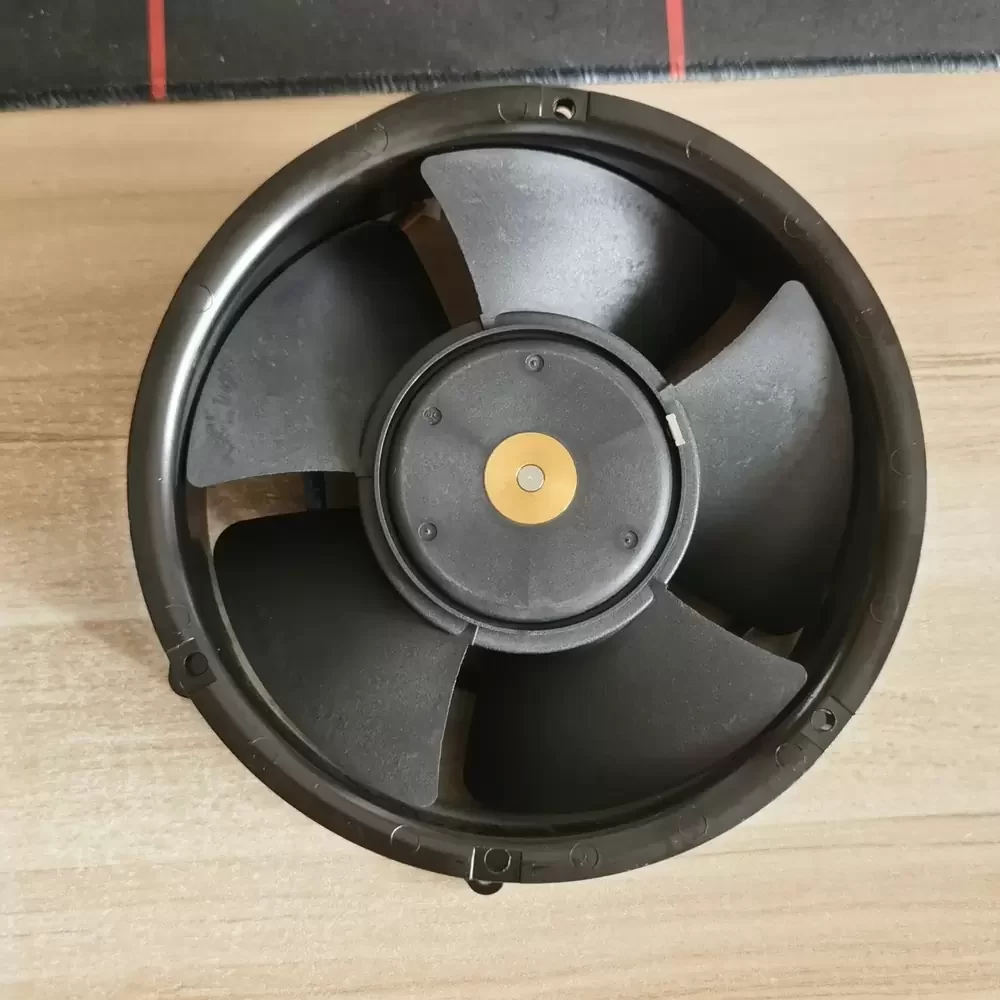

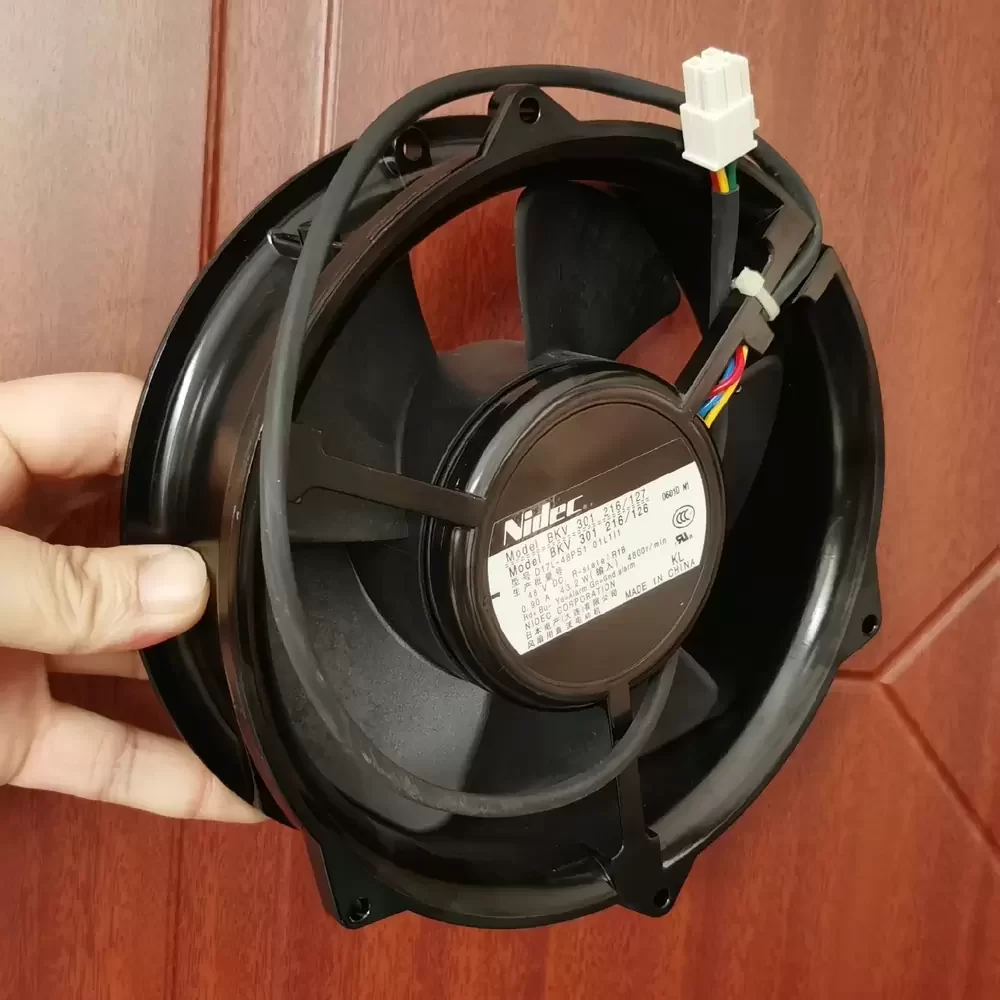

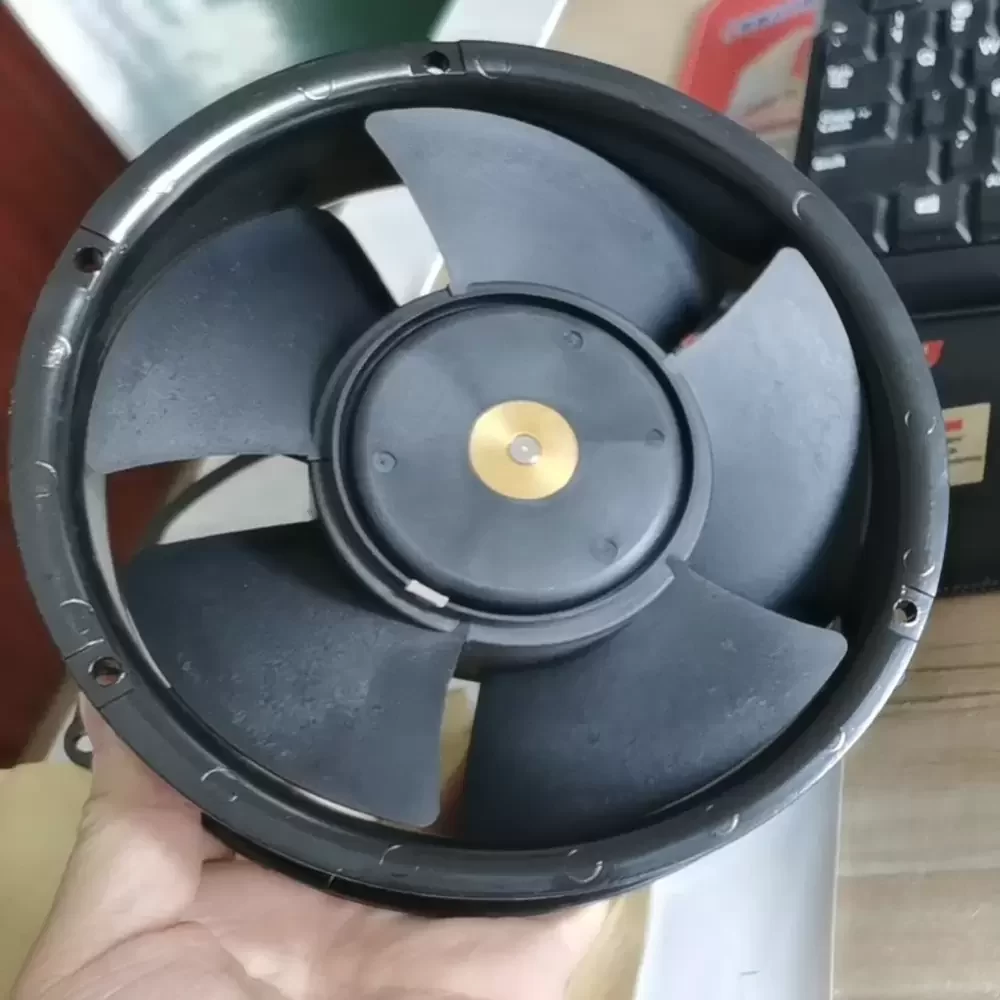

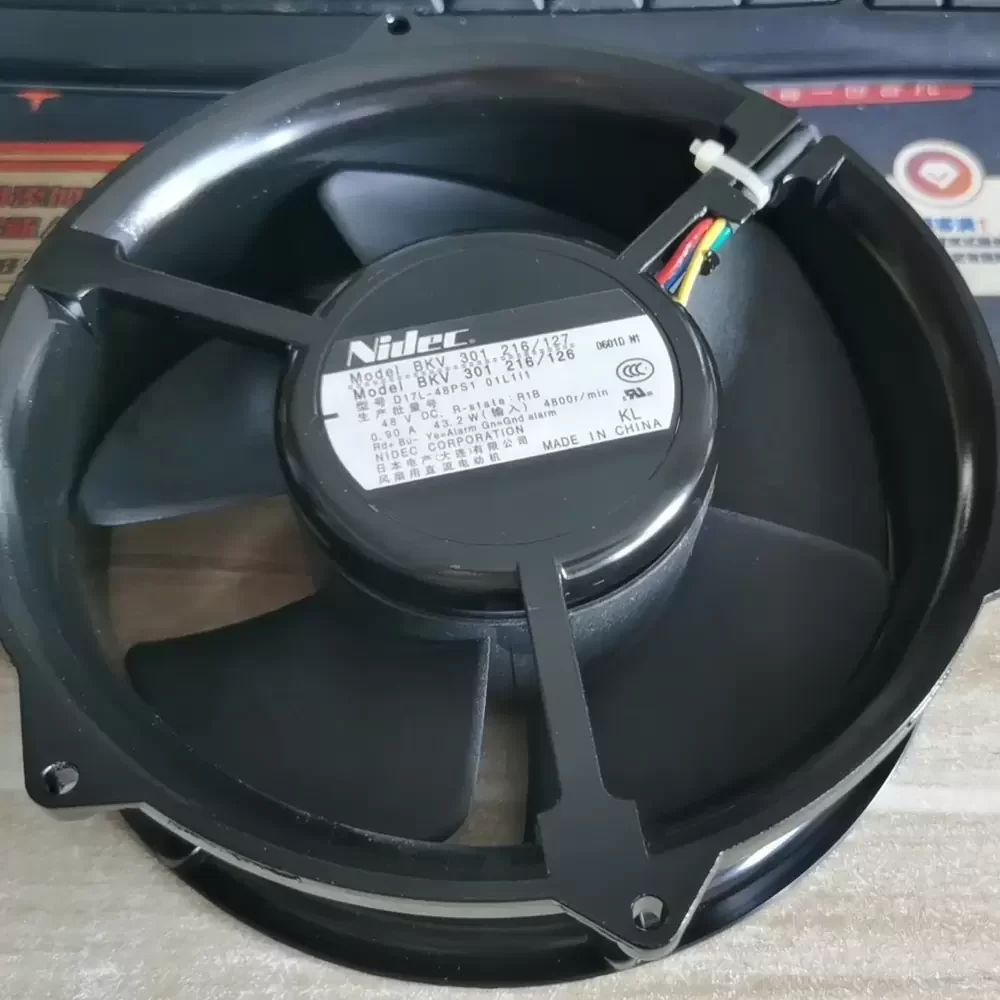

The Nidec D17L-48PS1 is a robust axial fan engineered for critical thermal management in high-density server environments and industrial machinery. Featuring a high-efficiency DC motor and a precision ball bearing system, this unit delivers exceptional airflow while maintaining structural rigidity under high-speed operation. The aerodynamic impeller design is optimized to reduce thermal impedance, ensuring reliable heat dissipation for sensitive electronic components. With integrated PWM speed control, the fan allows for dynamic performance adjustments, balancing cooling efficiency with power consumption. Its 48VDC electrical architecture supports stable operation in telecommunications and enterprise-grade power systems.
Model Number: D17L-48PS1
Brand: Nidec
Product Type: Axial Fan
Rated Voltage: 48 VDC
Rated Current: 0.90 A
Power Consumption: 43.2 W
Rated Speed: 4800 RPM
Bearing Type: Ball Bearing
Dimensions: 172 mm x 51 mm
Frame Style: Full Round
Termination: 4-Wire
Speed Control: PWM
Cooling Application: Server/Industrial
BKV301216/217 BKV301/216/126
The D17L-48PS1 is specifically designed for deployment in enterprise server racks and telecommunications infrastructure where consistent high-volume airflow is mandatory. By effectively managing thermal loads in restricted spaces, the D17L-48PS1 prevents thermal throttling in high-performance computing clusters and network switches. This model is also suitable for cooling large-scale power inverters and CNC control cabinets requiring reliable continuous operation.
