Description

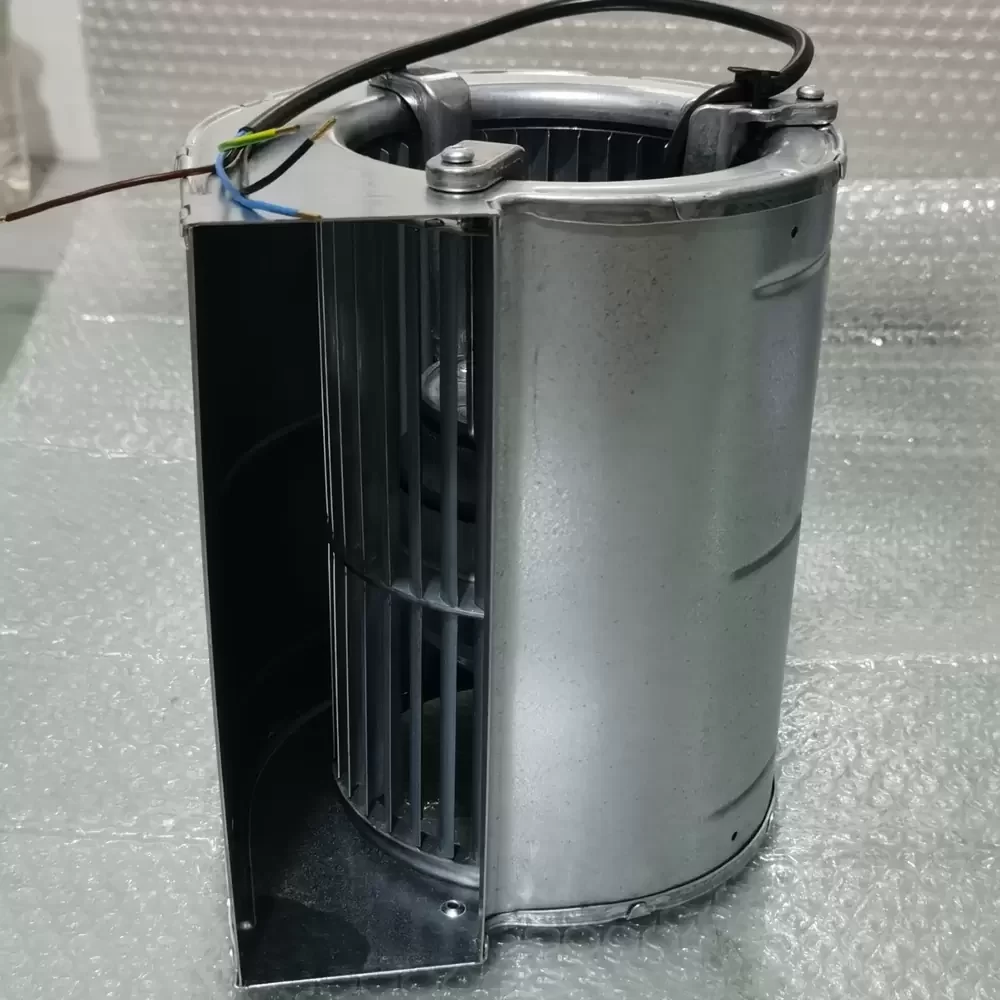

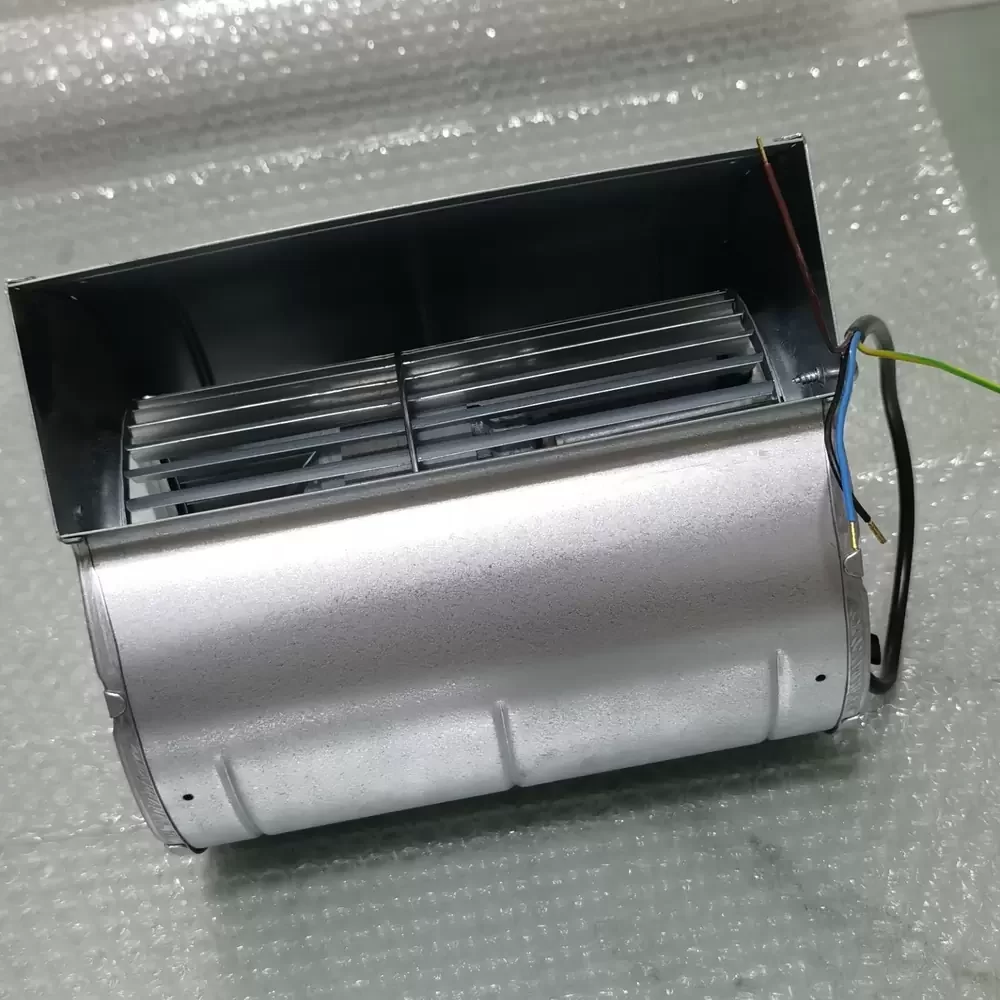

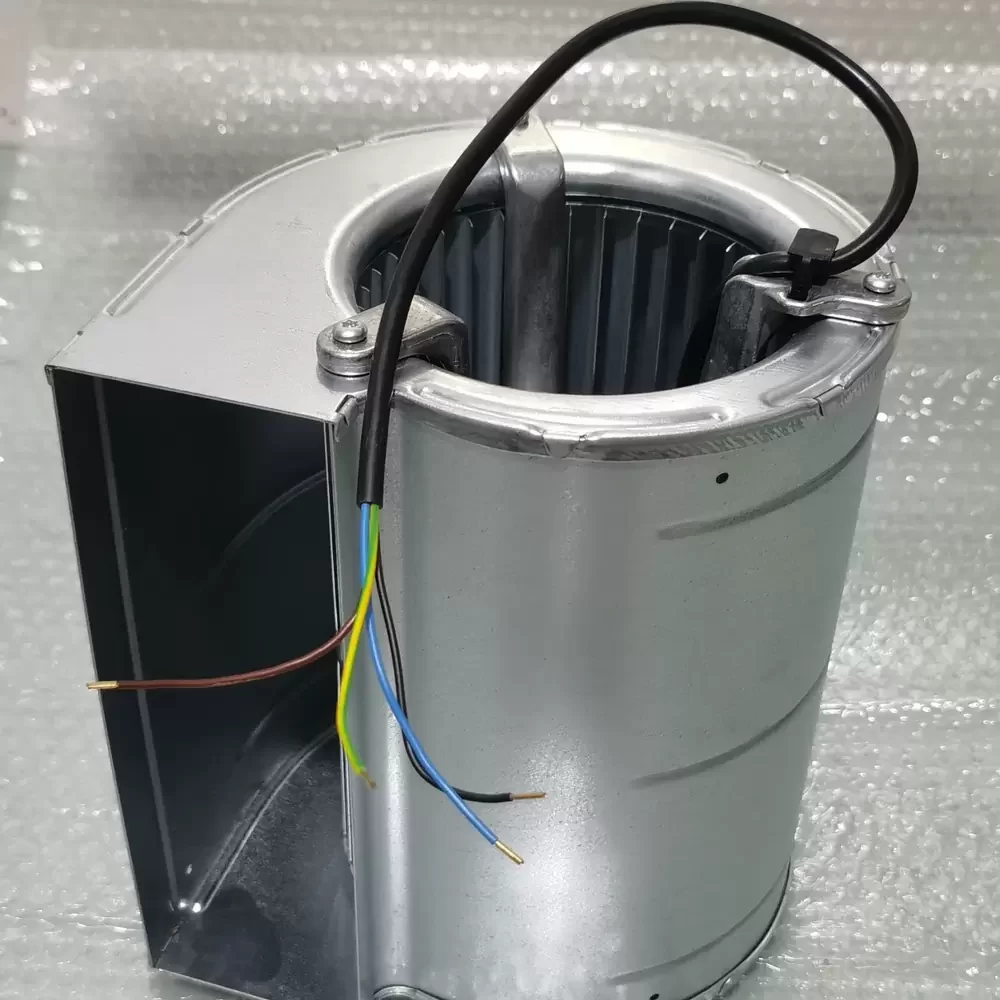

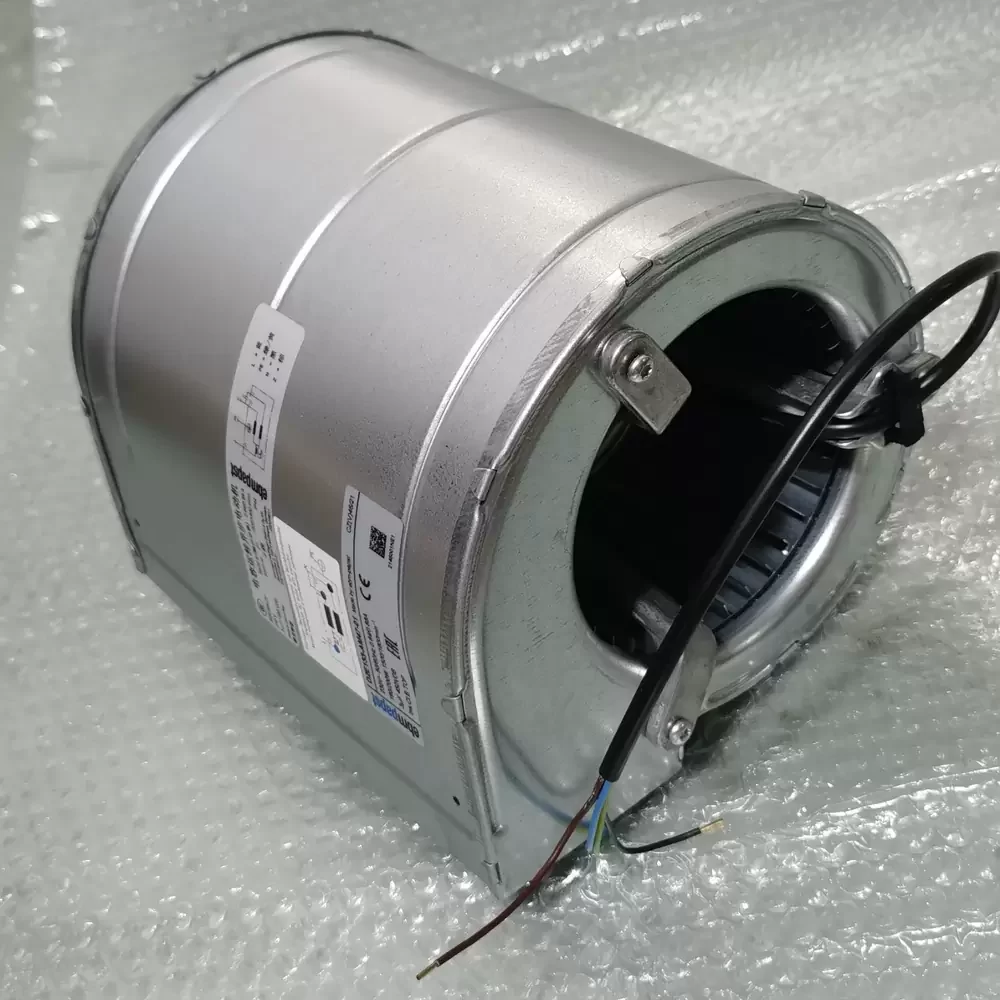

The ebm-papst D2E133-AM47-01 is a robust AC centrifugal blower engineered for high-pressure industrial cooling applications. Utilizing an advanced external rotor motor design, this unit integrates the motor directly into the impeller, optimizing aerodynamic efficiency and reducing overall structural dimensions. The fan features a dual-inlet configuration with forward-curved blades, constructed from galvanized sheet steel to ensure structural rigidity and corrosion resistance. Its bearing architecture employs maintenance-free ball bearings, ensuring long-term reliability and low thermal impedance even under continuous operation. This design minimizes vibration transmission while maximizing airflow throughput, making it an ideal solution for thermal management in demanding environments.
Model Number: D2E133-AM47-01
Brand: ebm-papst
Product Type: AC Centrifugal Blower (Dual Inlet)
Motor Type: M2E068-DF
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 0.36 / 0.40 A
Power Consumption: 80 / 95 W
Rated Speed: 1500 / 1650 RPM
Max. Air Flow: 353.1 CFM (600 m³/h / 10.0 m³/min)
Max. Static Pressure: 14.05 mmH₂O (138 Pa / 0.55 inH₂O)
Capacitor: 3 µF / 400 VDB
Impeller Diameter: 133 mm
Bearing Type: Ball Bearing
Housing Material: Galvanized Sheet Steel
Impeller Material: Hot-Galvanized Sheet Steel
Insulation Class: B
Ingress Protection: IP44
Motor Protection: Thermal Overload Protector (TOP)
Operating Temperature: -25°C to +55°C
Mounting Orientation: Any
Electrical Connection: Terminal Block / Lead Wires
Weight: 3.5 kg
Compliance: CE, CCC
This high-performance blower is specifically calibrated for applications requiring substantial static pressure and consistent airflow. The D2E133-AM47-01 is frequently utilized in variable frequency drive (VFD) cooling systems, ensuring power electronics remain within safe thermal operating limits. Additionally, the D2E133-AM47-01 serves as a critical component in clean room technology, industrial ventilation units, and server rack cooling assemblies where space is constrained but high air volume is mandatory.
