Description

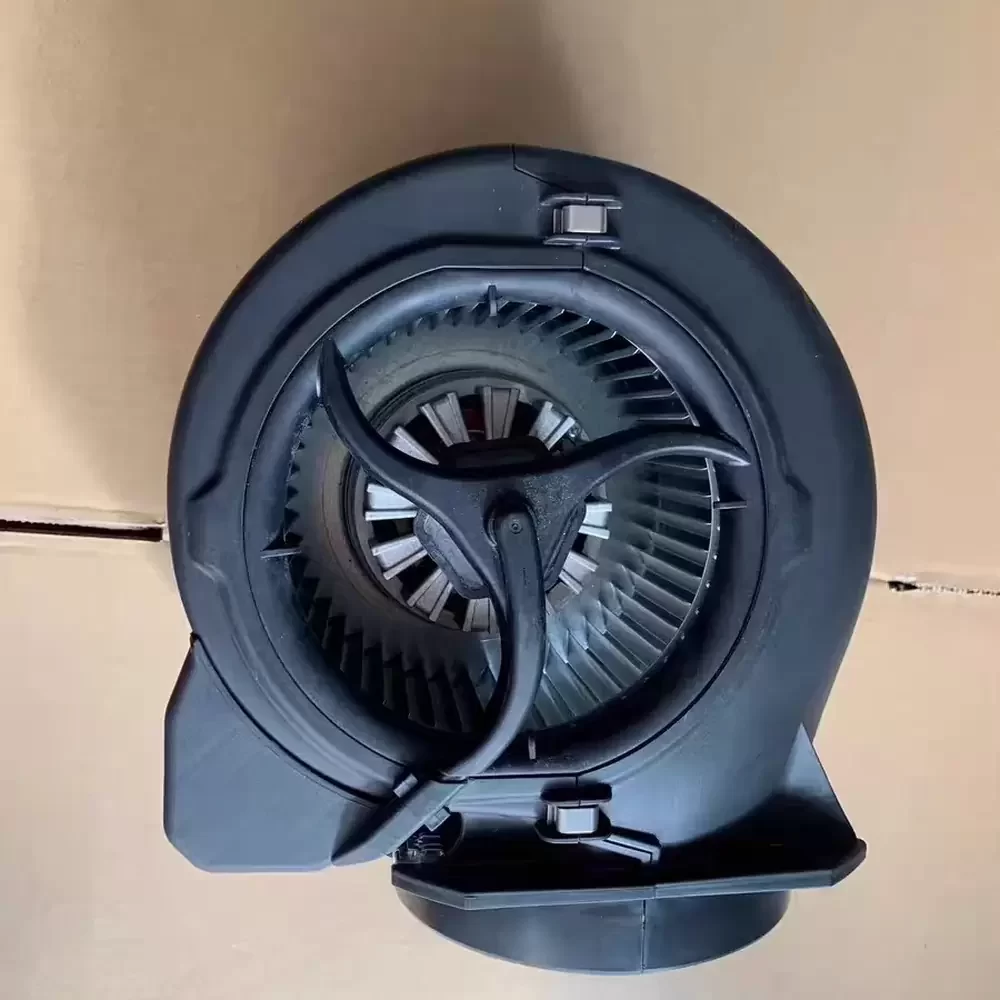

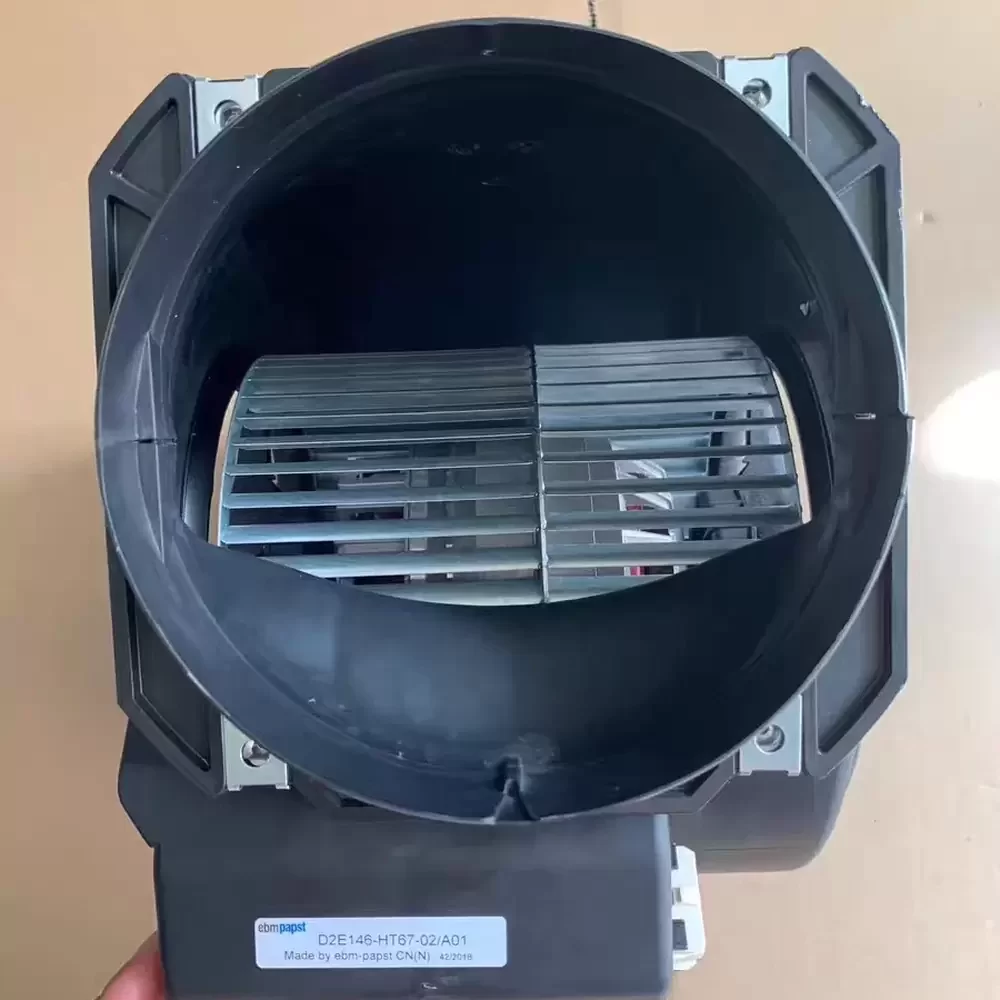

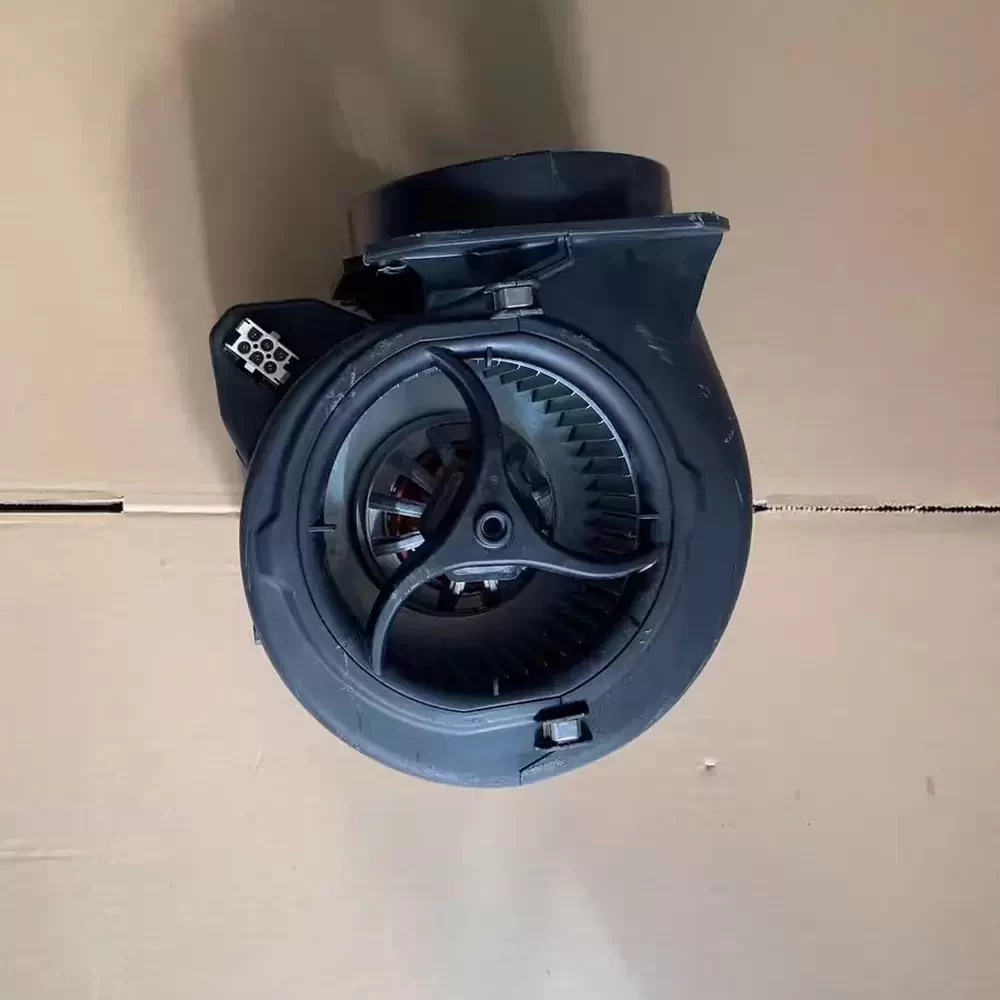

The ebm-papst D2E146-HT67-02 is a robust double inlet centrifugal blower engineered for high-pressure industrial ventilation and thermal management. Featuring an advanced AC external rotor motor (M2E068 series), this unit optimizes aerodynamic efficiency through its forward-curved impeller design, significantly reducing turbulence and noise generation while maximizing air throughput. The construction utilizes heavy-gauge galvanized sheet steel for both the scroll housing and impeller, ensuring exceptional structural rigidity and corrosion resistance in demanding environments. Equipped with precision maintenance-free ball bearings, the motor delivers reliable continuous operation with minimal thermal impedance. Integrated thermal overload protection safeguards the winding assembly, making this blower a critical component for systems requiring consistent air delivery and long-term durability under variable load conditions.
Model Number: D2E146-HT67-02
Brand: ebm-papst
Product Type: Double Inlet Centrifugal Blower (with Housing)
Motor Type: AC External Rotor Motor (M2E068-EC)
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 1.51 / 1.75 A
Power Consumption: 355 / 400 W
Rated Speed: 1850 / 2100 RPM
Max. Air Flow: 665 CFM (1130 m³/h)
Max. Static Pressure: 1.80 inH₂O (450 Pa)
Impeller Diameter: 146 mm
Bearing Type: Maintenance-free Ball Bearings
Motor Capacitor: 10 µF / 400 VDB
Housing Material: Sheet steel, hot-galvanized
Impeller Material: Sheet steel, hot-galvanized
Direction of Rotation: Counter-clockwise (seen on rotor)
Insulation Class: Class B
Motor Protection: Thermal Overload Protector (TOP) wired internally
Operating Temperature: -25 °C to +55 °C
Mounting Orientation: Any
Weight: 6.8 kg
Ingress Protection: IP20
Compliance: CE, CCC
This centrifugal blower is extensively utilized in industrial air handling units, clean room technology, and electronic cabinet cooling systems where high static pressure is required. The D2E146-HT67-02 excels in heat exchanger applications and duct-connected ventilation setups, providing consistent airflow to manage thermal loads effectively. Additionally, the D2E146-HT67-02 is frequently integrated into commercial range hoods, pharmaceutical equipment, and server rack cooling assemblies, ensuring reliable air extraction and circulation essential for maintaining operational standards in sensitive environments.
