Description

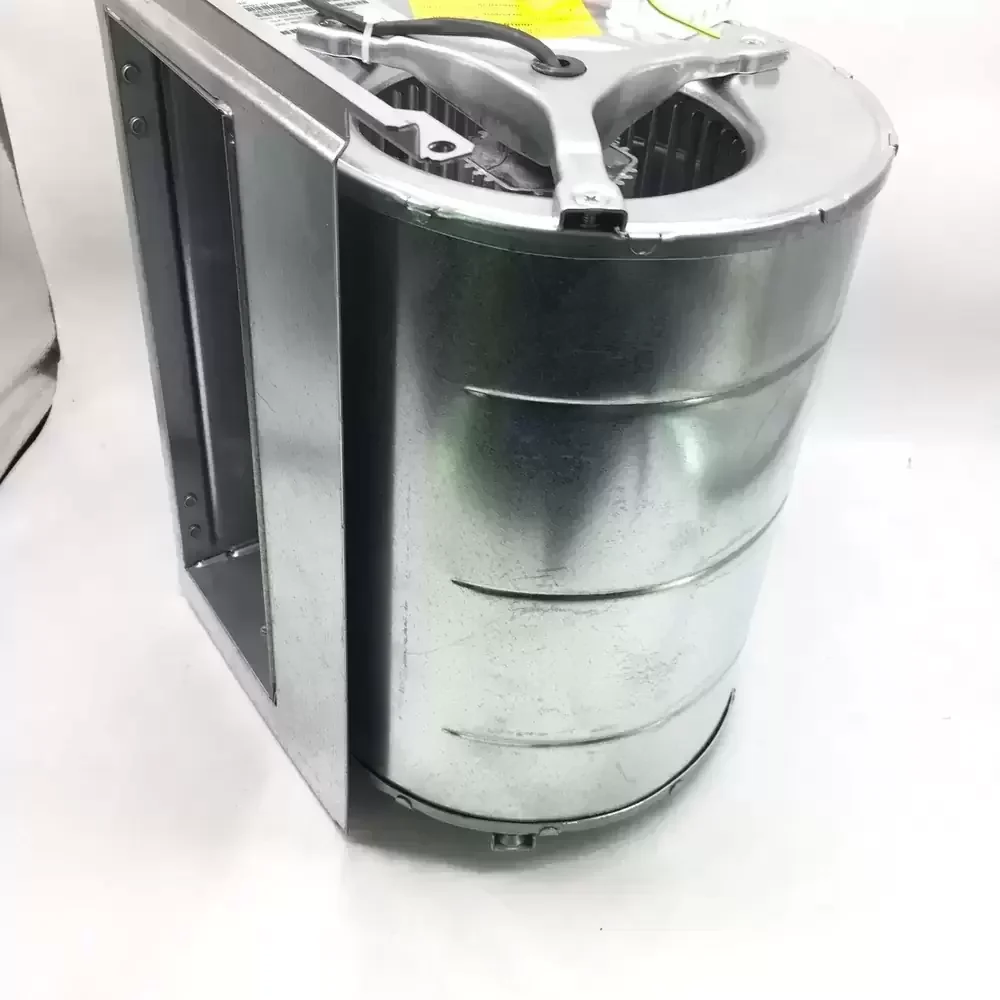

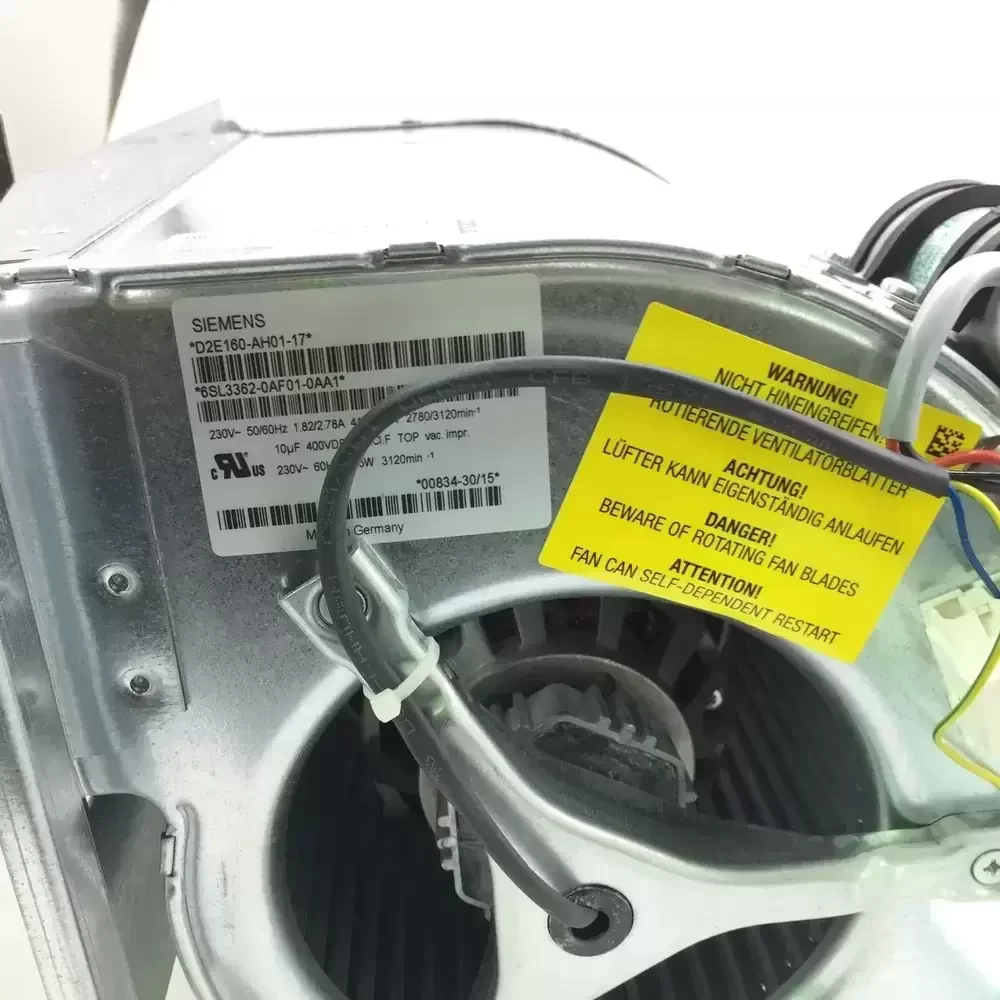

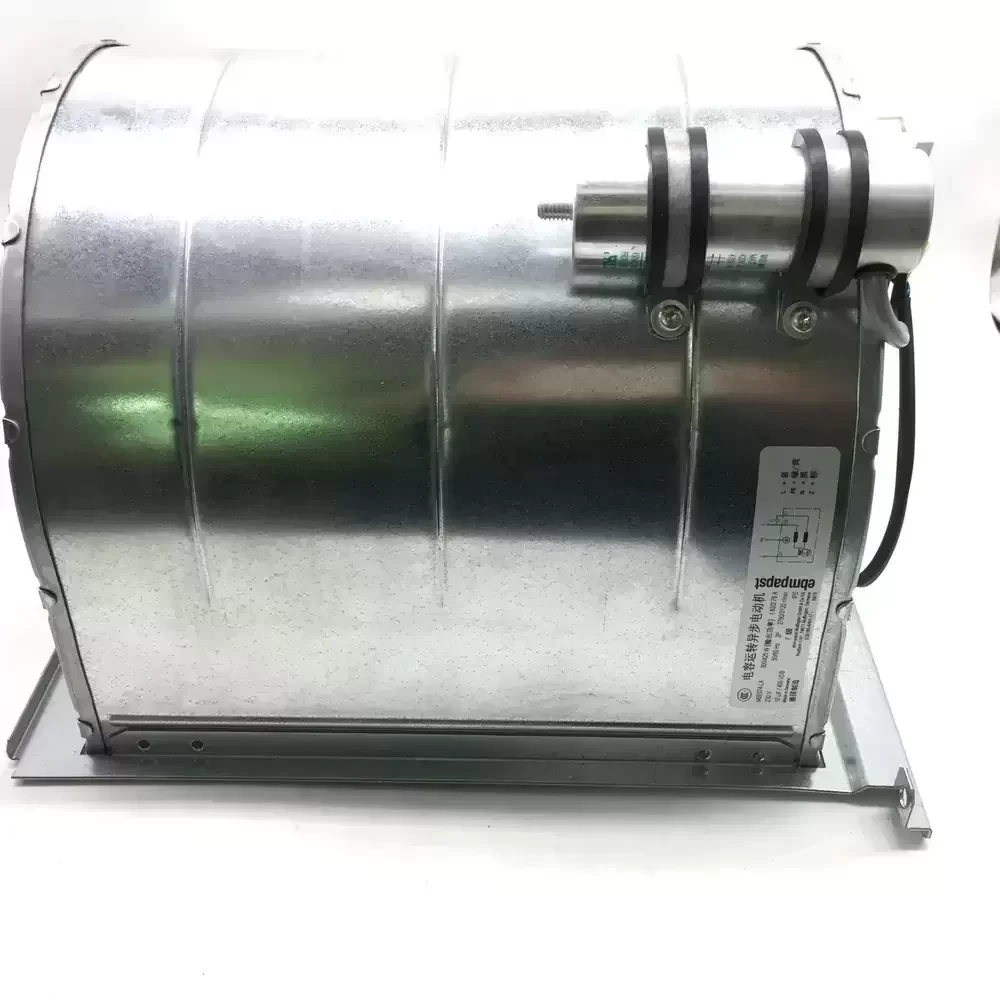

The Siemens D2E160-AH01-17 is a robust double-inlet centrifugal blower designed for high-demand thermal management within 110kW variable frequency drives and industrial power systems. Utilizing an external rotor AC motor architecture, this unit optimizes airflow efficiency while maintaining a compact footprint essential for dense industrial cabinetry. The aerodynamic curvature of the forward-curved impeller blades ensures superior static pressure generation, effectively overcoming the high thermal impedance found in power electronics heat sinks. Constructed with durable galvanized steel and precision ball bearings, the fan delivers sustained operational reliability and structural rigidity under continuous load conditions, making it a critical component for maintaining optimal operating temperatures in Siemens automation systems.
Model Number: D2E160-AH01-17
Brand: Siemens (OEM ebm-papst)
Product Type: Double Inlet Centrifugal Blower
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Phase: 1~
Rated Current: 1.01 A
Power Consumption: 230 W
Rated Speed: 2000 RPM
Max. Air Flow: 647 CFM (1100 m³/h)
Max. Static Pressure: 1.60 inH₂O (400 Pa)
Impeller Diameter: 160 mm
Motor Type: M2E068-EC
Bearing Type: Ball Bearing
Capacitor: 6 µF / 400 VDB
Housing Material: Galvanized Sheet Steel
Impeller Material: Sheet Steel, Hot-Galvanized
Insulation Class: Class B
Ingress Protection: IP44
Mounting Orientation: Any
Termination: Terminal Block / Lead Wires
Operating Temperature: -25°C to +60°C
Weight: 4.5 kg
Life Expectancy: > 40,000 Hours @ 40°C
Compliance: CE, UL, CSA
Application: Siemens 110kW Inverter Cooling
The D2E160-AH01-17 is specifically engineered for thermal regulation within heavy-duty industrial power conversion systems, most notably serving as the primary cooling solution for Siemens 110kW frequency inverters. By forcing air through dense heat sink arrays, the D2E160-AH01-17 prevents thermal throttling in automated manufacturing lines, CNC machining centers, and large-scale HVAC drive cabinets. Its robust design also suits general ventilation in control panels and telecommunications infrastructure where reliable back-pressure performance is required.
