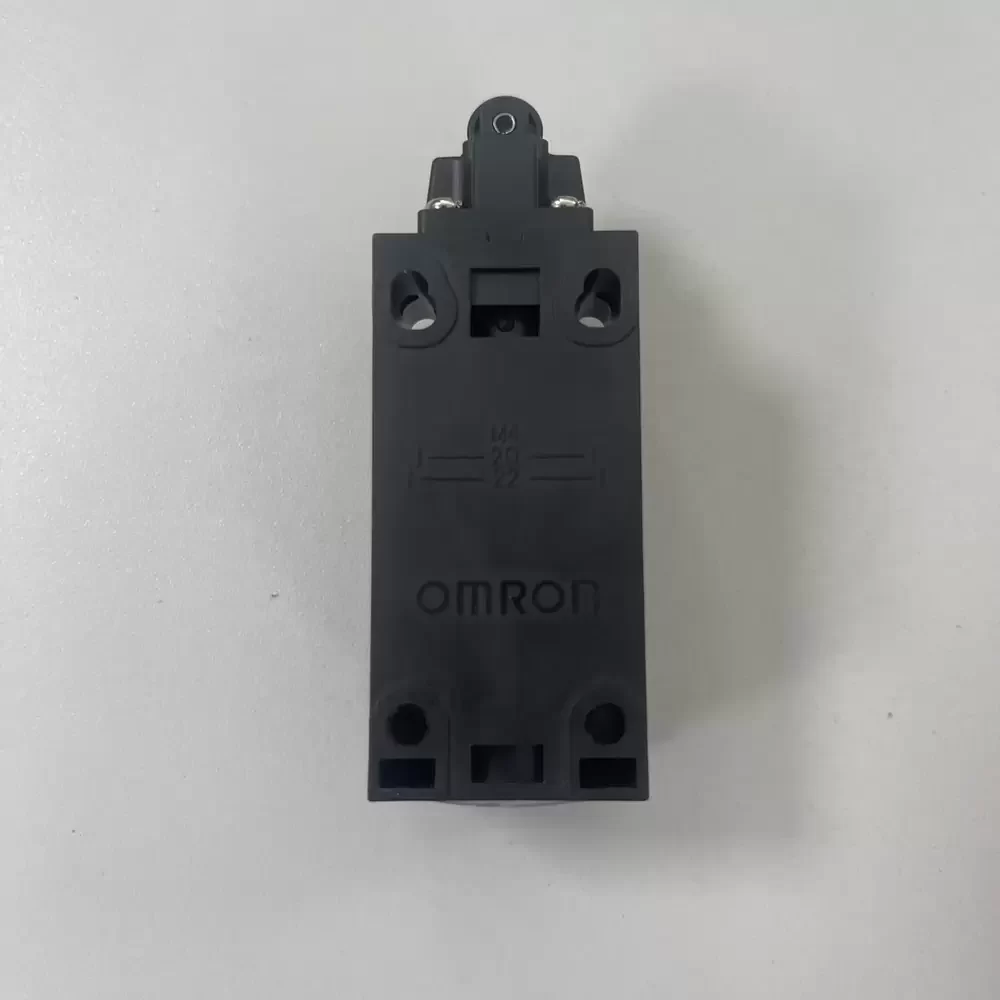

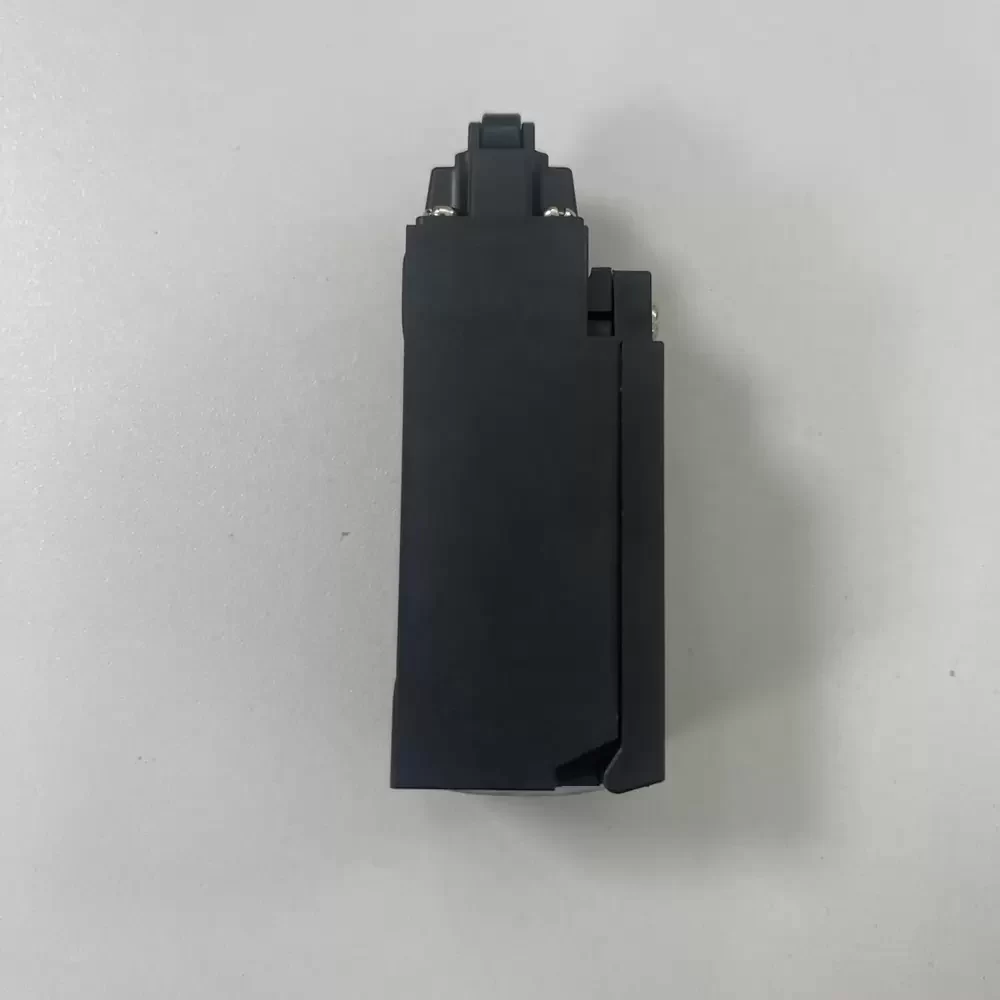

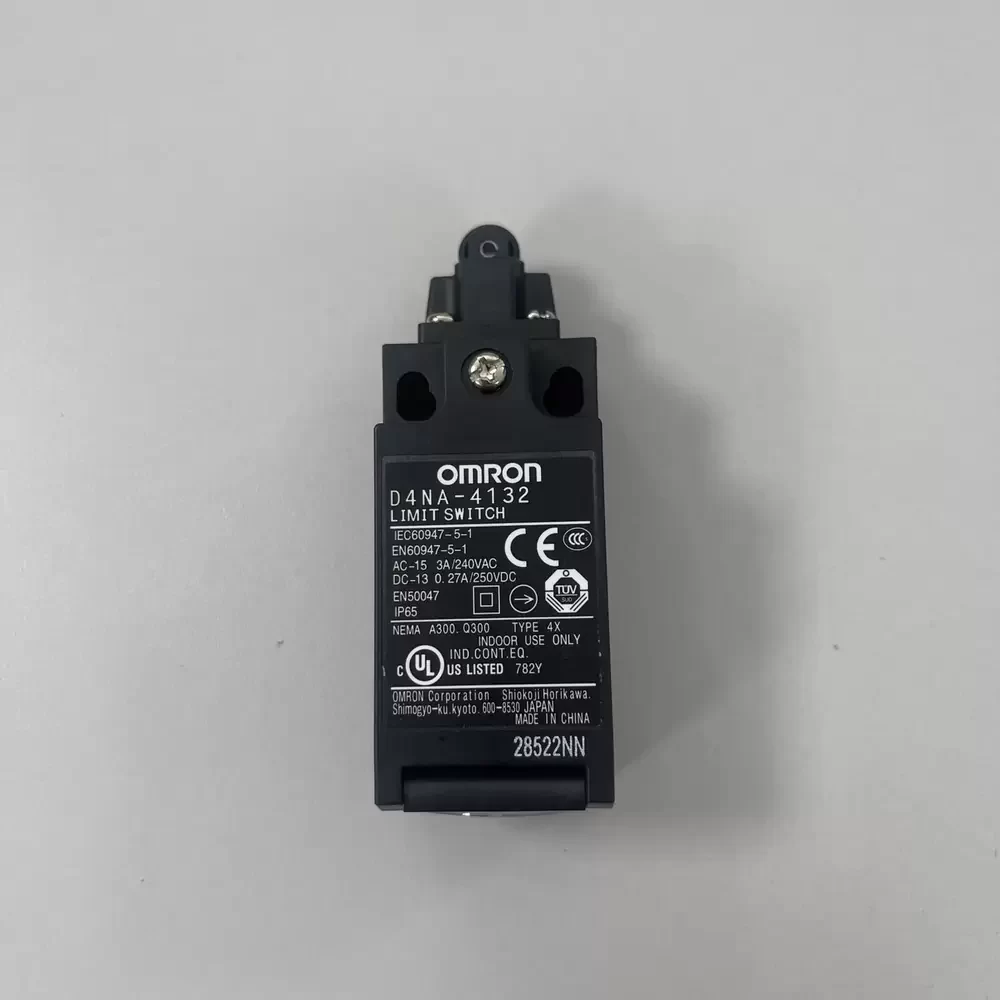

D4NA-4132 OMRON 240VAC/10A Roller Plunger Limit Switch

Description

The OMRON D4NA-4132 is a high-precision safety limit switch engineered for industrial automation and elevator safety systems. It features a 1NC/1NO snap-action contact mechanism with a direct opening mechanism to ensure circuit interruption even in the event of contact welding. This model is equipped with a 9.5mm diameter resin roller plunger actuator and a single M20 conduit entry. It operates reliably within a voltage range up to 240VAC and a rated current of 10A, maintaining an IP67 protection rating for harsh environments. The switch is designed for high durability with a mechanical life of 15,000,000 operations and an operating temperature range of -30 to 70°C.

D4NA-4132 Specifications
Model Number: D4NA-4132
Brand: OMRON
Product Category: Safety Limit Switch
Actuator Type: Roller Plunger (9.5 dia. x 5 Resin Roller)
Contact Form: 1NC/1NO
Switch Action: Snap Action
Rated Voltage: 240VAC
Rated Current: 10A
Conduit Size: M20 (1-conduit)
Degree of Protection: IP67
Operating Force (OF): 6.5 N max.
Release Force (RF): 1.5 N min.
Pre-Travel (PT): 2 mm max.
Over-Travel (OT): 4 mm min.
Movement Differential (MD): 1 mm max.
Operating Position (OP): 28.6±0.8 mm
Direct Opening Force: 20 N min.
Direct Opening Travel: 3.2 mm min.
Insulation Resistance: 100 MΩ min. (at 500 VDC)
Contact Resistance: 25 mΩ max. (initial value)
Mechanical Durability: 15,000,000 operations min.
Electrical Durability: 300,000 operations min. (10A at 250VAC)
Operating Temperature: -30 to 70°C (no icing)
Operating Humidity: 95% RH max.
Shock Resistance: 1,000 m/s² (destruction), 300 m/s² (malfunction)
Vibration Resistance: 10 to 55 Hz, 0.75 mm single amplitude
Pollution Degree: Degree 3 (EN60947-5-1)
Protection Class: Class II (Double Insulation)
Certifications: UL, CSA, EN (TÜV), CCC

D4NA-4132 Applications
Safety position monitoring for Hitachi elevator buffer switches, escalator speed governors, and industrial conveyor alignment systems. Mandatory integration in machine tool access doors and automated production lines requiring EN81-20/50 compliant safety interlocking.
