Description

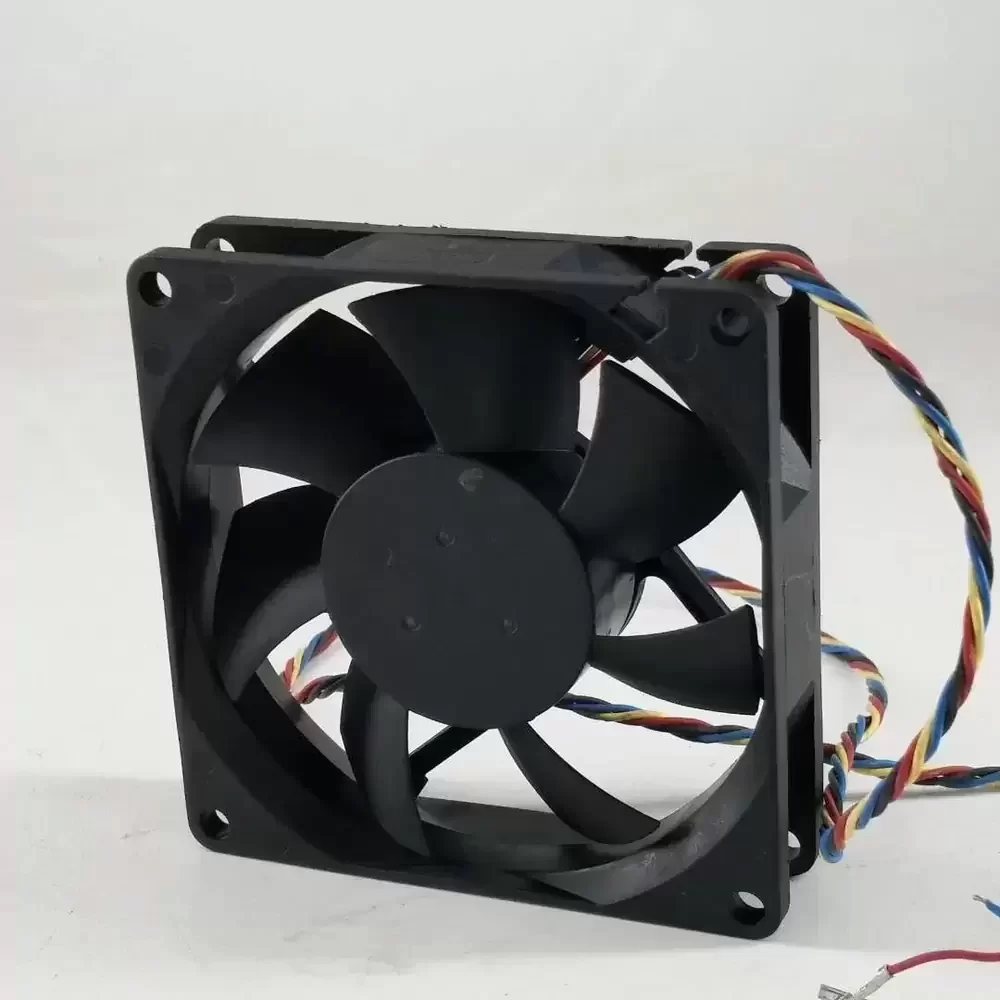

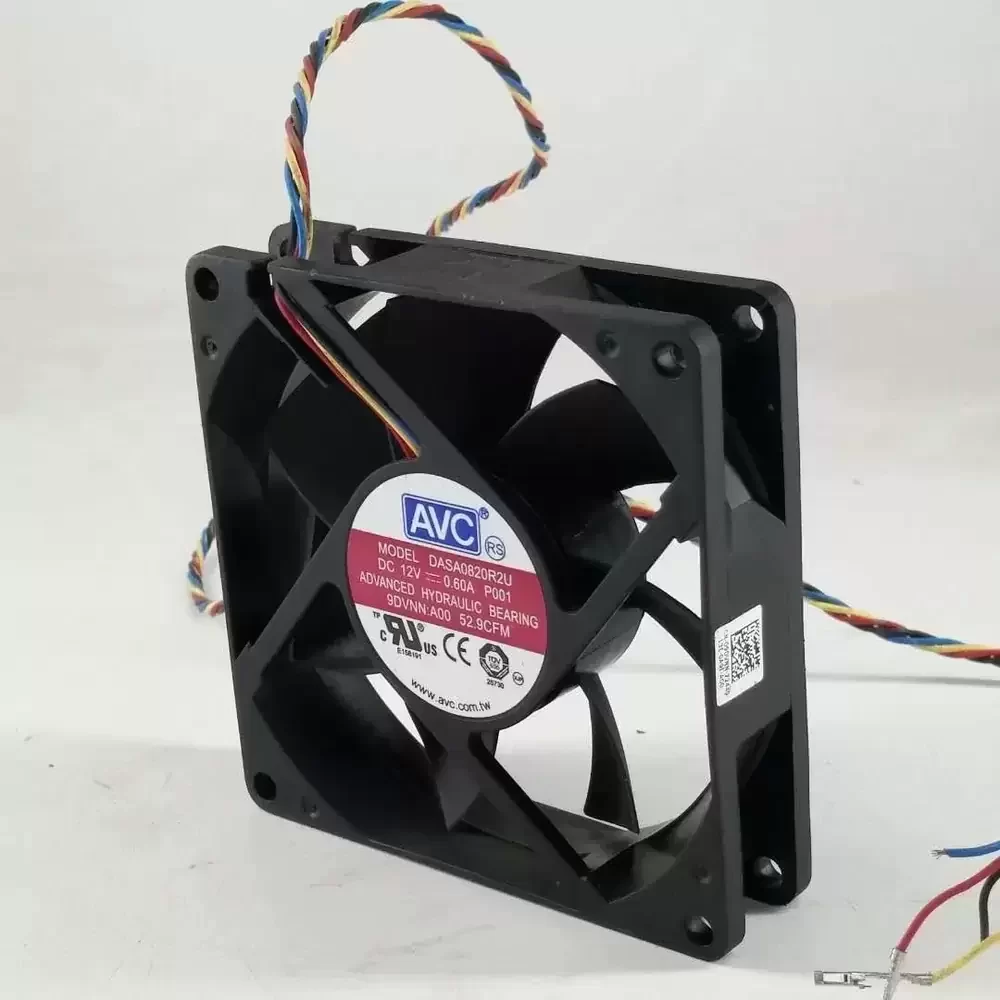

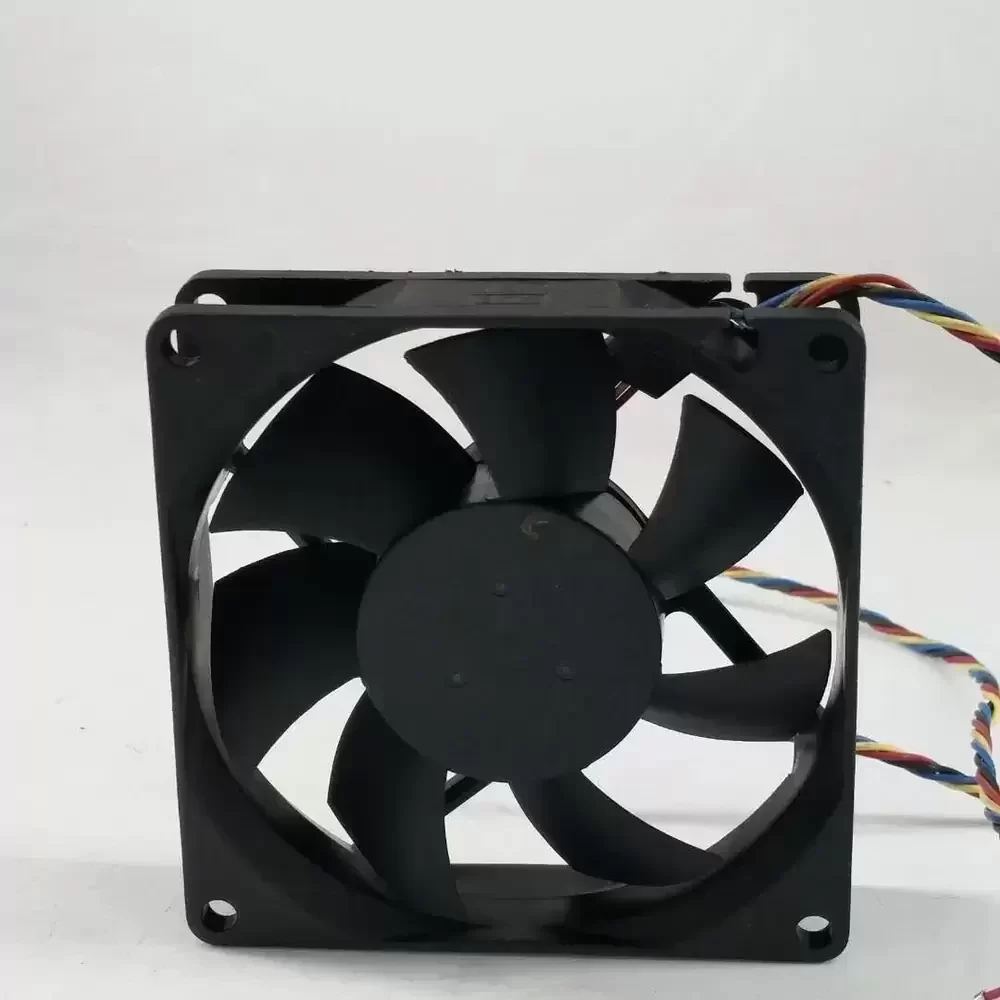

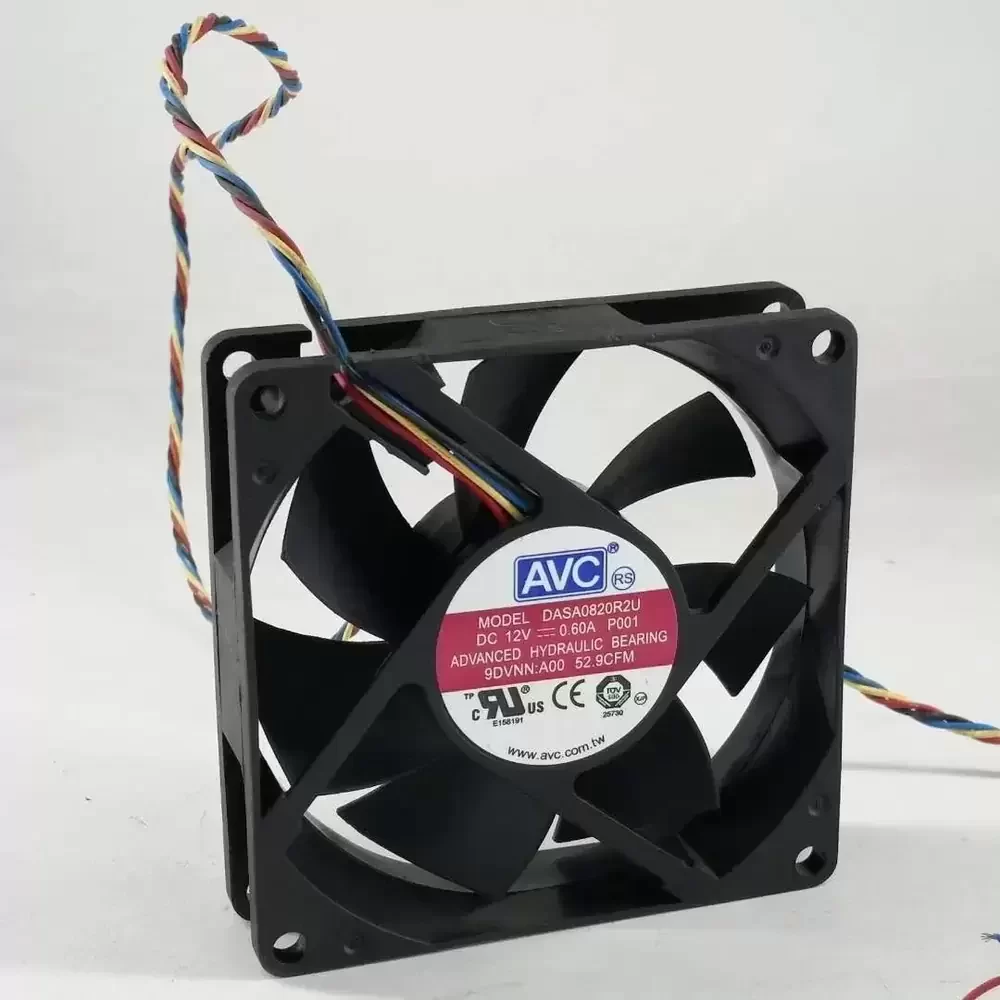

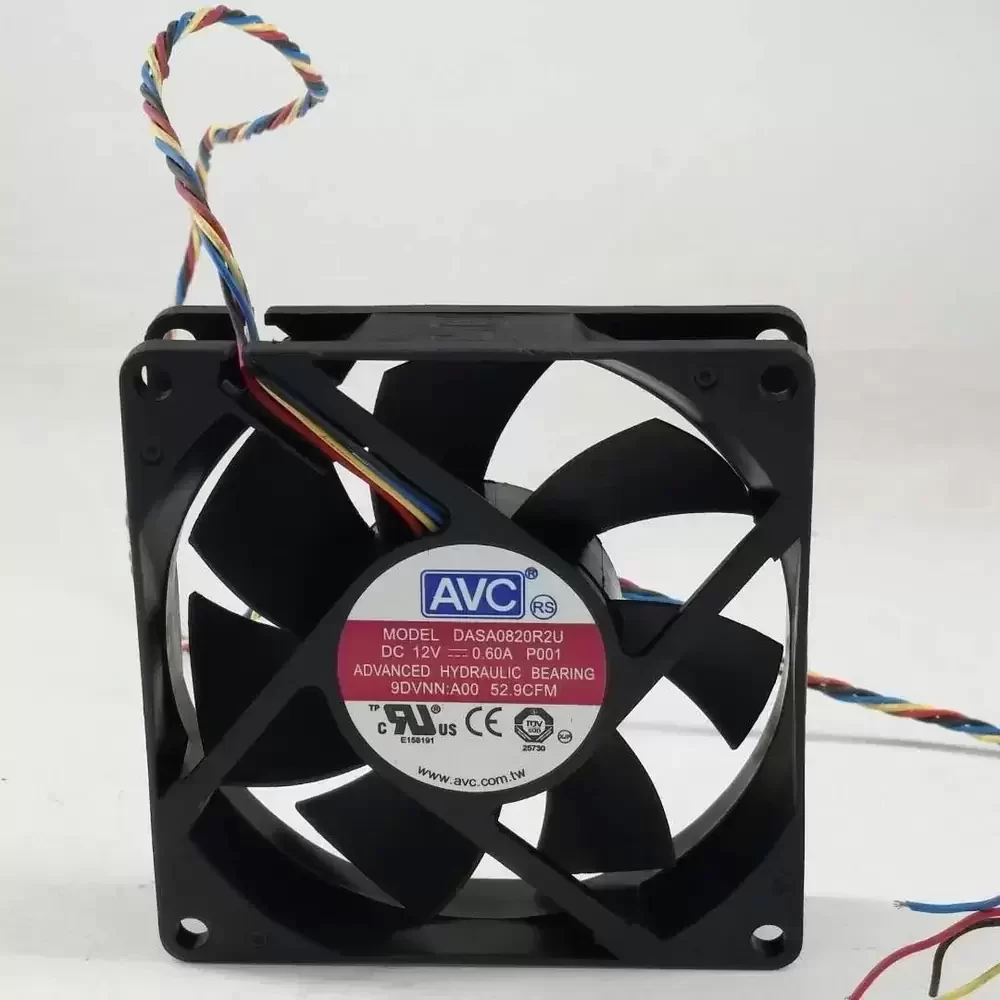

The AVC DASA0820R2U-P001 is a high-efficiency DC axial fan engineered for precision thermal management in space-constrained industrial environments. Utilizing a sophisticated brushless DC motor architecture, this unit minimizes thermal impedance through optimized blade geometry and a high-rigidity thermoplastic housing. The dual ball bearing system ensures long-term structural integrity and rotational stability under continuous duty cycles. Designed for integration into systems requiring active speed modulation, the four-wire interface supports pulse width modulation for granular control over airflow dynamics, ensuring peak aerodynamic efficiency while maintaining low acoustic signatures in variable load scenarios.
Model Number: DASA0820R2U-P001
Brand: AVC
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.60A
Power: 7.2W
Rated Speed: 4500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 52.9 CFM (89.88 m³/h / 1.50 m³/min)
Max. Static Pressure: 7.42 mmH₂O (72.77 Pa / 0.29 inH₂O)
Dimensions: 80x80x20mm
Weight: 85g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM Signal
Monitoring Output: Tachometer / Frequency Generator
Noise Level: 44.5 dBA
Housing Material: Plastic (UL94V-0)
Blade Material: Plastic (UL94V-0)
Termination: 4-Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Certifications: UL, TUV, CE, RoHS
This cooling solution is primarily deployed in high-density server enclosures and telecommunications infrastructure where the DASA0820R2U-P001 provides critical heat dissipation for internal components. The compact 20mm depth of the DASA0820R2U-P001 makes it an ideal candidate for 1U/2U rackmount systems, medical diagnostic equipment, and industrial power supplies. Its robust construction ensures reliable performance in CNC control cabinets and network switching hardware requiring consistent, high-pressure airflow.
