Description

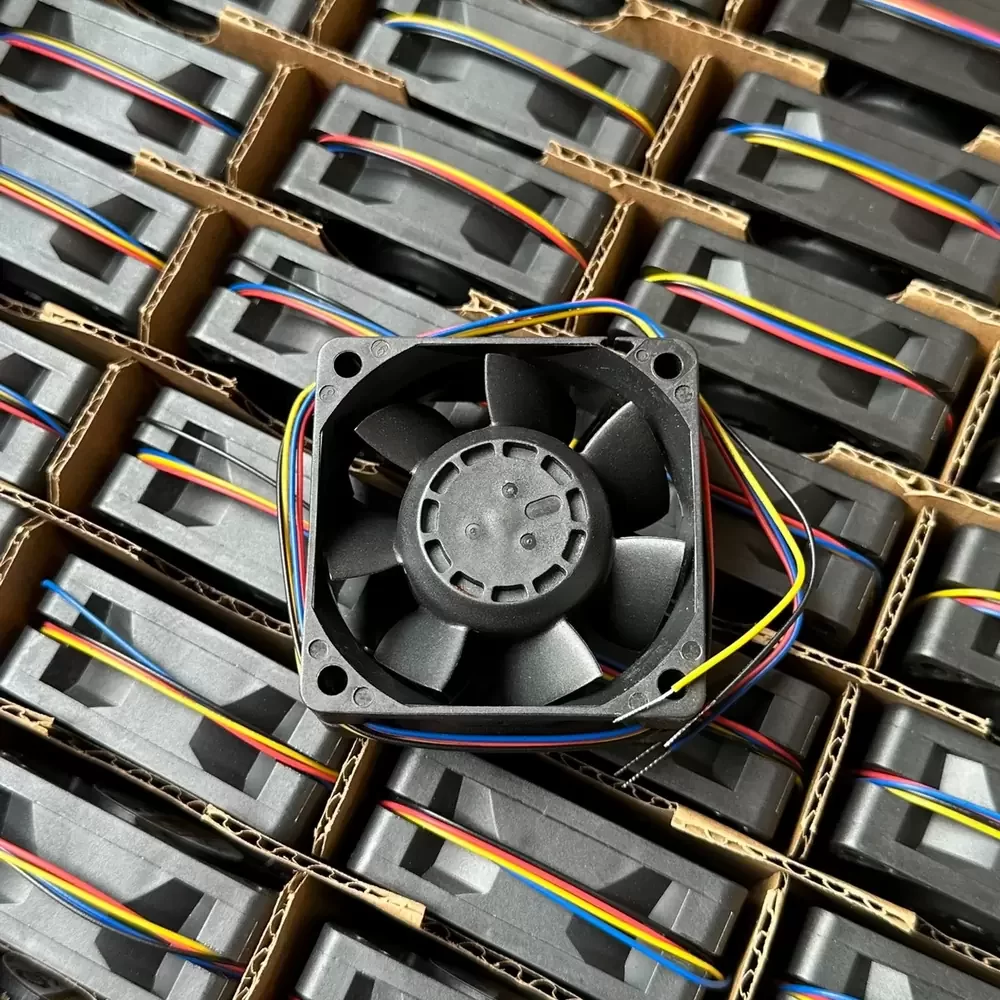

The AVC DATB0625B8H-P030 is a precision-engineered DC Axial Fan designed for critical thermal management applications requiring high reliability and efficient airflow control. Utilizing advanced DC motor technology paired with a robust Dual Ball Bearing architecture, this unit ensures minimized friction and extended operational lifespan under continuous load. The aerodynamic blade design optimizes static pressure while maintaining low acoustic signatures, effectively reducing thermal impedance in high-density electronic enclosures. Its structural rigidity and 4-wire PWM speed control capability allow for dynamic cooling adjustments, ensuring optimal performance stability in demanding industrial environments.
Model Number: DATB0625B8H-P030
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 28.0 – 56.0 VDC
Rated Current: 0.17 A
Power Consumption: 8.16 W
Rated Speed: 6800 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 38.5 CFM (65.4 m³/h / 1.09 m³/min)
Max. Static Pressure: 14.2 mmH₂O (139.2 Pa / 0.56 inH₂O)
Dimensions: 60x60x25 mm
Weight: 75 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Lead
Wire Assignment: Red (+), Black (-), Yellow (Sensor), Blue (PWM)
Frame Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 44.5 dB(A)
Ingress Protection: IP40
Safety Certifications: UL, TUV, CE, RoHS
Motor Protection: Locked Rotor Protection, Polarity Protection
This high-performance cooling solution is specifically engineered for deployment in enterprise-grade server racks, telecommunications base stations, and precision industrial automation equipment. The DATB0625B8H-P030 excels in environments where consistent airflow and variable speed control are paramount to prevent thermal throttling. Additionally, the DATB0625B8H-P030 is frequently utilized in network switches, rectifiers, and power supply units, providing reliable heat dissipation for critical infrastructure components requiring 48VDC power inputs.
