Description
The AVC DAZA0410R2H-015 is a compact Axial Fan engineered for precision thermal management in space-constrained electronic enclosures. Utilizing advanced hydraulic bearing technology, this unit optimizes the balance between rotational stability and acoustic performance, significantly reducing friction-induced noise while extending operational lifespan compared to standard sleeve bearings. The aerodynamic blade geometry is designed to maximize static pressure delivery within a 40mm footprint, ensuring efficient airflow through dense component arrays. Operating at a rated 12VDC with a minimal current draw of 0.06A, it minimizes power consumption while maintaining effective thermal impedance reduction, making it an ideal solution for continuous-duty applications requiring reliable heat dissipation and structural rigidity.

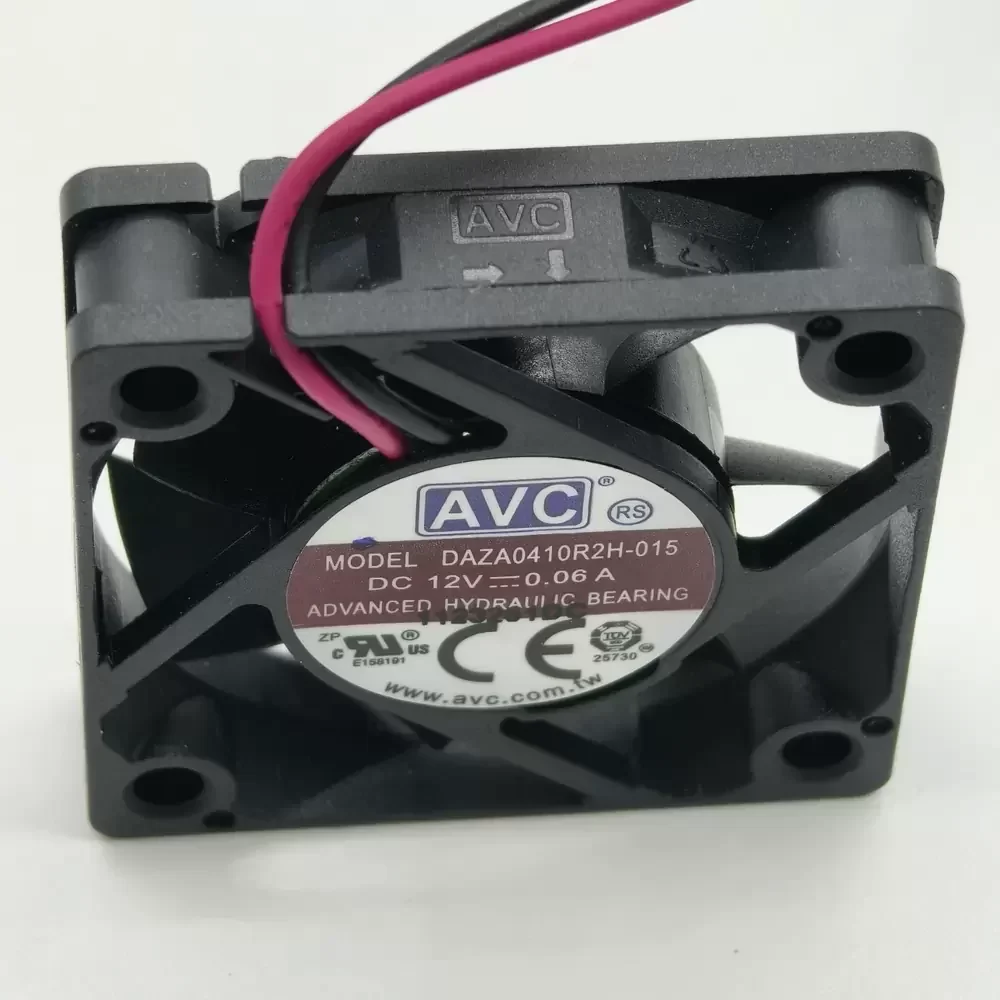

Model Number: DAZA0410R2H-015
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.06 A
Power: 0.72 W
Rated Speed: 4500 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 4.85 CFM (8.24 m³/h / 0.14 m³/min)
Max. Static Pressure: 2.15 mmH₂O (21.08 Pa / 0.08 inH₂O)
Dimensions: 40 x 40 x 10 mm
Weight: 14.5 g
Life Expectancy: 40,000 Hours at 40°C
Noise Level: 18.2 dB(A)
Lead Wire Length: 248 mm
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP40
Termination: 2-Wire Lead
Mounting Orientation: Any
Designed specifically for compact electronic environments, the DAZA0410R2H-015 excels in maintaining optimal operating temperatures for surveillance equipment such as Hikvision DVRs and NVRs. Its low-profile 10mm thickness allows for seamless integration into hard drive chassis and tight enclosures where airflow is critical but space is limited. By delivering consistent cooling performance, the DAZA0410R2H-015 prevents thermal throttling in continuous recording systems, ensuring data integrity and hardware longevity in security infrastructure and small form-factor IT deployments.
