Description

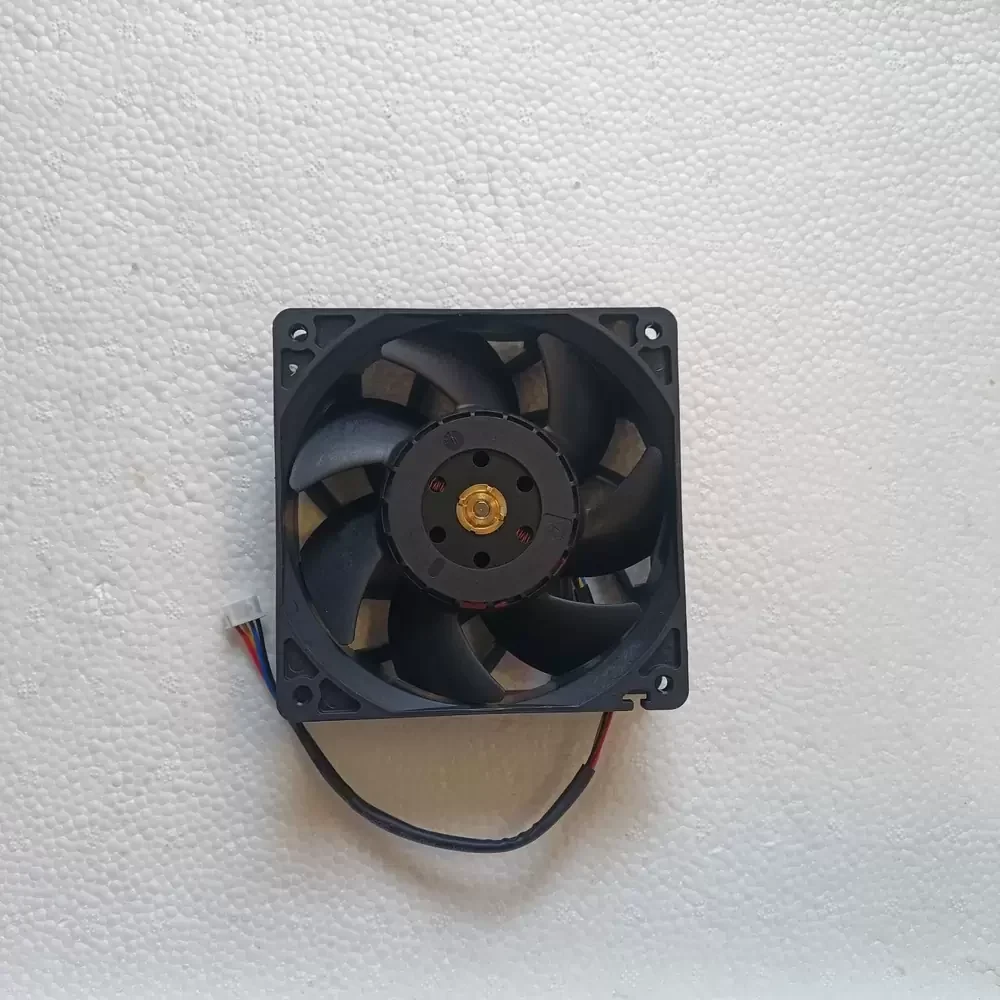

The AVC DBPK1238B2M-P015 is a high-performance DC axial fan engineered for mission-critical thermal management in high-density electronic environments. Featuring an advanced aerodynamic impeller design housed within a reinforced thermoplastic frame, this unit optimizes airflow dynamics to minimize thermal impedance across heat sinks and system components. Driven by a high-torque DC motor and supported by a precision dual ball bearing architecture, it ensures exceptional structural rigidity and operational longevity under continuous load. The 4-wire configuration enables precise Pulse Width Modulation (PWM) speed control, allowing for dynamic thermal regulation and acoustic optimization based on real-time system demands. This high-static pressure solution is specifically calibrated for demanding industrial and server-grade cooling applications where reliability is non-negotiable.
Model Number: DBPK1238B2M-P015
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 3.60 A
Power Input: 43.2 W
Rated Speed: 5500 RPM (Nominal)
Bearing Type: Dual Ball Bearing
Max. Air Flow: 220.0 CFM (373.78 m³/h / 6.23 m³/min)
Max. Static Pressure: 28.5 mmH₂O (279.5 Pa / 1.12 inH₂O)

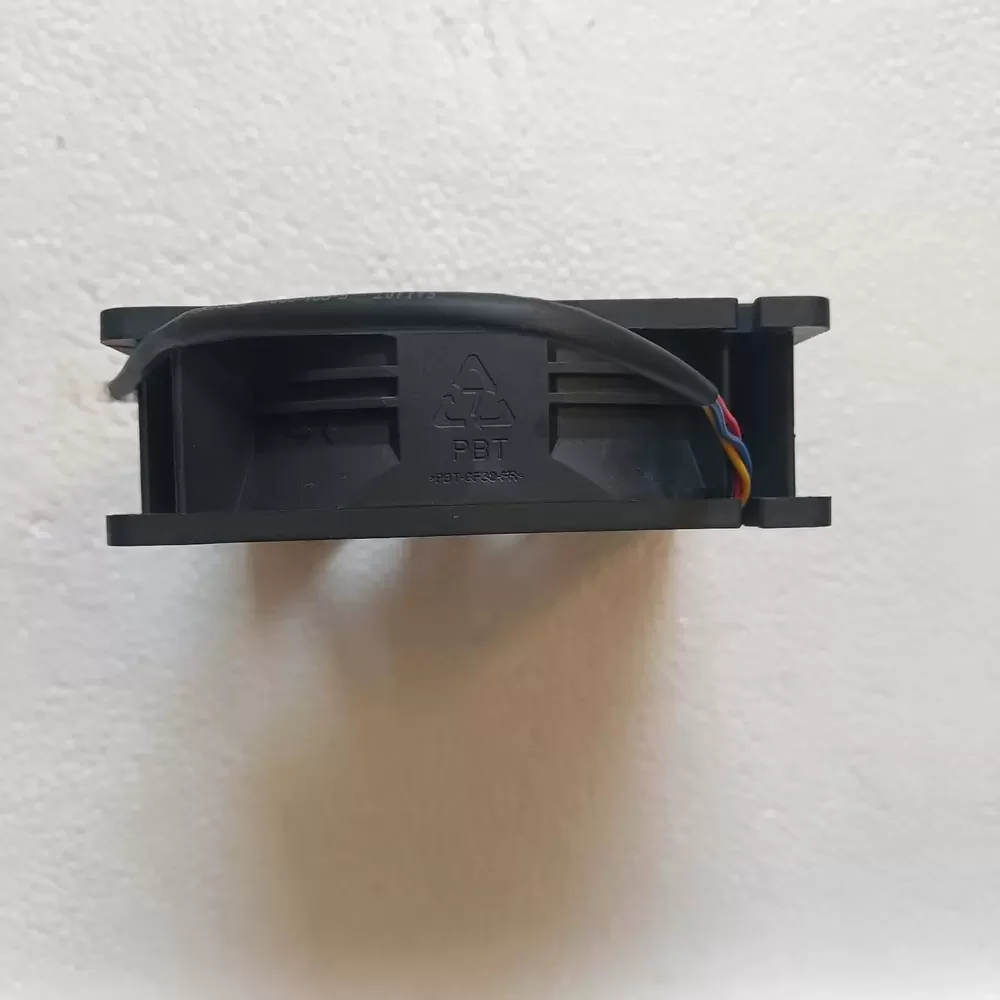

Dimensions: 120 x 120 x 38 mm
Frame Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 4-Wire Leads with Connector
Wire Assignment: Red (+), Black (-), Yellow (Tach), Blue (PWM)
Speed Control: PWM (Pulse Width Modulation)
Ingress Protection: IP54 (Dust Protected)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Life Expectancy: 70,000 Hours at 40°C
Mounting Orientation: Any
The DBPK1238B2M-P015 is frequently deployed in high-performance computing clusters, enterprise server racks, and telecommunications infrastructure where rapid heat dissipation is paramount. Its high static pressure capabilities make the DBPK1238B2M-P015 ideal for forcing air through dense obstructions such as radiator fins, drive cages, and tightly packed industrial enclosures, ensuring component stability during peak operational cycles.
