Description

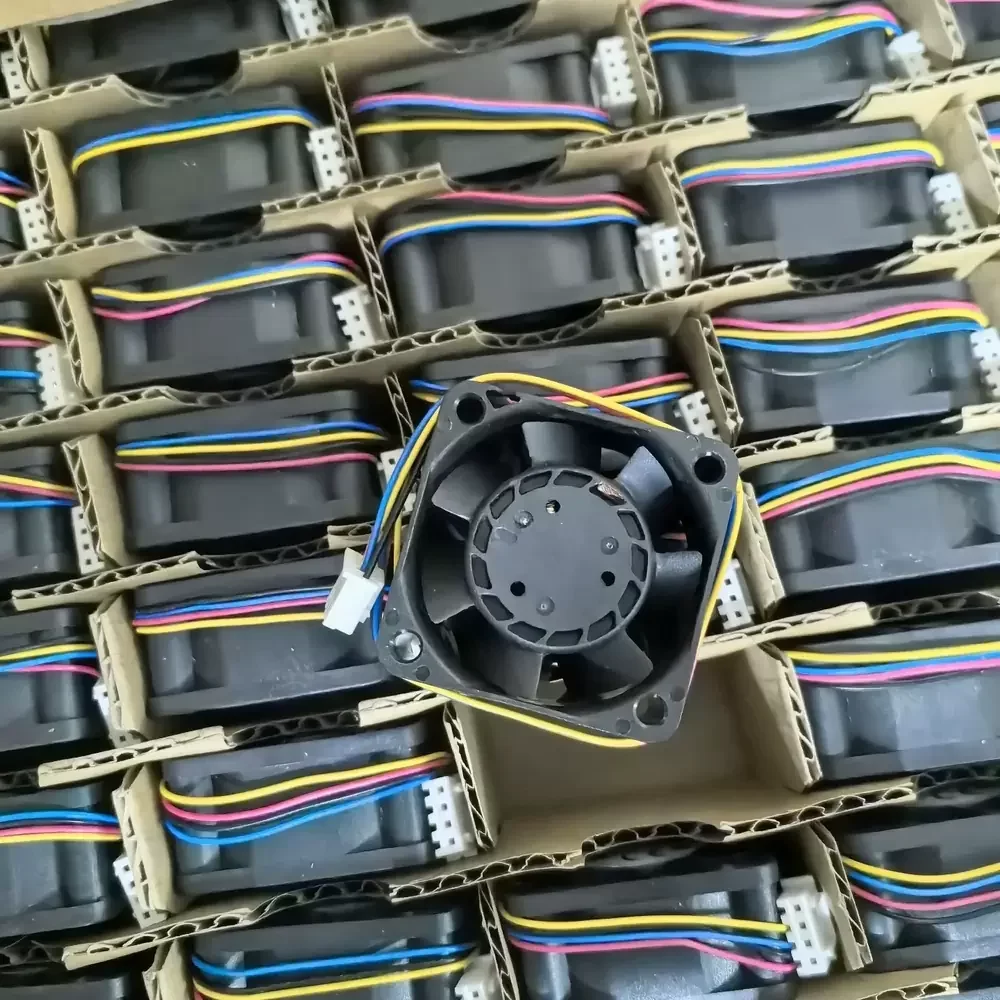

The AVC DBTA0420B2U-P011 is a precision-engineered axial fan designed for high-density thermal management applications requiring robust static pressure and airflow efficiency. Utilizing advanced DC motor technology paired with a durable dual ball bearing architecture, this unit ensures minimized frictional coefficients and extended operational longevity under continuous load. The aerodynamic impeller design optimizes air intake while reducing turbulence-induced noise, making it suitable for critical cooling environments. With integrated PWM signal control, the DBTA0420B2U-P011 allows for dynamic speed modulation, effectively balancing thermal impedance against power consumption to maintain system stability within strict temperature thresholds.
Model Number: DBTA0420B2U-P011
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Rated Current: 0.50A
Power Consumption: 6.00W
Dimensions: 40x40x20mm
Bearing Type: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Lead
Connector Type: 4-Pin Motherboard Header
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Mounting Orientation: Any
Ingress Protection: Standard IP Rating
Operating Temperature: -10°C to +70°C
Life Expectancy: 50,000 Hours at 40°C
The DBTA0420B2U-P011 is specifically engineered for compact, high-heat environments such as 1U server power supply units and industrial computer chassis where space is limited but airflow requirements are substantial. Its high-static pressure capabilities make it an ideal solution for cooling Northbridge chipsets and modifying graphics card thermal solutions in legacy or specialized hardware. Furthermore, the DBTA0420B2U-P011 is frequently deployed in telecommunications equipment and rack-mounted network appliances, ensuring reliable heat dissipation for critical components operating in continuous duty cycles.
