Description

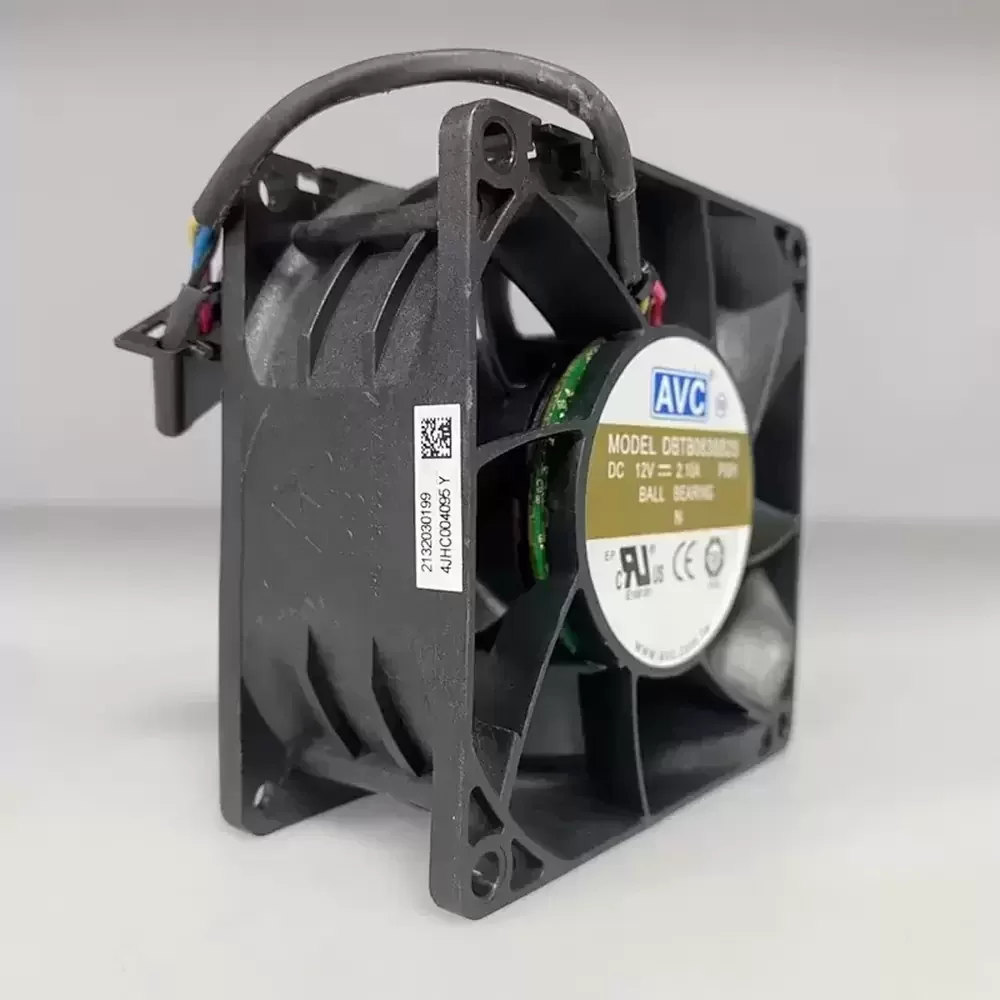

The AVC DBTB0838B2S-P091 is a high-performance DC Axial Fan engineered for mission-critical thermal management in high-density server environments. Utilizing a robust Dual Ball Bearing architecture, this unit ensures exceptional longevity and structural rigidity under continuous operation. The aerodynamic impeller design is optimized to deliver high static pressure, effectively overcoming significant thermal impedance within restricted chassis spaces. Operating at 12VDC with a current draw of 2.10A, it provides substantial airflow capabilities required for rapid heat dissipation in industrial and computing applications.
Model Number: DBTB0838B2S-P091
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 2.10 A
Power Consumption: 25.2 W
Rated Speed: 9000 RPM (Estimated)
Bearing Type: Dual Ball Bearing
Max. Air Flow: 102.5 CFM (174.1 m³/h / 2.90 m³/min)
Max. Static Pressure: 28.5 mmH₂O (279.5 Pa / 1.12 inH₂O)

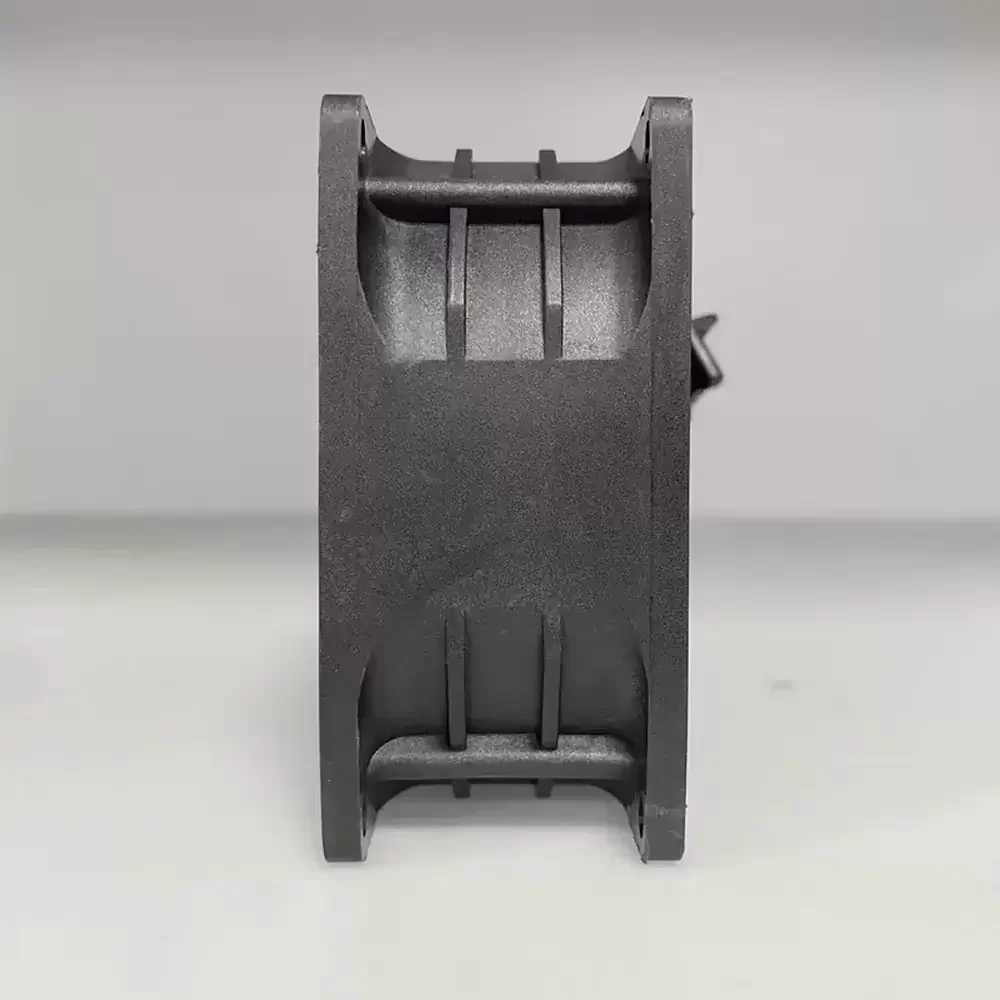

Dimensions: 80x80x38mm
Weight: 195 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM (Pulse Width Modulation)

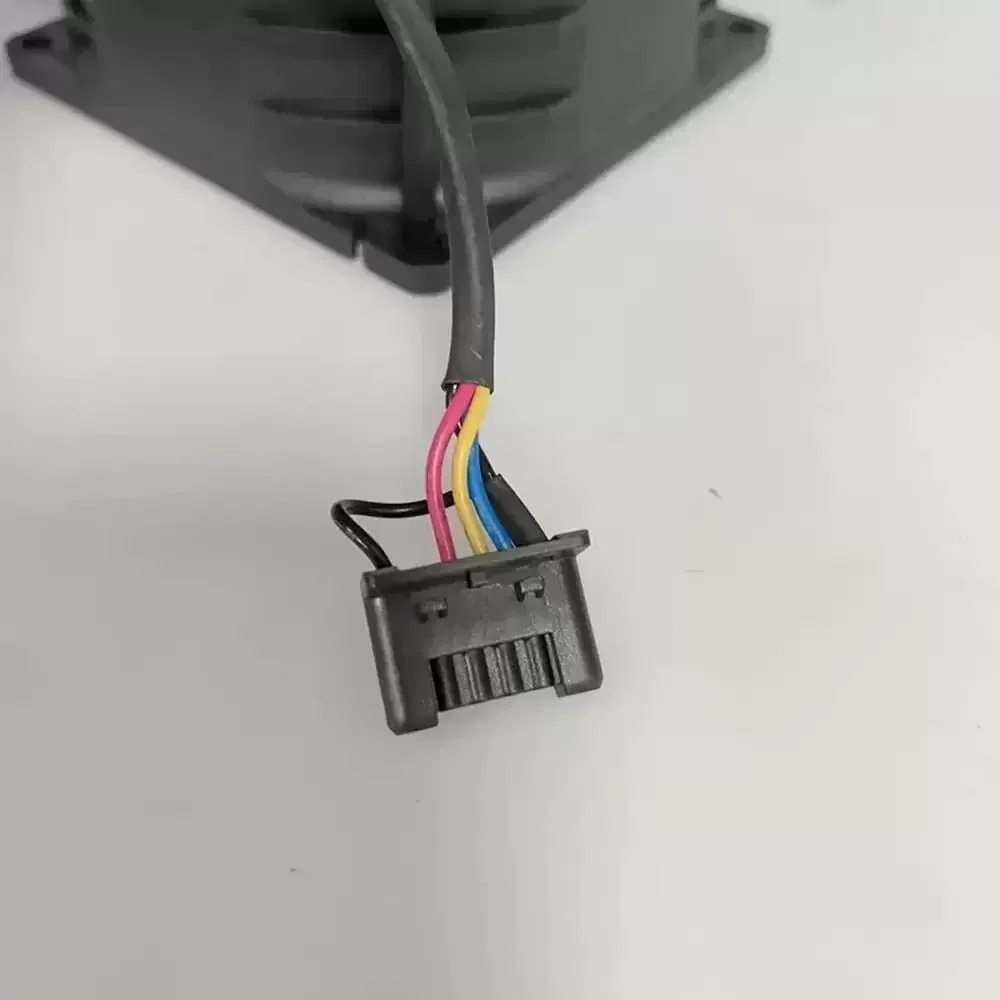

Termination: 4-Wire Lead
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Noise Level: 61.5 dB(A)
Safety Certifications: UL, CUL, TUV, CE
Protection: Locked Rotor Protection, Polarity Protection
Designed primarily for high-static pressure environments, the DBTB0838B2S-P091 excels in server chassis cooling and rack-mounted equipment where airflow is restricted by dense componentry. This model is frequently integrated into enterprise computing systems, telecommunications base stations, and industrial automation enclosures requiring aggressive heat evacuation. The DBTB0838B2S-P091 ensures reliable thermal regulation for CPUs and power supplies, maintaining optimal operating temperatures in 24/7 operational scenarios.
