Description

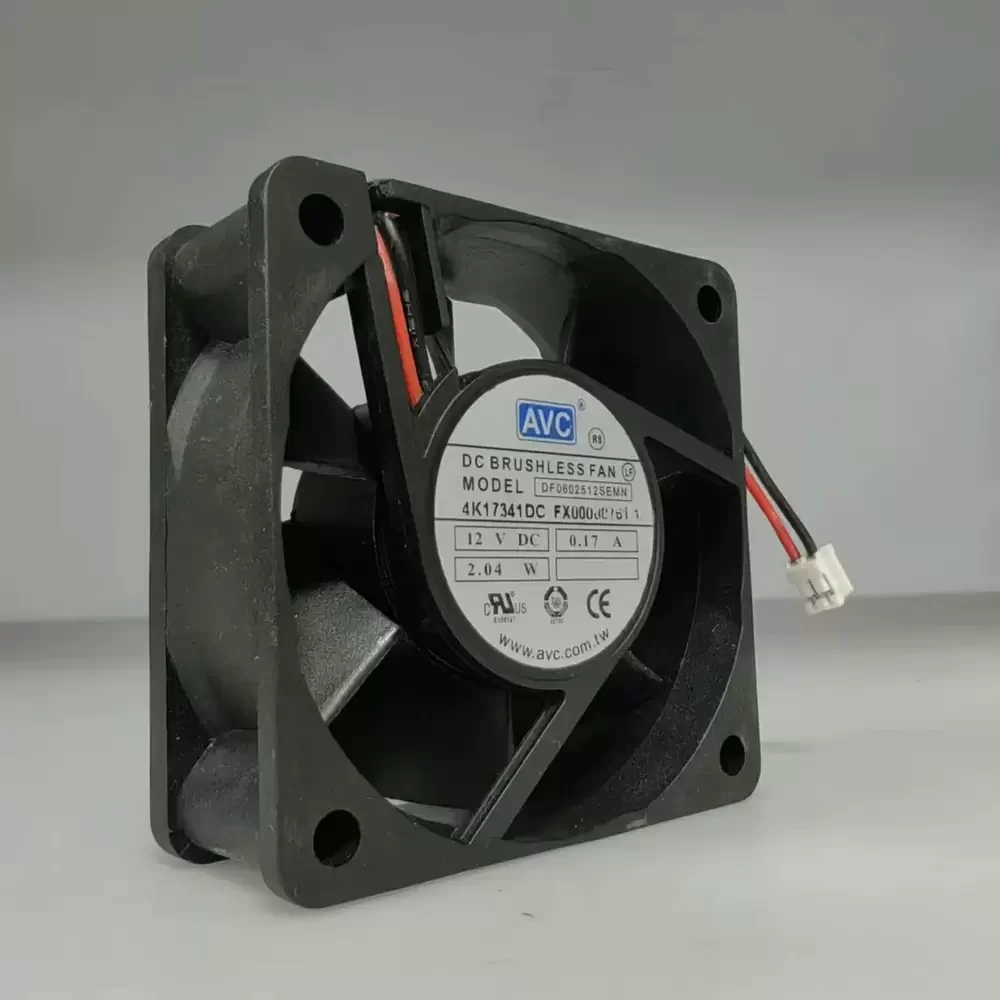

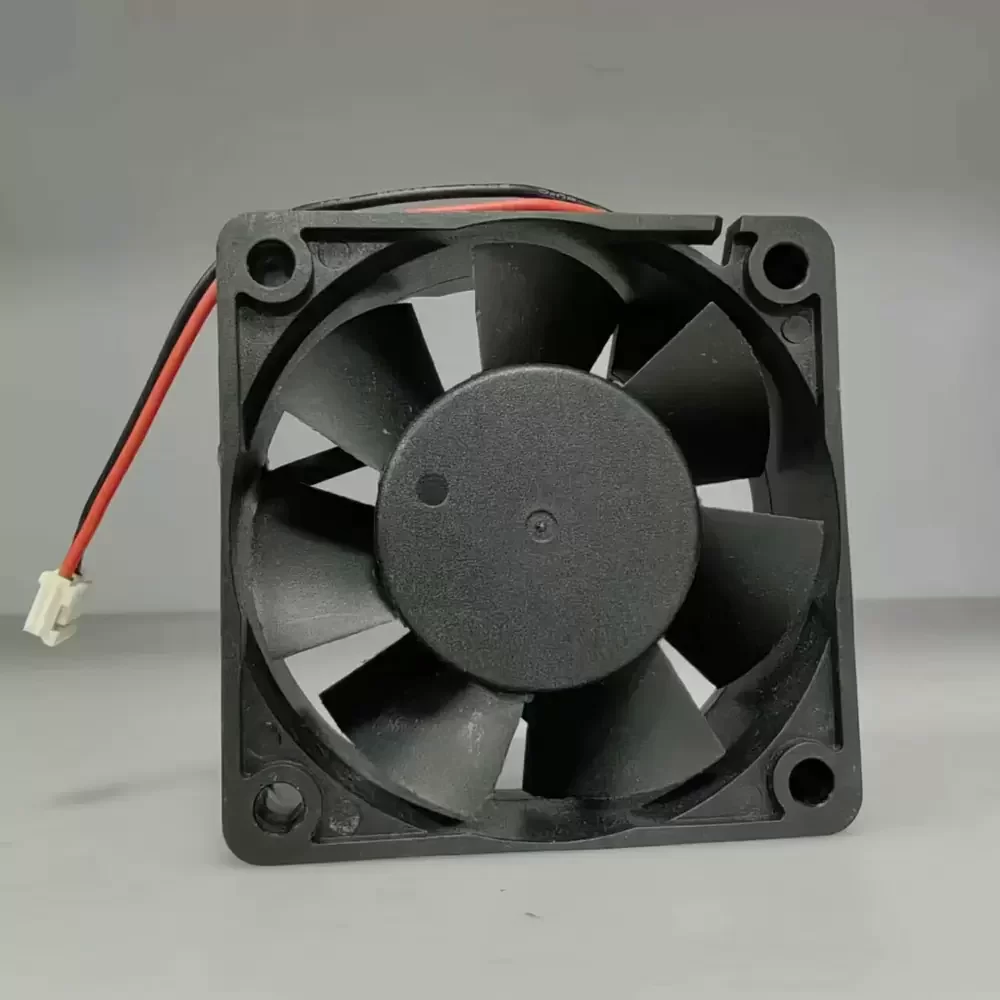

The AVC DF0602512SEMN is a Axial Fan engineered for high-reliability thermal management in demanding industrial environments. Utilizing advanced DC motor technology, this unit is designed to minimize thermal impedance while maintaining structural rigidity under continuous operation. The aerodynamic blade profile is optimized for efficient laminar airflow, reducing turbulence and acoustic output. Its robust frame construction ensures durability in high-vibration settings, making it an ideal choice for precision cooling. The integration of high-quality internal components ensures consistent electrical performance and long-term stability for critical electronic assemblies requiring precise temperature regulation.
Model Number: DF0602512SEMN
Brand: AVC
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.2 VDC
Rated Current: 0.17A (Measured 0.128A)
Power: 2.04W
Rated Speed: 3800 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 19.80 CFM (33.64 m³/h / 0.56 m³/min)
Max. Static Pressure: 3.80 mmH₂O (37.26 Pa / 0.15 inH₂O)
Dimensions: 60x60x25mm
Weight: 58g
Life Expectancy: 30,000 Hours
Speed Control: None (Fixed Speed)
Ingress Protection: IP51
Insulation Class: Class A
Noise Level: 31.5 dBA
Housing Material: UL94V-0 Thermoplastic
Blade Material: UL94V-0 Thermoplastic

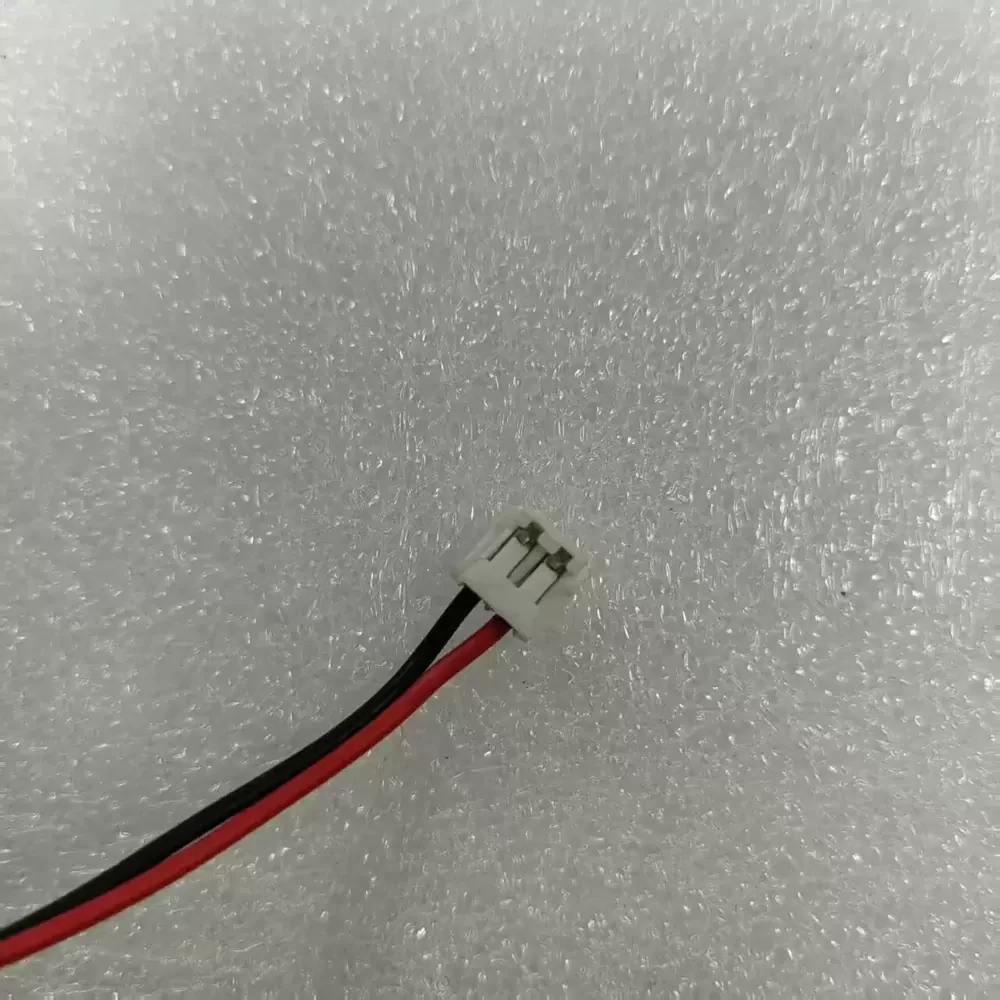

Termination: 2-Pin Connector
Lead Wire Length: 110mm
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: All
Certifications: UL, TUV, CE
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
The DF0602512SEMN is specifically designed for integration into industrial welding machines and high-precision laboratory instruments where consistent airflow is critical for component longevity. In power electronics, the DF0602512SEMN provides the necessary cooling to prevent thermal throttling in compact enclosures. Its standardized dimensions allow for seamless replacement in existing server racks, CNC controllers, and telecommunications hardware.
