Description

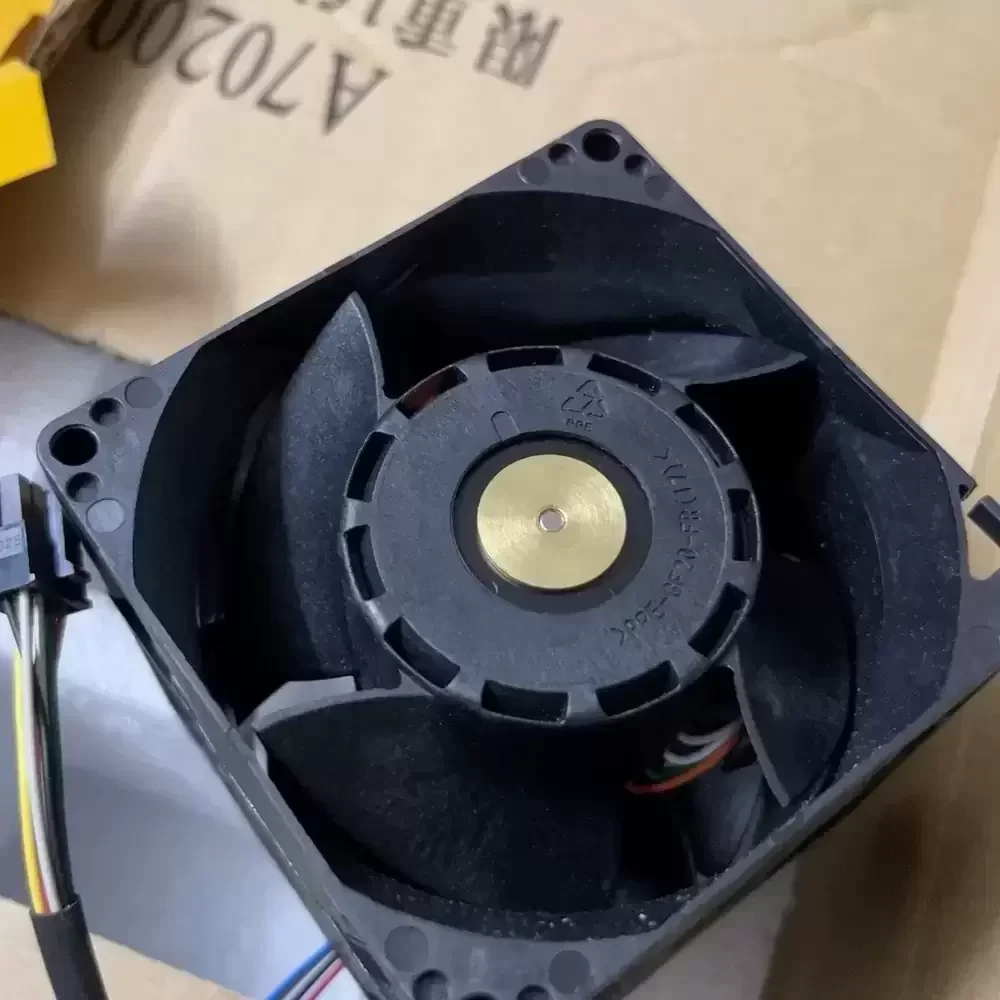

The AVC DFPC0880B2G-Y012 is a high-performance counter-rotating axial fan designed for mission-critical thermal management in high-density server environments. Utilizing advanced DC motor technology and a dual ball bearing architecture, this unit ensures exceptional structural rigidity and longevity under continuous operation. The aerodynamic design features contra-rotating blade sets to maximize static pressure and minimize flow impedance, effectively overcoming high thermal resistance in restricted chassis. With a substantial power rating, it delivers massive airflow required for cooling high-TDP components, maintaining optimal thermal impedance across the system.

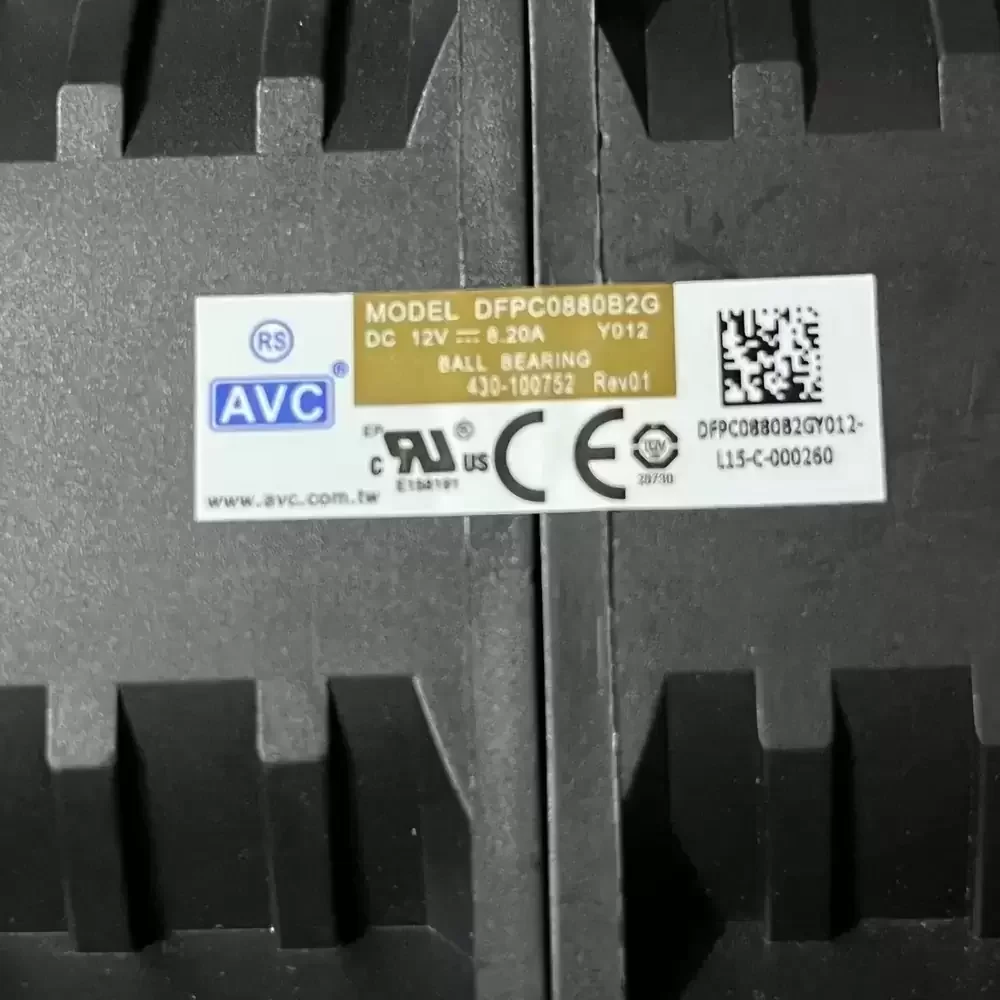

Model Number: DFPC0880B2G-Y012
Brand: AVC
Product Type: Counter-Rotating Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.8 – 13.2 VDC
Rated Current: 8.20 A
Power: 98.4 W
Rated Speed: 13500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 162.5 CFM (276.1 m³/h / 4.60 m³/min)
Max. Static Pressure: 68.5 mmH₂O (671.7 Pa / 2.70 inH₂O)
Dimensions: 80x80x80mm
Weight: 480g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM Control
Signal Output: Tachometer Sensor
Ingress Protection: IP54
Insulation Class: Class A
Noise Level: 72.5 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Termination: 4-Wire Leads with Connector
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Protection: Locked Rotor Protection, Reverse Polarity Protection
This heavy-duty cooling solution is engineered for high-static pressure environments such as 2U server racks, blade servers, and precision telecommunications equipment. The DFPC0880B2G-Y012 excels in forcing air through dense heatsinks and restricted enclosures found in cryptocurrency mining rigs and industrial automation systems. By integrating the DFPC0880B2G-Y012, engineers ensure reliable heat dissipation for sensitive electronics requiring aggressive airflow to prevent thermal throttling.
