Description

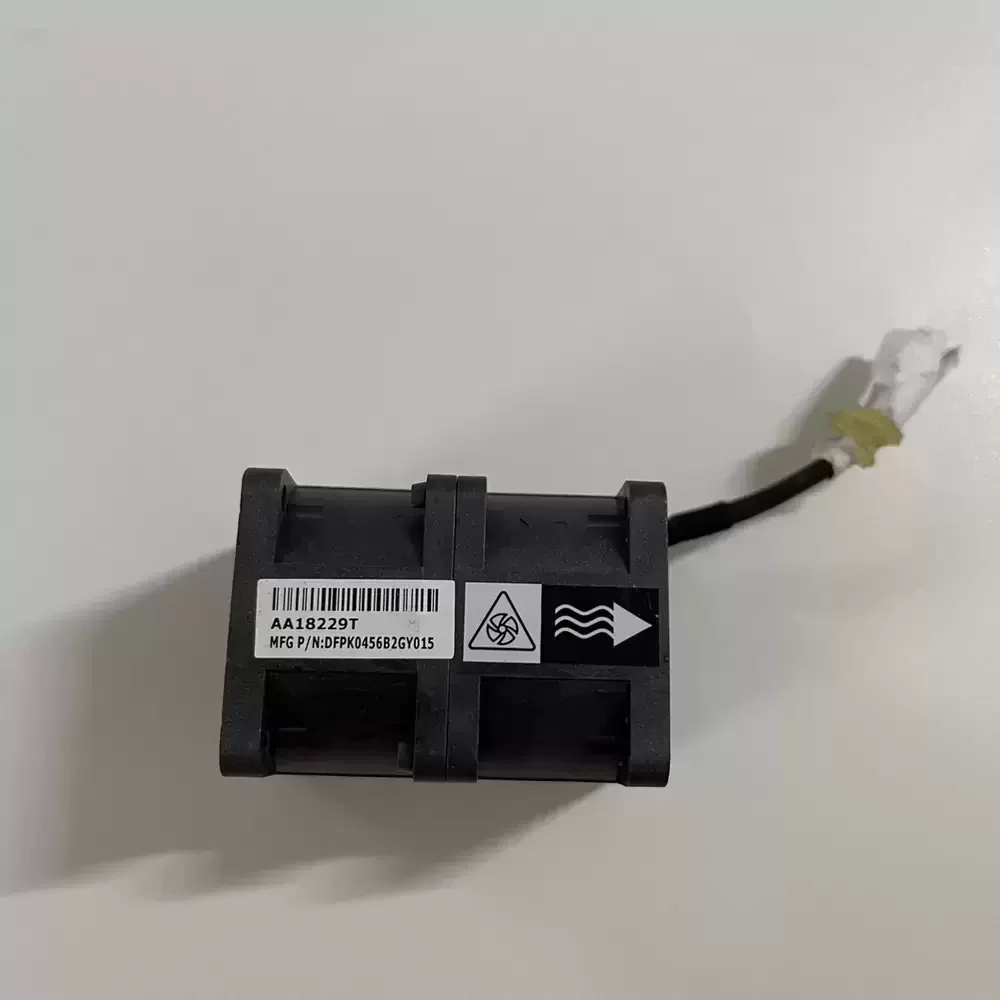

The AVC DFPK0456B2G-Y015 is a high-performance counter-rotating axial fan designed for extreme thermal management applications requiring substantial static pressure. Engineered with a dual-motor architecture within a compact 40x40x56mm frame, this unit utilizes advanced dual ball bearing technology to ensure operational longevity and structural rigidity under high-vibration conditions. The aerodynamic design features contra-rotating impellers that straighten airflow and maximize pressure generation, significantly reducing thermal impedance in dense electronic enclosures. Operating at 12VDC with a substantial current draw of 3.60A, it delivers exceptional volumetric efficiency, making it suitable for mission-critical cooling where standard axial fans fail to overcome system resistance.
Model Number: DFPK0456B2G-Y015
Brand: AVC (Asia Vital Components)
Product Type: Counter-Rotating Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 3.60 A
Power Input: 43.2 W
Dimensions: 40 x 40 x 56 mm
Bearing Type: Dual Ball Bearing
Speed Control: PWM (Pulse Width Modulation)
Termination: 4-Wire Lead
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Ingress Protection: Standard
Application: Agricultural Drones (XAG Spreader), 1U Servers
The DFPK0456B2G-Y015 is specifically engineered for high-density environments such as agricultural drone spreaders (specifically XAG series) and 1U server racks where backpressure is a significant challenge. By utilizing a counter-rotating design, the DFPK0456B2G-Y015 effectively forces air through dense heatsinks and restricted ducts found in precision agriculture equipment and telecommunications hardware. This model ensures reliable thermal dissipation for flight controllers and high-load processors, preventing thermal throttling during intensive operations.
