Description

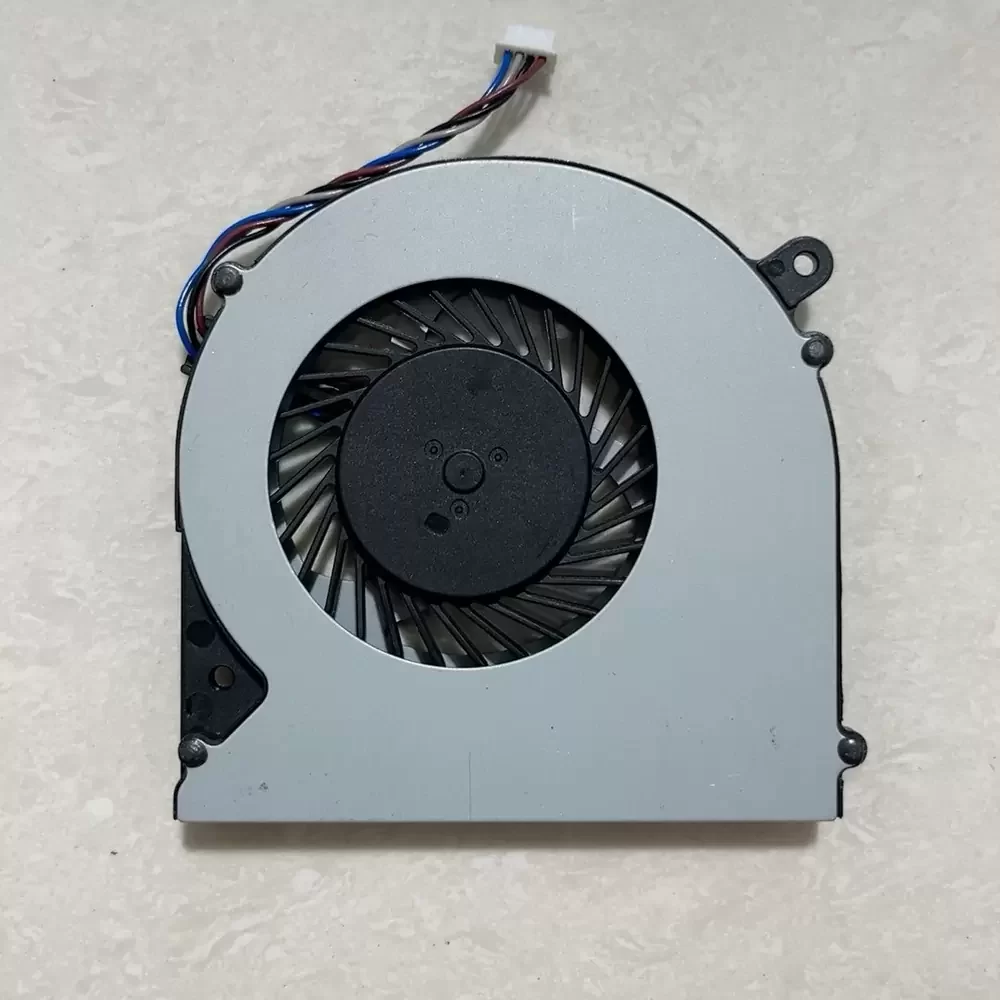

FCN DFS531105MC0T is a 5VDC 65mm Centrifugal Fan optimized for high-density thermal dissipation in mobile computing platforms. Engineered with a brushless DC motor and advanced aerodynamic impeller, this unit minimizes thermal impedance within restricted internal volumes. The structural rigidity of the housing ensures stable operation at 0.5A power consumption. Designed specifically for the Fujitsu Lifebook series, it maintains optimal operating temperatures during peak CPU loads. With a rated power of 2.5W and precise RPM control, it balances airflow efficiency with acoustic performance, ensuring long-term reliability in demanding portable environments.
Model Number: DFS531105MC0T
Brand: FCN
Product Type: Centrifugal Fan
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.5A
Power: 2.5W
Rated Speed: 4200 RPM
Bearing Type: Hydraulic Bearing
Max. Air Flow: 4.80 CFM (8.15 m³/h / 0.13 m³/min)
Max. Static Pressure: 3.45 mmH₂O (33.83 Pa / 0.13 inH₂O)
Dimensions: 65mm x 60mm x 10mm
Weight: 28g
Life Expectancy: 30,000 hours at 40°C
Speed Control: PWM / 3-Pin
Housing/Blade Material: UL94V-0 Plastic
Termination: 3-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection: Locked Rotor Protection, Reverse Polarity Protection
Certifications: CE, RoHS, TUV
DFS531105MC0T Applications
1. Fujitsu Lifebook A514/A544/A556 Series: Direct replacement fan designed to overcome high system impedance in slim chassis designs.
2. Mobile Workstation Thermal Repair: Ideal for restoring factory-spec cooling in AH544 and AH564 models to prevent CPU throttling and maintain structural integrity.
