Description

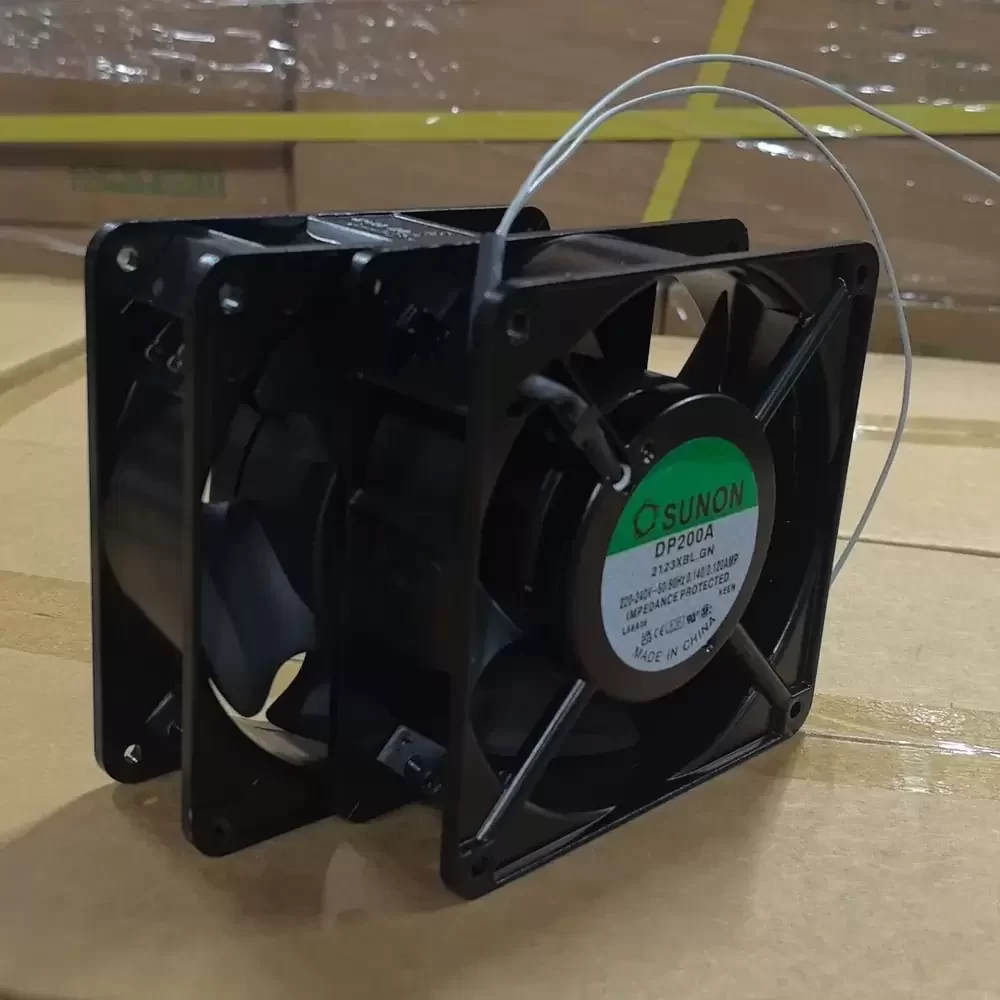

The SUNON DP200A 2123XBL.GN is a robust AC Axial Fan engineered for demanding industrial thermal management. Utilizing a precision ball bearing system, this unit ensures longevity and consistent performance under continuous operation. The design features a die-cast aluminum housing providing superior structural rigidity and thermal dissipation, paired with a thermoplastic PBT impeller optimized for aerodynamic efficiency. Operating at 220-240VAC, it delivers high volumetric airflow while maintaining a balanced noise profile. This model incorporates impedance protection to prevent motor burnout, making it a reliable solution for critical cooling infrastructure where thermal impedance and durability are paramount.
Model Number: DP200A 2123XBL.GN
Brand: SUNON
Product Type: AC Axial Fan
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Rated Current: 0.14/0.12 A
Power Consumption: 22/21 W
Rated Speed: 2700/3100 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 97/117 CFM (164.8/198.8 m³/h)
Max. Static Pressure: 0.34/0.39 inH₂O (8.6/9.9 mmH₂O)
Dimensions: 120x120x38 mm
Weight: 550 g
Housing Material: Die-Cast Aluminum
Blade Material: Thermoplastic PBT (UL94V-0)
Termination: 2 Lead Wires
Operating Temperature: -10 to +70 °C
Noise Level: 45/50 dBA
Motor Protection: Impedance Protected
Safety Approvals: UL, CUR, TUV, CE
Designed for high-reliability environments, the DP200A 2123XBL.GN excels in cooling industrial automation equipment and power electronics. Its robust construction makes it ideal for ventilating server racks, variable frequency drives (VFDs), and large-scale industrial cabinets where consistent airflow is critical. The DP200A 2123XBL.GN is also frequently deployed in CNC machinery and telecommunications enclosures, ensuring optimal operating temperatures for sensitive components.
