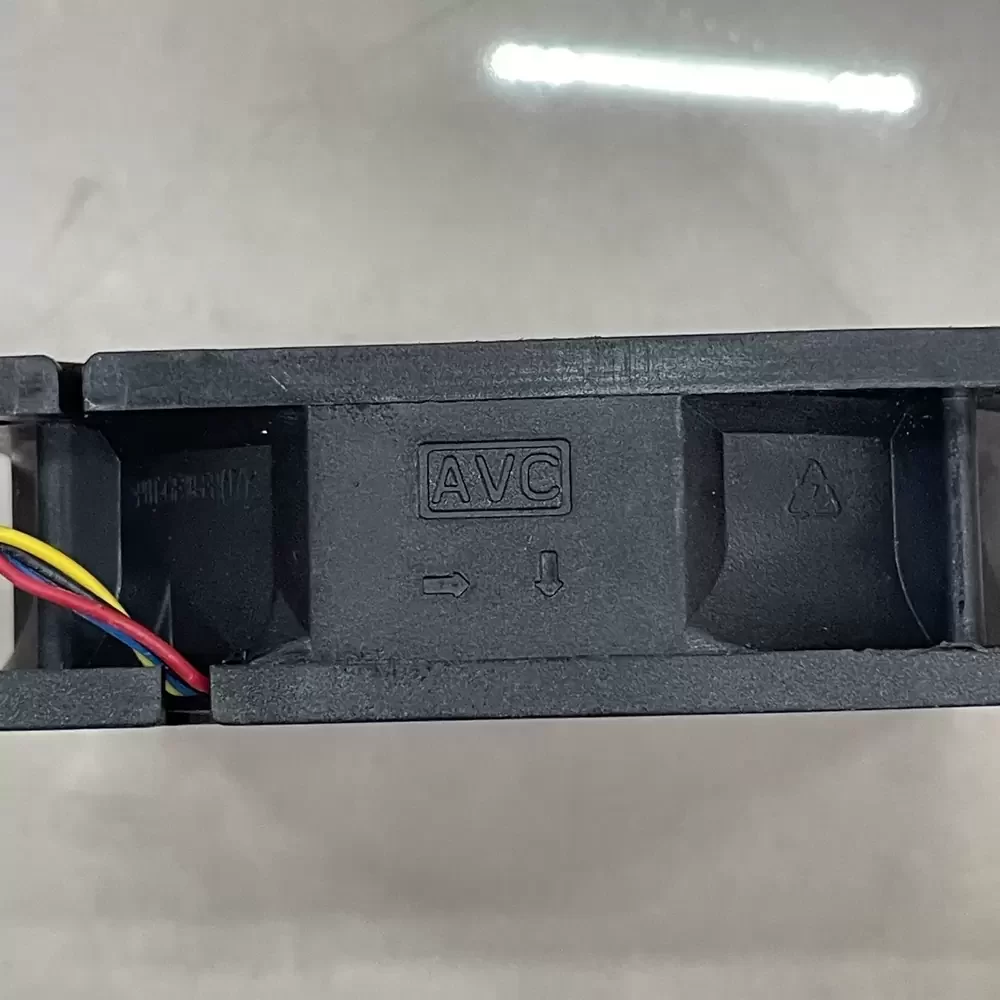

DS08025R12UP289-C01 AVC 12VDC 0.70A 80x80x25mm Axial Fan

Description

The AVC DS08025R12UP289-C01 is a high-performance 80mm axial cooling fan engineered for intensive thermal management in compact industrial environments. Operating at a nominal 12VDC with a 0.70A current draw, this unit delivers a substantial airflow of 53.82CFM at speeds reaching 4900RPM. It utilizes an advanced hydraulic bearing system to ensure extended operational longevity and reduced acoustic profiles compared to standard sleeve bearings. The integrated 4-wire PWM interface allows for precise pulse-width modulation speed control, optimizing cooling efficiency based on real-time thermal demands.

DS08025R12UP289-C01 Specifications
Model Number: DS08025R12UP289-C01
Brand: AVC (Asia Vital Components)
Category: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12VDC
Operating Voltage Range: 7.0 to 13.2VDC
Rated Current: 0.70A
Input Power: 8.4W
Rated Speed: 4900 RPM
Maximum Airflow: 53.82 CFM
Static Pressure: 0.35 in-H2O
Bearing Type: Hydraulic Bearing
Interface: 4-Wire PWM (Pulse Width Modulation)

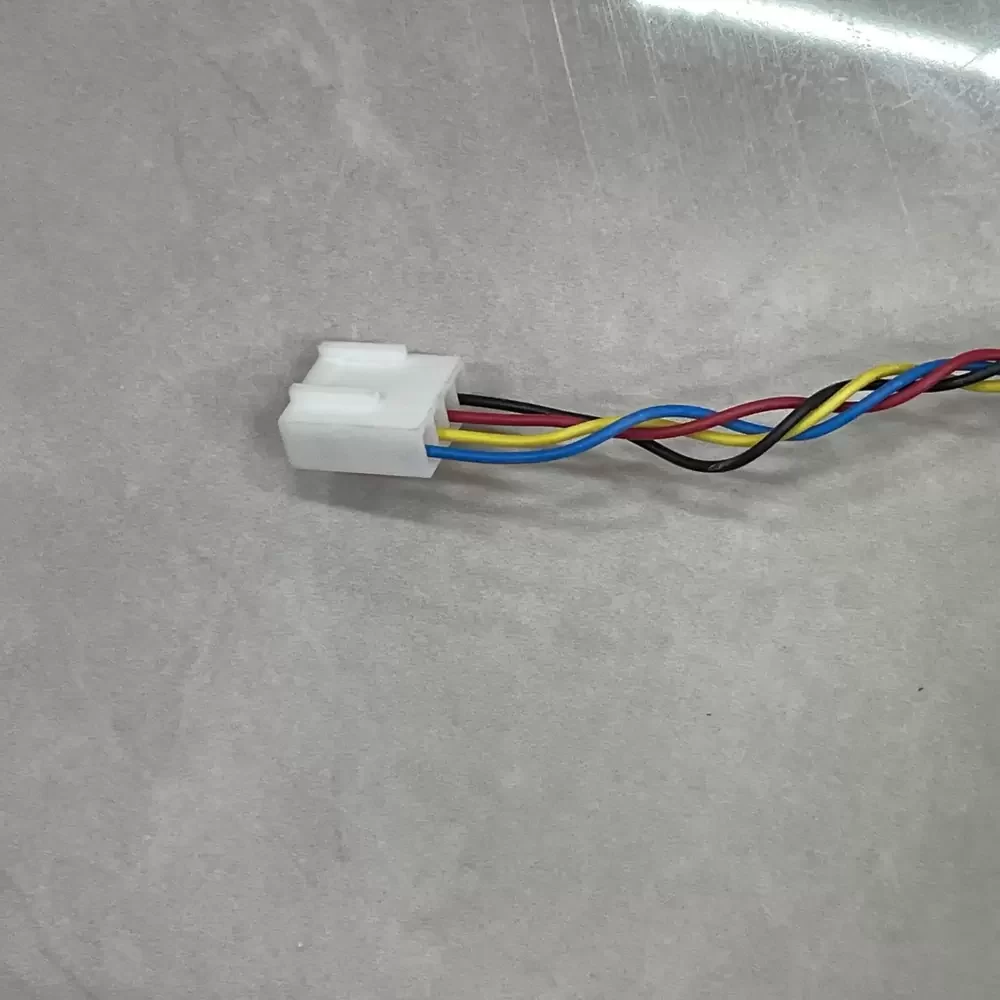

Connector Type: Standard 4-Pin
Wire Length: Approx. 180mm
Noise Level: 42.5 dB(A)
Expected Life: 50,000 Hours at 40°C
Frame Material: UL94V-0 Plastic
Impeller Material: UL94V-0 Plastic
Operating Temperature: -10 to +70°C
Storage Temperature: -40 to +75°C

DS08025R12UP289-C01 Applications
High-density thermal dissipation for 1U/2U rackmount servers, industrial workstation chassis, switch-mode power supplies (SMPS), and telecommunications networking enclosures.
