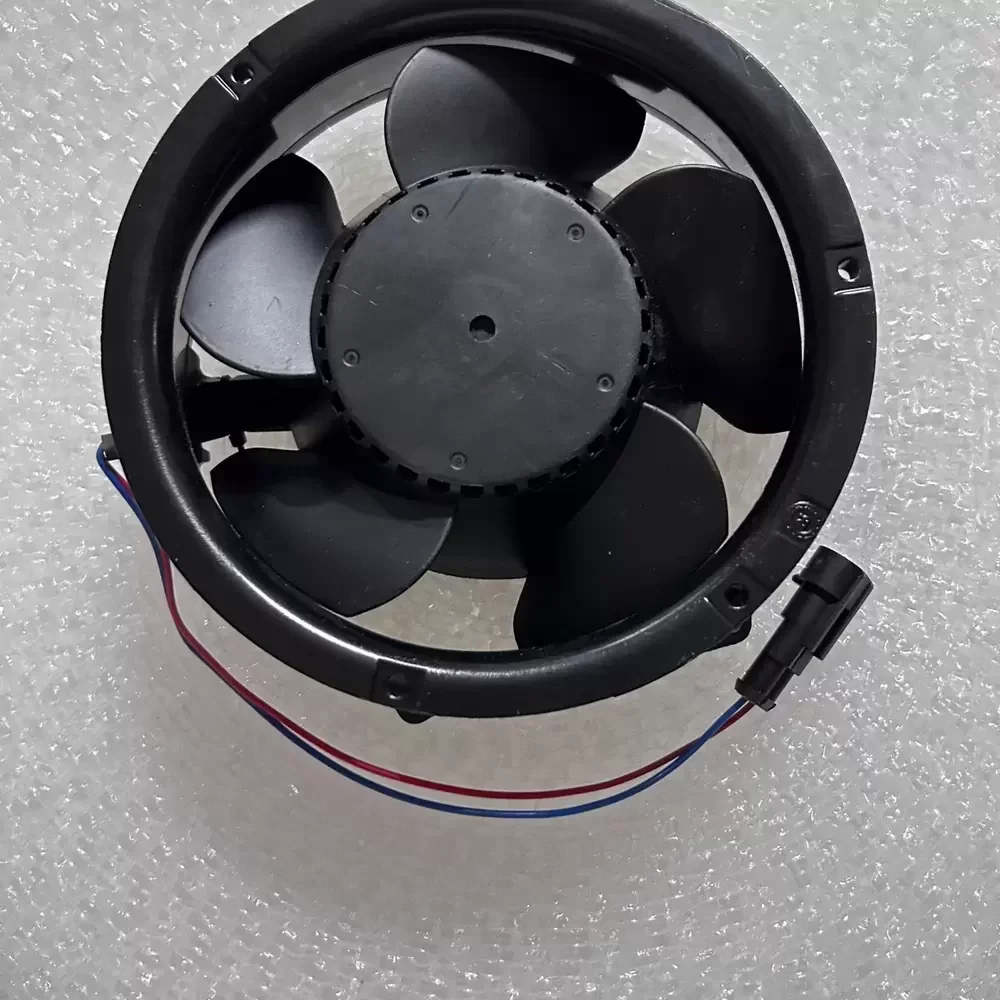

DV6224/2-549 ebm-papst 24VDC 172mm Round 37W Axial Fan

Description

The ebm-papst DV6224/2-549 is a high-capacity DC Axial Fan engineered for demanding industrial thermal management and power electronics cooling. Featuring a robust die-cast aluminum housing and a fiberglass-reinforced plastic impeller, this unit ensures structural rigidity under high static pressure conditions. The motor utilizes advanced commutation electronics and maintenance-free ball bearings to minimize thermal impedance and extend operational service life. Designed with a 172mm round profile, it delivers substantial airflow efficiency, making it an optimal solution for high-density electronic cooling and inverter applications requiring reliable heat dissipation.

Model Number: DV6224/2-549
Brand: ebm-papst
Product Type: DC Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 16.0 – 28.0 VDC
Rated Current: 1.625 A
Power Consumption: 37 W
Dimensions: 172 mm (Diameter) x 51 mm (Depth)
Bearing Type: Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: PA Plastic (Fiberglass Reinforced)
Termination: 2-Wire Lead
Operating Temperature: -20°C to +75°C
Motor Type: DC Brushless
Application: Inverter Cooling (Siemens/ABB)
Weight: Approx. 0.82 kg
Mounting: Flange Mount
Direction of Rotation: Counter-clockwise viewed toward rotor

The DV6224/2-549 is specifically calibrated for high-load industrial environments, serving as a critical cooling component in variable frequency drives and heavy-duty power inverters. Frequently utilized within Siemens and ABB inverter systems, the DV6224/2-549 maintains optimal operating temperatures in server cabinets, telecommunications infrastructure, and CNC machinery. Its high-pressure capabilities allow it to overcome the resistance of dense filter mats and tightly packed electronic components, ensuring continuous operation in automation control panels and renewable energy power converters.
