Description

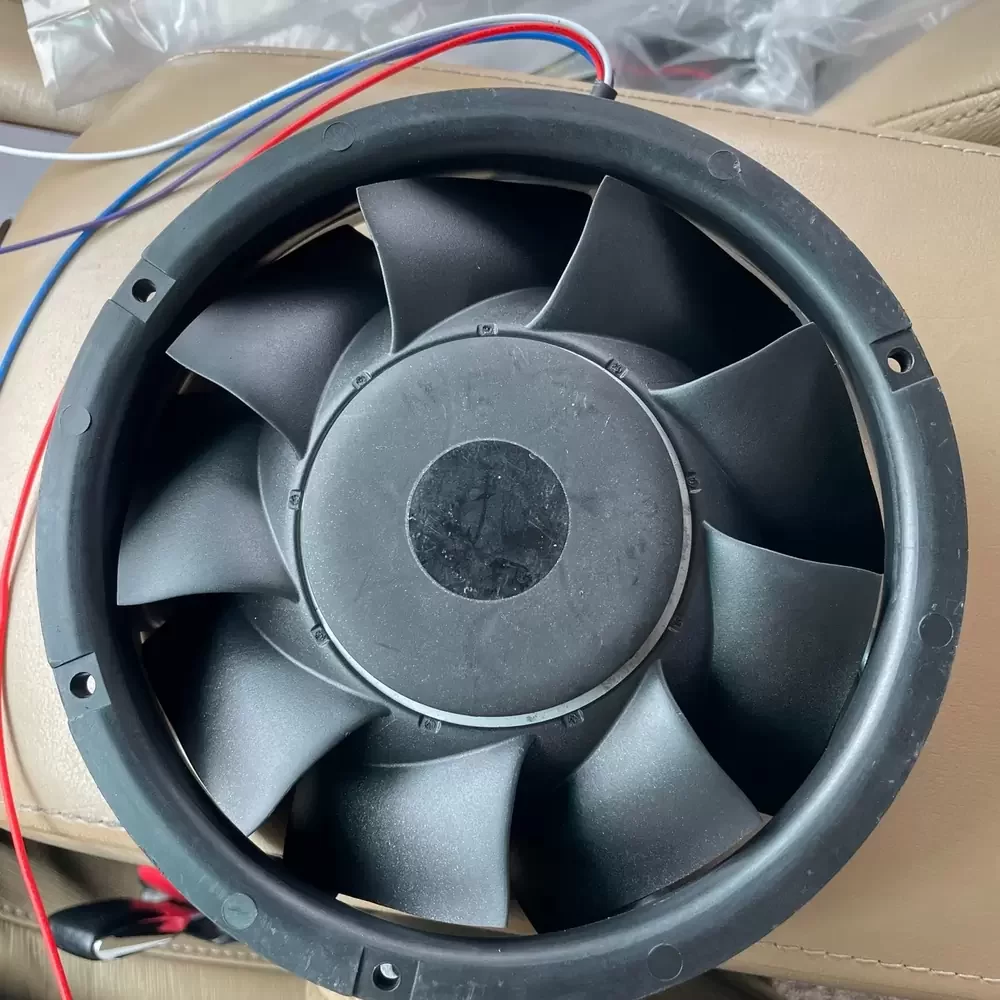

The ebm-papst DV6318/2TDH5P is a robust high-performance DC axial fan engineered for demanding industrial applications. Featuring a powerful DC motor, this unit delivers exceptional airflow and static pressure capabilities crucial for effective thermal management. Its advanced aerodynamic design, coupled with precision bearings, ensures reliable operation and extended service life. The fan’s structurally rigid housing and optimized impeller geometry contribute to superior airflow characteristics and efficient pressure development, minimizing thermal impedance within critical systems. Designed for continuous duty, the DV6318/2TDH5P maintains stable performance across its wide operating voltage range, making it an ideal solution for environments requiring stringent thermal control.
Model Number: DV6318/2TDH5P
Brand: ebm-papst
Product Type: Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 72.0 VDC
Rated Current: 8.1 A
Power: 388 W
Rated Speed: 7000 RPM
Bearing Type: Precision long-life bearings
Max. Air Flow: 700 CFM (1189 m³/h / 19.82 m³/min)
Max. Static Pressure: 75 mmH₂O (735 Pa / 2.95 inH₂O)
Dimensions: 172 x 150 x 51 mm
Weight: 1.2 kg
Life Expectancy: 70,000 hours at 40°C (L10)
Speed Control: PWM control, Tachometer output, Alarm output
Ingress Protection: IP54
Insulation Class: Class B
Noise Level: 75 dB(A)
Housing Material: Die-cast aluminum
Blade Material: PA plastic, UL94V-0
Termination: Lead wires
Operating Temperature: -20 to +70 °C
Storage Temperature: -40 to +80 °C
Mounting Orientation: Any
Certifications: CE, UL, cUL, VDE
Protection Features: Reverse polarity protection, Locked rotor protection, Over-temperature protection
The ebm-papst DV6318/2TDH5P is ideally suited for critical thermal management in high-density electronic enclosures and industrial machinery. Its robust design makes the DV6318/2TDH5P an excellent choice for applications such as server racks, telecommunications equipment, power supplies, and automation systems where reliable cooling is paramount. This fan ensures optimal operating temperatures in environments demanding continuous, high-volume airflow and significant static pressure development, safeguarding sensitive components from overheating and extending system longevity.
