Description

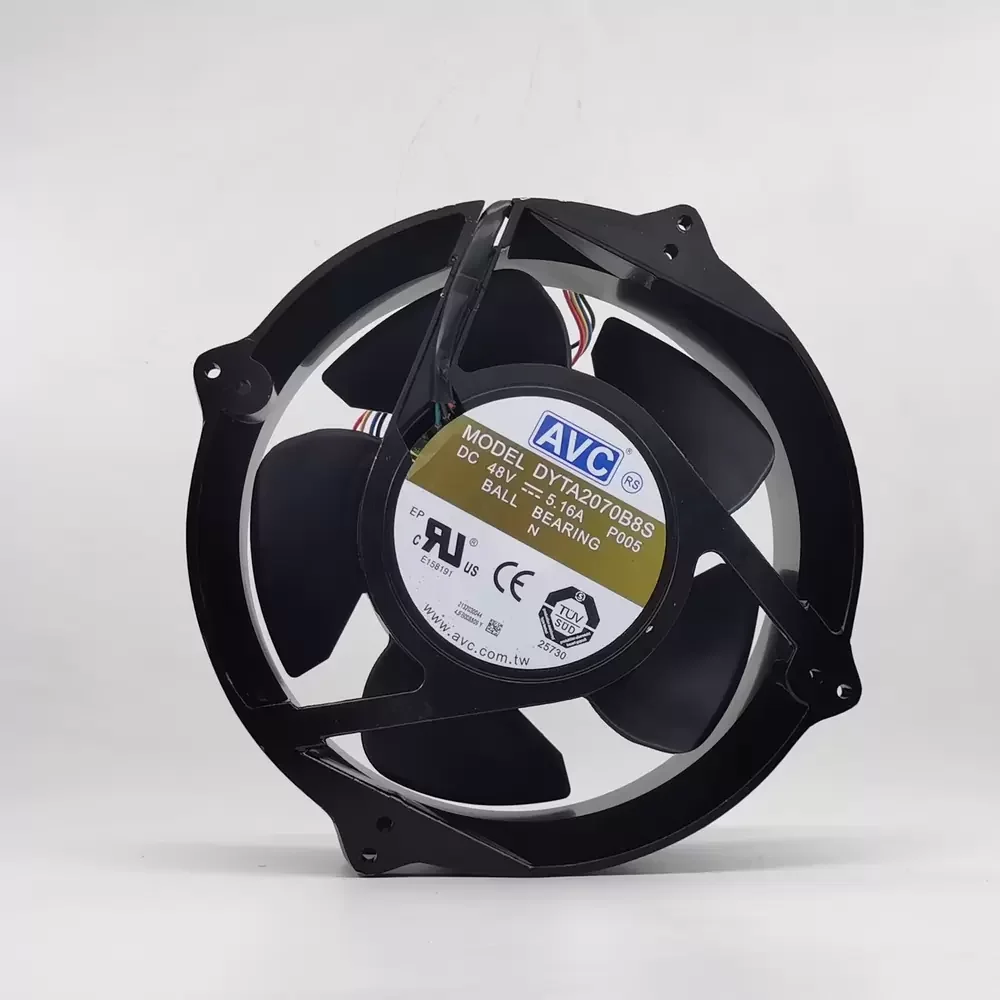

The AVC DYTA2070B8S-P005 is a high-performance industrial axial fan engineered for extreme thermal management applications requiring substantial airflow and static pressure. Built upon a robust 48VDC motor platform, this unit utilizes a precision ball bearing architecture to ensure longevity and rotational stability under high-speed operation. The 200x200x70mm frame design incorporates advanced aerodynamic blade geometry to minimize turbulence while maximizing air throughput, resulting in a high-efficiency cooling solution. With a power rating indicative of heavy-duty performance, this fan is designed to overcome high system impedance, making it ideal for critical environments where thermal reliability and structural rigidity are paramount.
Model Number: DYTA2070B8S-P005
Brand: AVC
Product Type: Industrial Axial Fan
Rated Voltage: 48VDC
Voltage Range: 36.0 – 57.0 VDC
Rated Current: 5.16 A
Power: 247.68 W
Bearing Type: Dual Ball Bearing
Dimensions: 200x200x70mm
Frame Material: Die-Cast Aluminum
Blade Material: Reinforced Plastic UL94V-0
Speed Control: PWM / Tachometer
Termination: Lead Wires
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP54 (Standard Industrial)
Life Expectancy: 70,000 Hours at 40°C
The DYTA2070B8S-P005 is specifically deployed in mission-critical scenarios such as high-density server racks, telecommunications base stations, and industrial frequency converters where rapid heat dissipation is essential. Due to its high-power motor and significant static pressure capabilities, the DYTA2070B8S-P005 is also frequently utilized in heavy machinery ventilation and custom cooling arrays for mining equipment.
