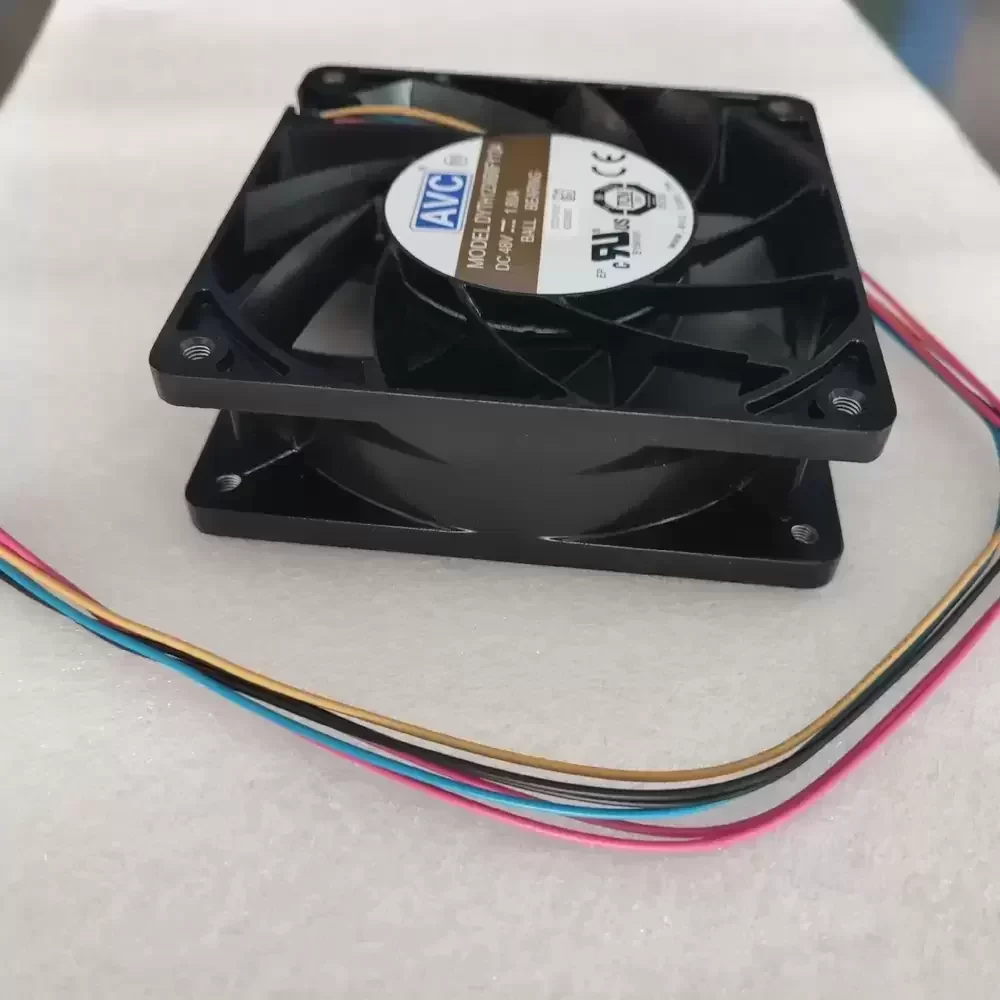

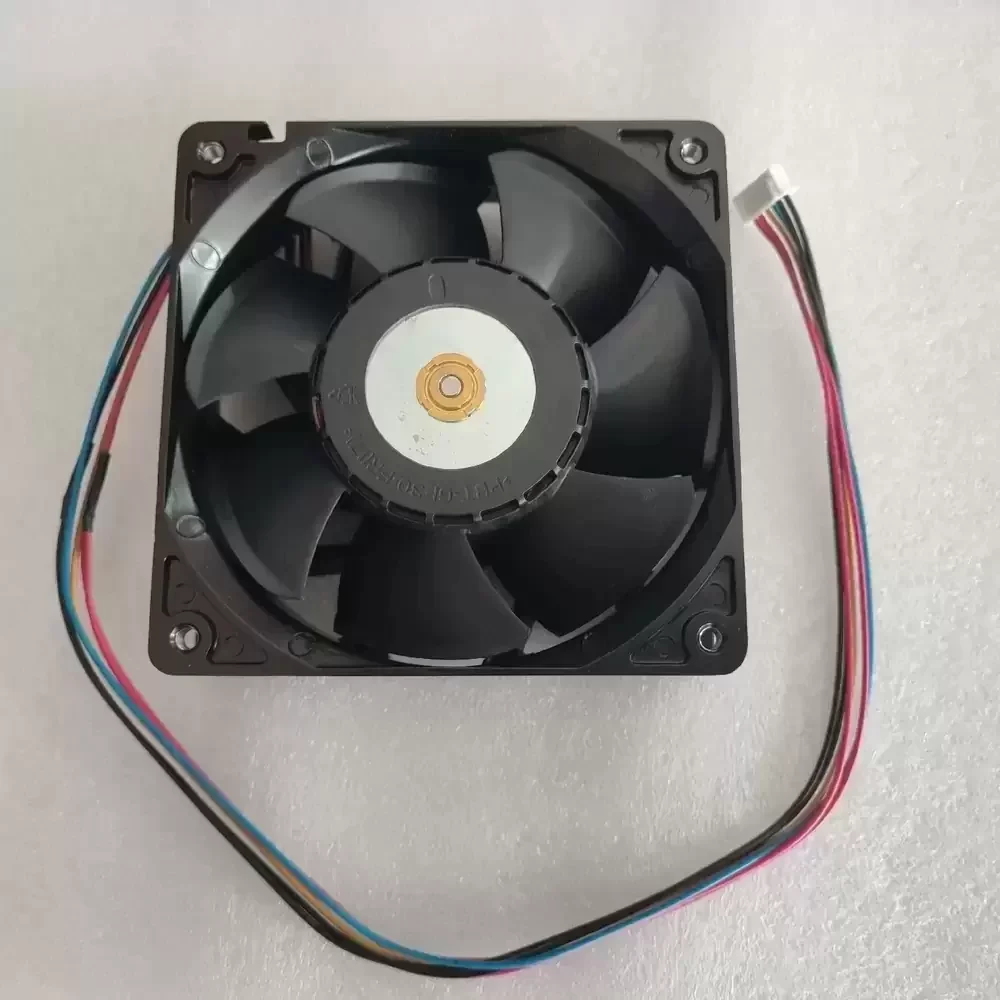

DYTH1238B8FY134 AVC 48VDC 120x120x38mm High Airflow Axial Fan

Description

The AVC DYTH1238B8FY134 is a high-performance industrial axial fan engineered for mission-critical thermal management applications requiring substantial airflow and pressure generation. Utilizing advanced DC motor technology and a robust dual ball bearing architecture, this unit ensures exceptional rotational stability and minimized friction, significantly extending operational lifespan under continuous high-load conditions. The aerodynamic blade design is optimized to deliver high static pressure, effectively overcoming system impedance in dense electronic enclosures. Constructed with a focus on structural rigidity, the DYTH1238B8FY134 maintains precise alignment and reduces vibration, making it an ideal solution for reducing thermal impedance in high-density server environments and telecommunications infrastructure requiring aggressive heat dissipation.

Model Number: DYTH1238B8FY134
Brand: AVC (Asia Vital Components)
Product Type: DC Axial Fan
Rated Voltage: 48 VDC
Voltage Range: 36.0 – 57.0 VDC
Rated Current: 1.80 A
Power Consumption: 86.4 W
Rated Speed: 5500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 210.38 CFM (357.4 m³/h / 5.95 m³/min)
Max. Static Pressure: 35.56 mmH₂O (348.7 Pa / 1.40 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 410 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: PWM / Tachometer Output
Ingress Protection: IP54
Noise Level: 64.0 dB(A)
Housing Material: PBT Plastic (UL94V-0)
Impeller Material: PBT Plastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Termination: 4-Wire Lead with Connector
Mounting Orientation: Any
Certifications: UL, cUL, TUV, CE, RoHS

The DYTH1238B8FY134 is specifically designed for demanding industrial and enterprise-level cooling scenarios where reliability is paramount. Common deployments include high-density server racks, telecommunications base stations, and precision medical instrumentation where consistent airflow is required to dissipate substantial heat loads. The DYTH1238B8FY134 excels in environments with high back-pressure, such as chassis with dense component layouts or restrictive filtration systems, ensuring critical components remain within safe operating temperature ranges to prevent thermal throttling or hardware failure.
