Description

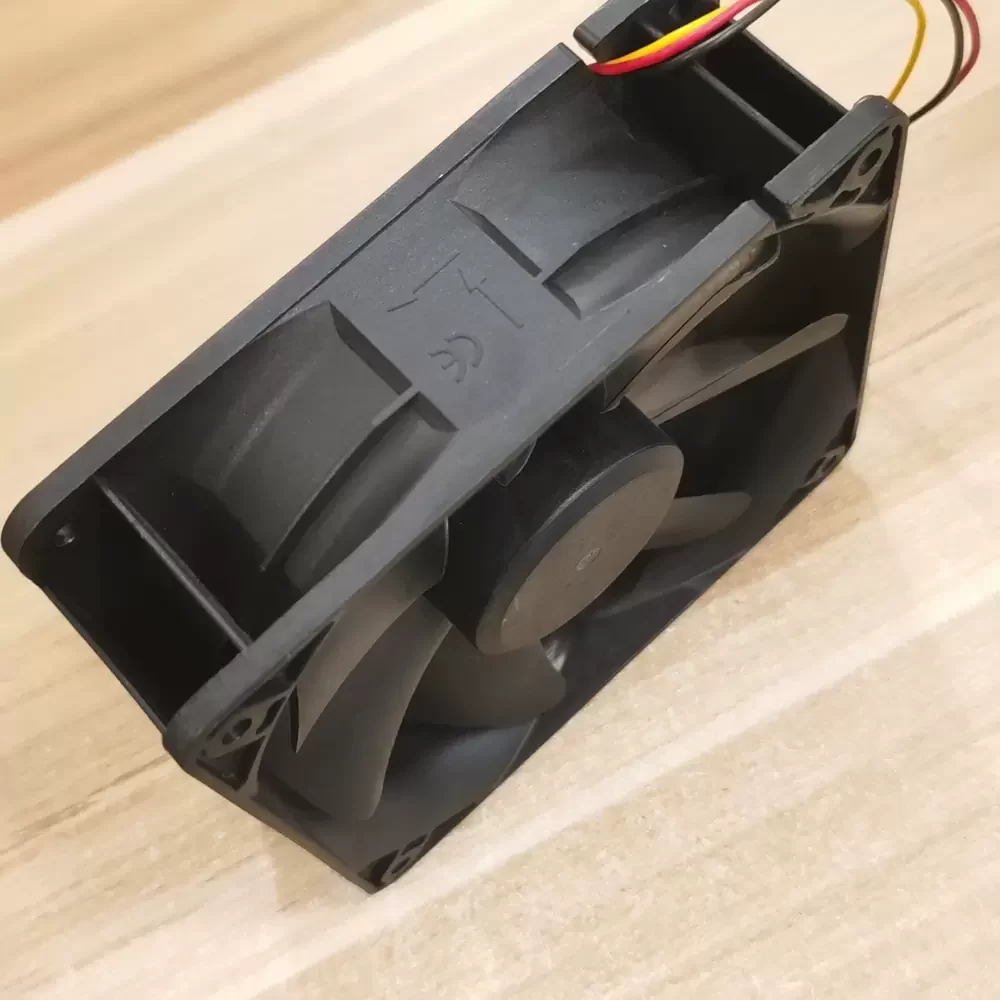

The Sunon EEC0382B2-000C-G99 is a DC Axial Fan engineered for critical industrial thermal management and power electronics cooling. Utilizing advanced DC motor technology combined with a precision dual ball bearing architecture, this unit ensures minimal friction and extended service life under continuous heavy-duty operation. The aerodynamic impeller design optimizes airflow efficiency while maintaining structural rigidity, effectively lowering thermal impedance in high-density electronic enclosures and variable frequency drive systems. The robust construction ensures reliability in demanding environments requiring consistent heat dissipation.
Model Number: EEC0382B2-000C-G99
Brand: Sunon
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 12.0 – 27.6 VDC
Power: 5.4 W
Rated Current: 0.225 A
Rated Speed: 2600 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 116.0 CFM (197.1 m³/h / 3.28 m³/min)
Max. Static Pressure: 0.26 inH₂O (6.60 mmH₂O / 64.7 Pa)
Dimensions: 120mm x 120mm x 38mm
Weight: 214 g
Life Expectancy: 70,000 Hours at 40°C
Noise Level: 44.0 dB(A)
Termination: 3-Wire / Lead Wires
Feature: Fault Alarm / Locked Rotor Protection
Housing Material: Thermoplastic PBT (UL94V-0)
Blade Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP Ratings Available (Check Datasheet)
Compliance: RoHS, UL, TUV, CE
The EEC0382B2-000C-G99 is specifically designed for integration into variable frequency drives (VFDs), inverters, and industrial automation control panels where fault detection is critical. The 3-wire configuration provides a fault alarm signal, alerting systems to fan failure or locked rotor conditions, which is essential for protecting sensitive electronics in server racks and power supplies. By installing the EEC0382B2-000C-G99, engineers ensure sustained cooling performance and system longevity in manufacturing equipment and telecommunications infrastructure.
