Description

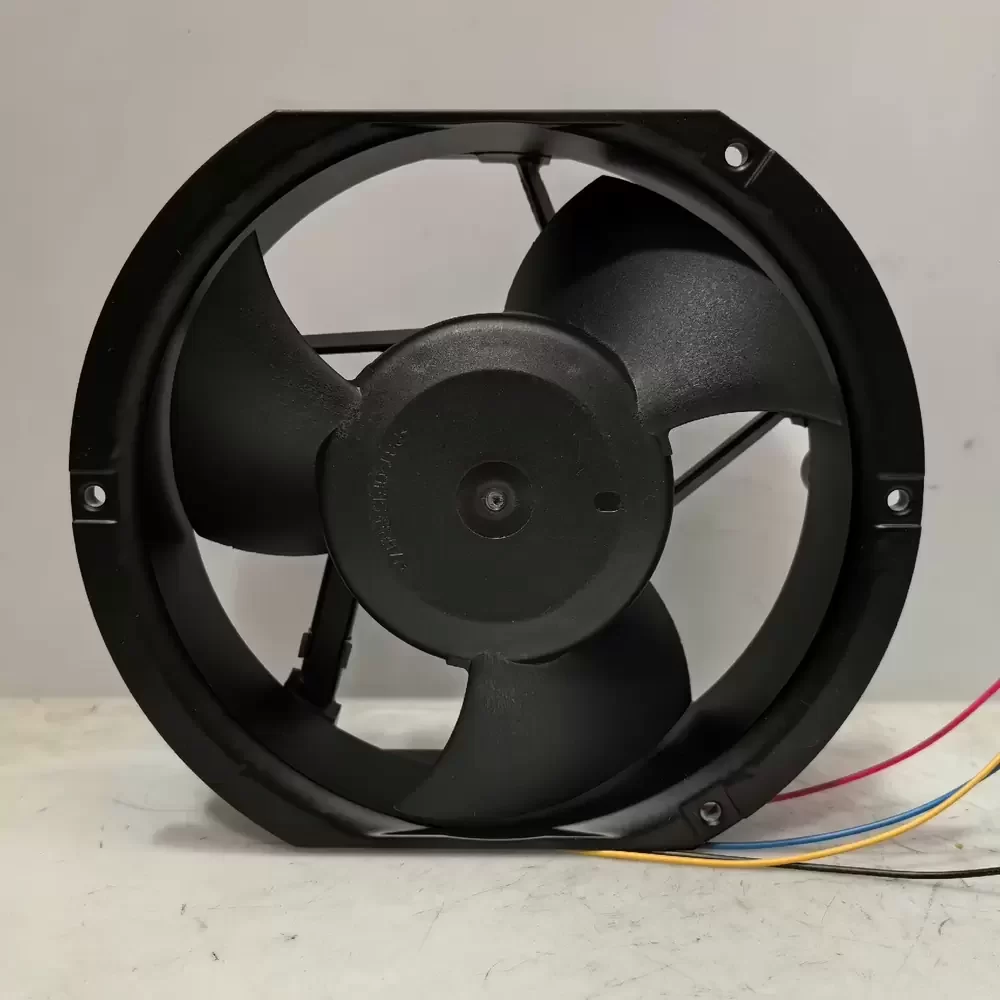

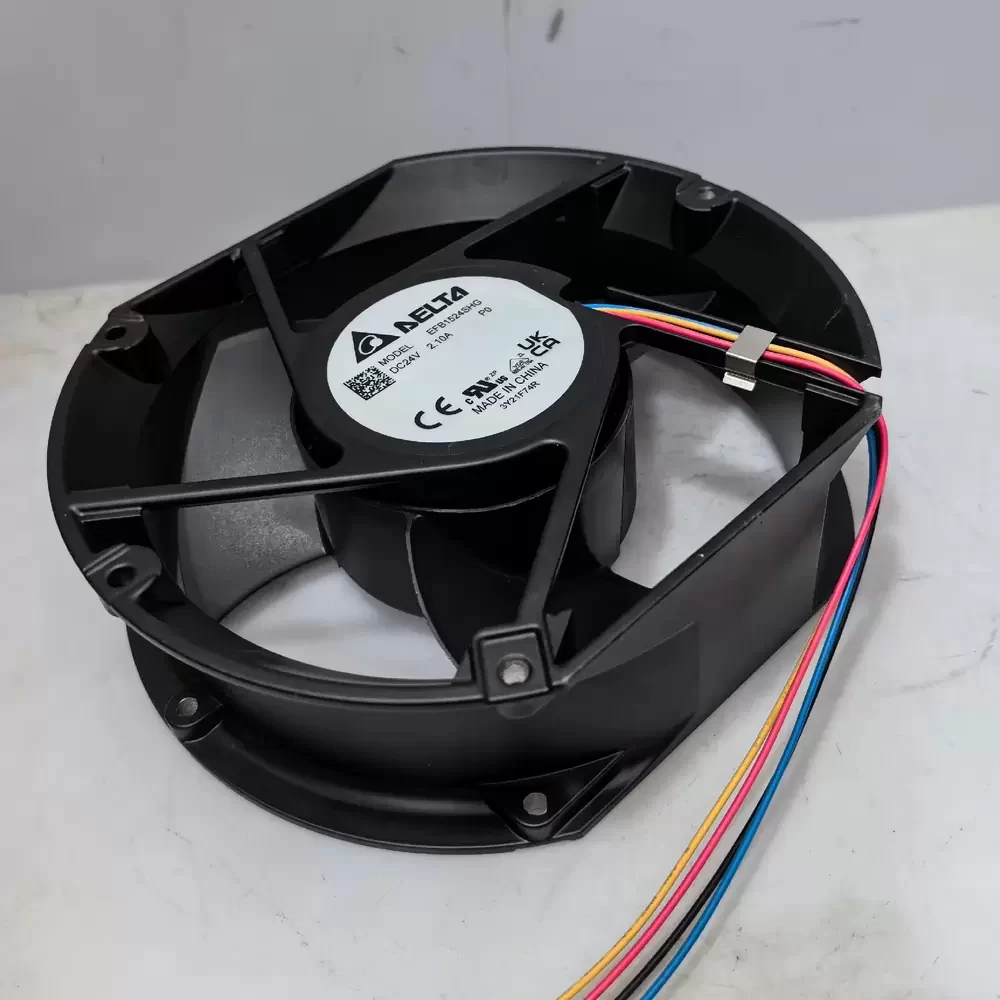

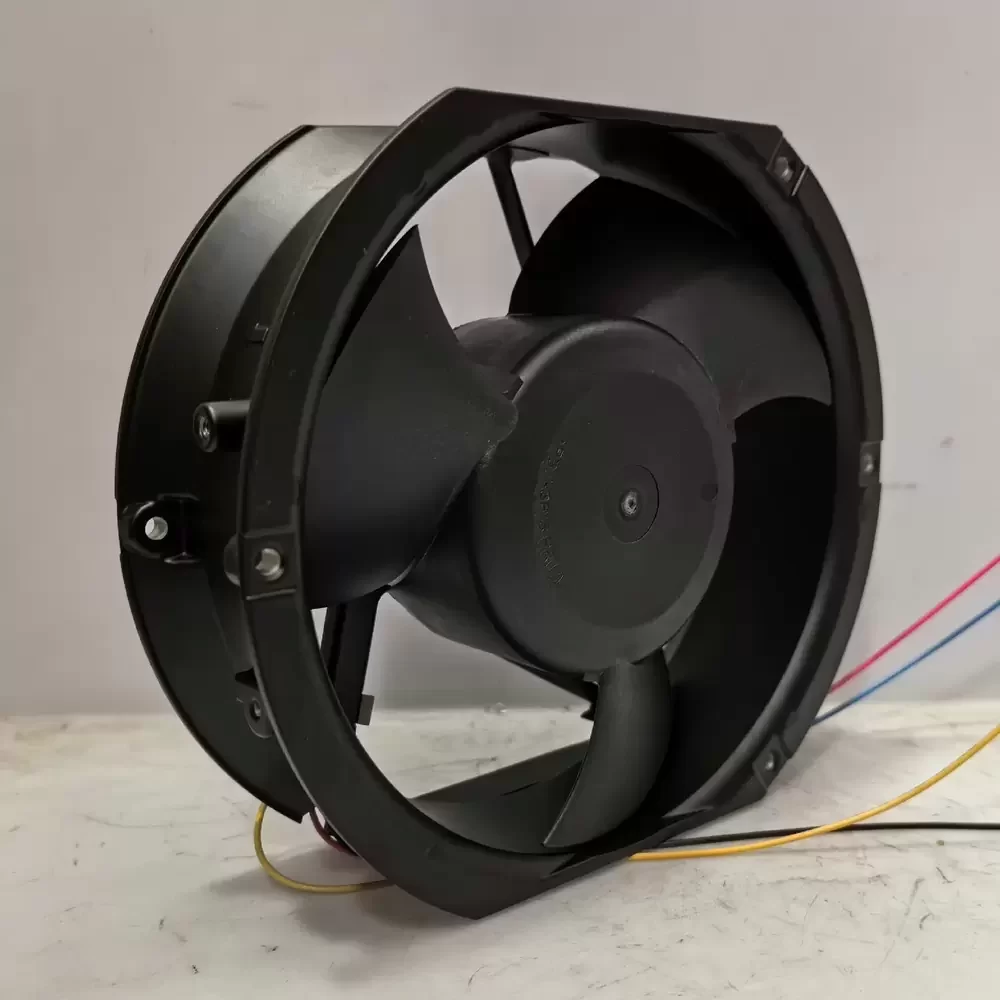

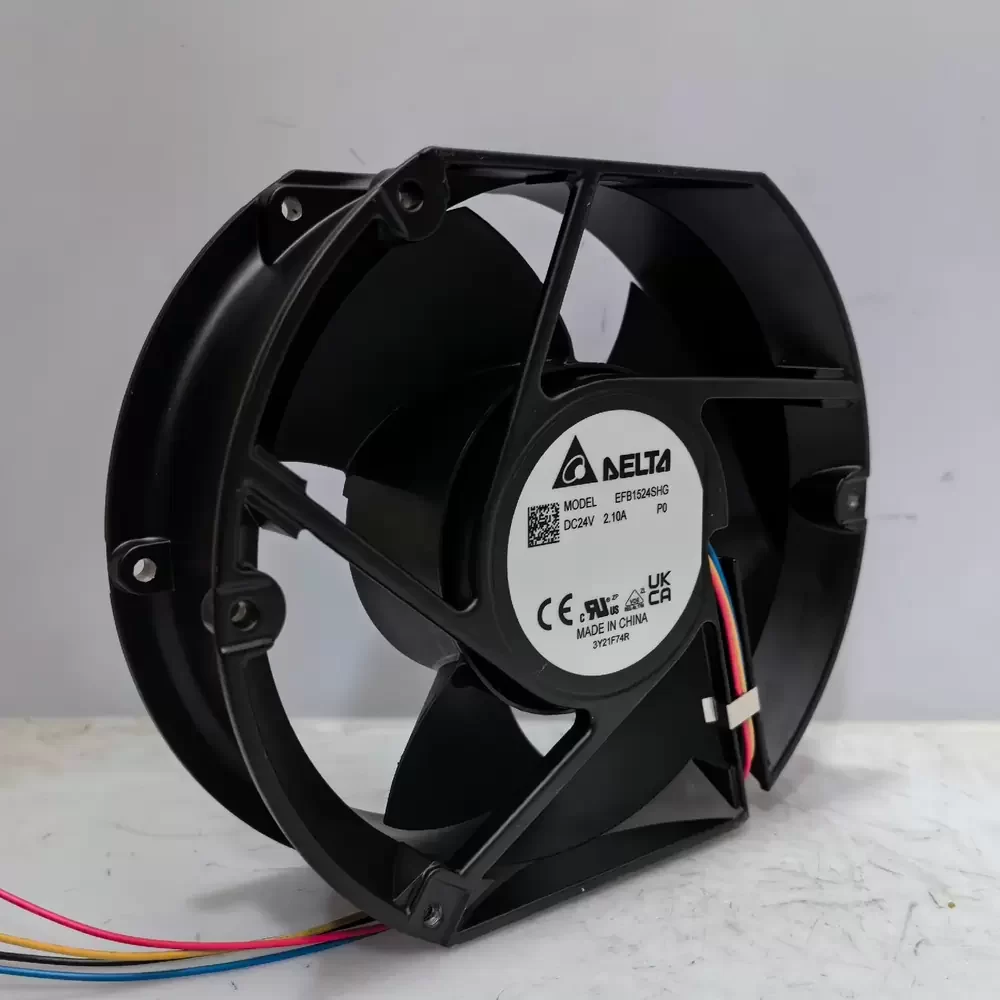

The Delta EFB1524SHG-P0 is a high-capacity DC Axial Fan engineered for critical thermal management in industrial electronics and power conversion systems. Featuring a robust DC brushless motor and a precision ball bearing architecture, this unit ensures minimized friction and extended operational longevity under continuous high-load conditions. The aerodynamic impeller design optimizes static pressure capabilities while maintaining efficient airflow throughput, significantly reducing thermal impedance within high-density enclosures. Its structural rigidity, provided by a die-cast aluminum frame, and 4-wire PWM speed control interface allow for dynamic thermal regulation, making it an ideal component for demanding cooling applications requiring reliability and precise airflow modulation.
Model Number: EFB1524SHG-P0
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 2.10 A
Power Consumption: 50.4 W
Rated Speed: 4000 RPM
Bearing Type: Maintenance-Free Ball Bearing
Max. Air Flow: 325.0 CFM (9.20 m³/min)
Max. Static Pressure: 23.5 mmH₂O (230 Pa / 0.92 inH₂O)
Dimensions: 172mm x 150mm x 51mm
Frame Style: Oval (Side Cut)
Weight: 840 g
Life Expectancy: 70,000 Hours at 40°C
Speed Control: 4-Wire PWM / Tachometer Output
Noise Level: 61.0 dB-A
Housing Material: Die-Cast Aluminum
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Termination: Lead Wires (Red +, Black -, Blue/Yellow Signal)
Safety Certifications: UL, cUL, TUV, CE
Motor Protection: Polarity Protection, Locked Rotor Protection
Designed for high-static pressure environments, the EFB1524SHG-P0 is extensively utilized in industrial automation and power conversion systems. Common deployment scenarios include variable frequency drive (VFD) inverters, large-scale server rack cabinets, and telecommunications base stations where consistent heat dissipation is critical. The EFB1524SHG-P0 ensures component stability in CNC machinery and medical instrumentation, effectively managing thermal loads in restricted spaces to prevent system throttling or failure.
