Description

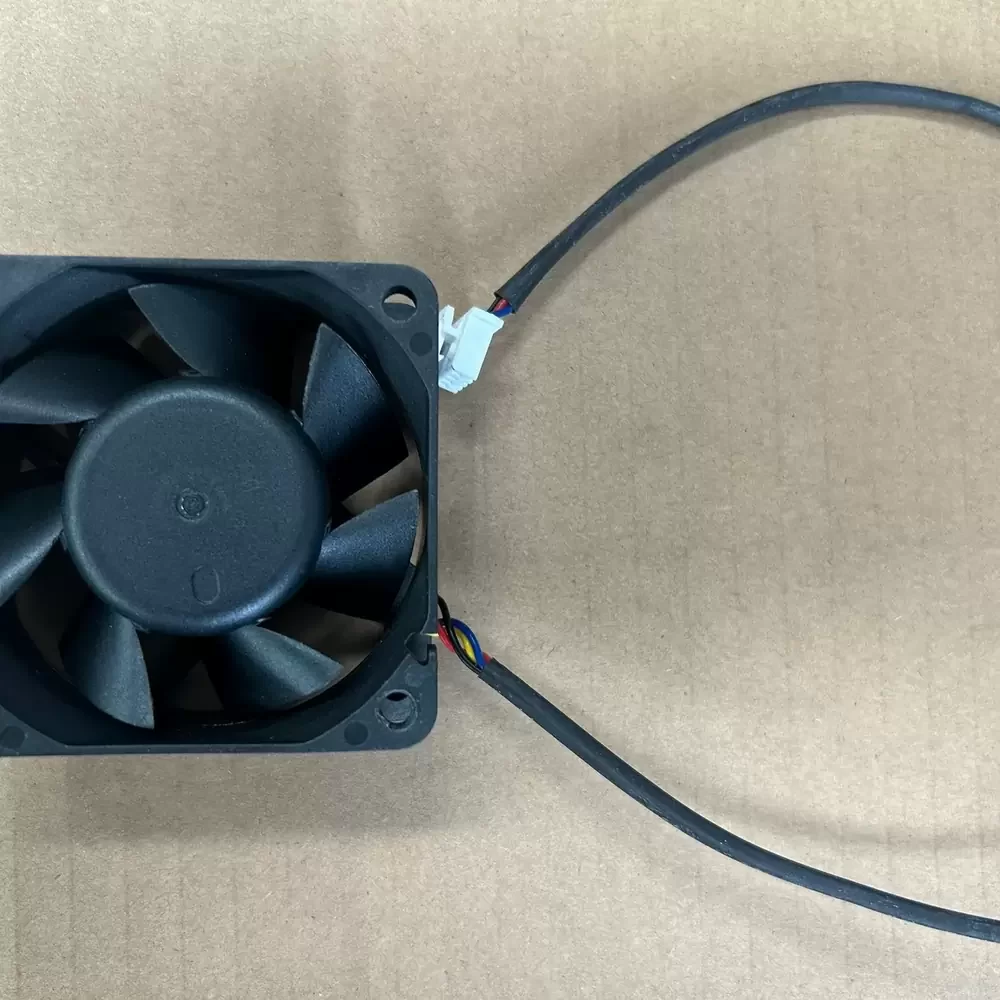

DWPH EFC-06E12D is a 12VDC 60x60x25mm Axial Fan optimized for high-density thermal management in compact enclosures where overcoming significant system impedance is critical. This unit features a sophisticated dual ball bearing architecture and a high-efficiency 7-blade impeller design to ensure structural rigidity and long-term reliability. Operating at a rated current of 0.60A and a high-velocity 5800 RPM, it delivers substantial static pressure to penetrate tightly packed components. The integration of 4-wire PWM speed control and an RD signal allows for precise thermal regulation and real-time rotation monitoring, minimizing acoustic footprint while maximizing cooling efficiency in demanding industrial environments.
Model Number: EFC-06E12D
Brand: DWPH (Dongweifeng)
Product Type: Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.60 A
Power: 7.2 W
Rated Speed: 5800 RPM
Bearing Type: Dual Ball Bearing
Dimensions: 60 x 60 x 25 mm
Blade Count: 7 Blades
Speed Control: PWM (Pulse Width Modulation)
Signal Output: RD (Rotation Detector) Signal
Termination: 4-Wire Lead Wires
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Life Expectancy: 70,000 Hours at 40°C
EFC-06E12D Applications
1. 1U/2U Server Chassis: The 5800 RPM output and high static pressure are engineered to overcome the airflow resistance of dense internal hardware and drive arrays.
2. Industrial VFD Cooling: Ideal as a replacement fan for variable frequency drives where high-velocity air movement is required to maintain power semiconductor temperatures.
3. Network Switch and Router Maintenance: Provides the necessary thermal exchange for high-throughput telecommunications equipment requiring 4-wire PWM precision control.
