Description

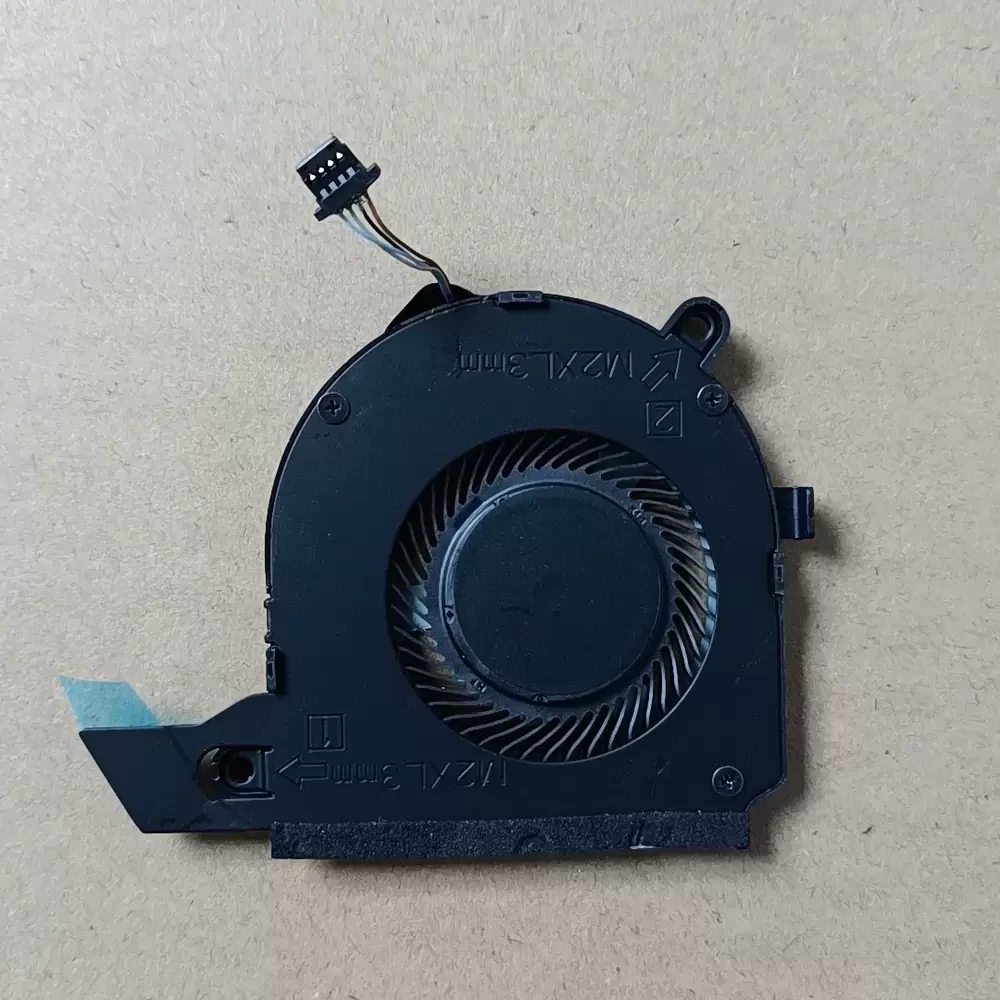

The DELL EG50040S1-CJ00-S9A is a specialized laptop centrifugal fan designed for high-efficiency thermal management in portable computing environments. Operating at a rated 5VDC with a current draw of 0.31A, this compact cooling solution provides reliable heat dissipation for the DELL Latitude 5310 and E5310 series. As an essential industrial cooling fan component, it utilizes a brushless motor design to maintain optimal airflow and static pressure within tight chassis constraints. This 5VDC blower ensures the longevity of internal hardware by preventing thermal throttling during intensive operations, making it a critical replacement part for maintaining system stability and performance.
Model Number: EG50040S1-CJ00-S9A
Brand: DELL
Product Type: Laptop Centrifugal Fan
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.31A
Power: 1.55W
Rated Speed: 4800 RPM
Bearing Type: Fluid Dynamic Bearing
Max. Air Flow: 4.8 CFM
Max. Static Pressure: 5.4 mmH2O
Dimensions: 50x50x5mm
Weight: 25g
Life Expectancy: 30,000 Hours
Termination: 4-Pin Connector
Housing Material: UL94V-0 Plastic
Blade Material: UL94V-0 Plastic
Operating Temperature: -10C to +70C
Storage Temperature: -40C to +75C
Speed Control: PWM Support
Protection: Locked Rotor Protection
The EG50040S1-CJ00-S9A is primarily engineered for integration into the DELL Latitude 5310 and E5310 laptop series to manage CPU and GPU thermals. Due to its slim profile and precise mounting points, the EG50040S1-CJ00-S9A is also suitable for compact embedded systems and small form factor industrial controllers requiring active air cooling.
