Description

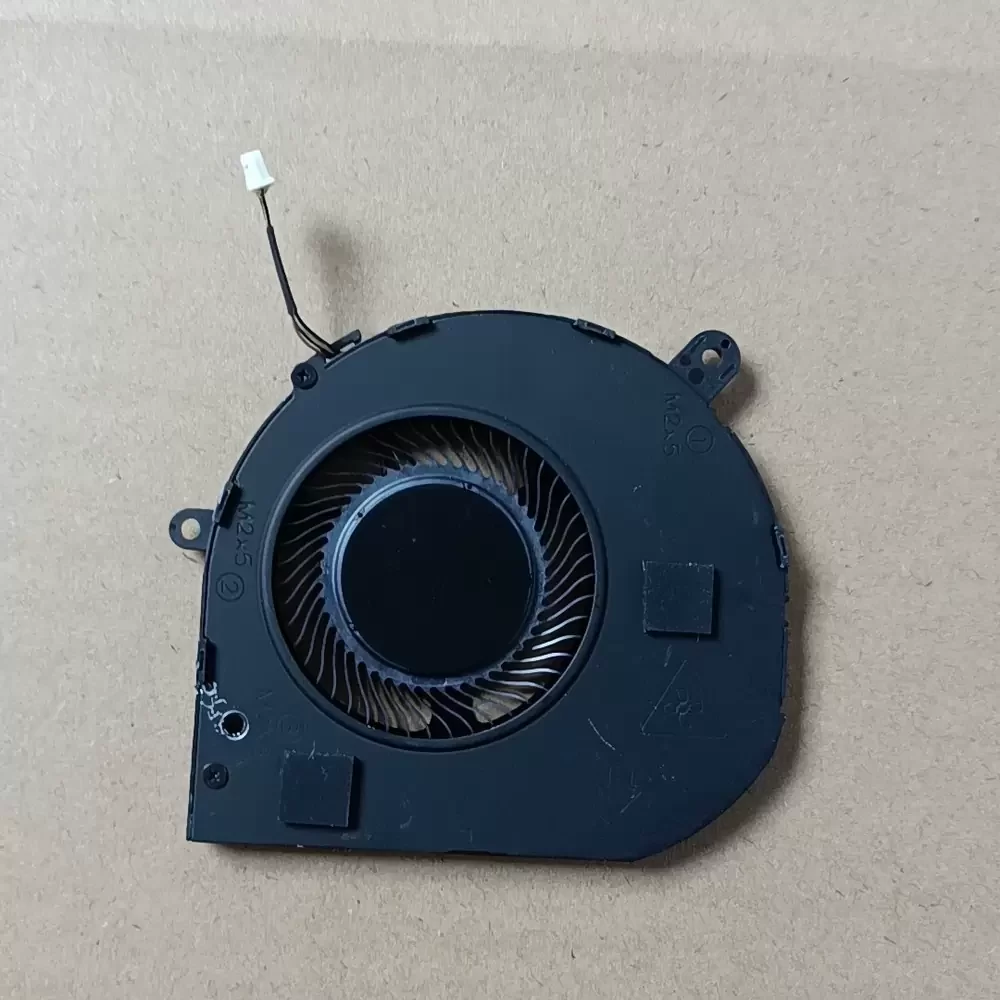

The SUNON EG50040S1-CJ60-S9A is a 5VDC 50mm Blower optimized for thermal management in ultra-slim mobile workstations. Engineered with SUNON advanced motor technology, this unit minimizes thermal impedance within constrained chassis environments. The aerodynamic impeller design is specifically tuned to maintain structural rigidity while delivering a concentrated airflow of 3.2CFM at a rated current of 0.45A. Utilizing a high-reliability bearing architecture, it ensures long-term stability for critical computing tasks. This blower is a precise replacement fan for Dell Latitude and Precision series, designed to overcome high system impedance in compact heat sink assemblies while maintaining low acoustic profiles during peak CPU/GPU loads.
Model Number: EG50040S1-CJ60-S9A
Brand: SUNON
Product Type: DC Blower
Rated Voltage: 5VDC
Voltage Range: 4.5 – 5.5 VDC
Rated Current: 0.45A
Power: 2.25W
Rated Speed: 5200 RPM
Bearing Type: MagLev
Max. Air Flow: 3.2 CFM (5.44 m³/h / 0.09 m³/min)
Max. Static Pressure: 12.8 mmH2O (125.5 Pa / 0.50 inH2O)
Dimensions: 50mm x 50mm x 5mm
Weight: 22g
Life Expectancy: 50,000 Hours at 40°C
Termination: 4-Pin Connector
Part Number: 06T7HN, P80F, DC28000PKSL
Housing Material: UL94V-0 Thermoplastic
Blade Material: UL94V-0 Thermoplastic
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Certifications: CE, TUV, UL
Protection: Auto Restart, Polarity Protection
EG50040S1-CJ60-S9A Applications
1. Dell Latitude 5500/5510 Thermal Modules: Provides the necessary static pressure to drive heat away from the CPU through dense fin stacks in 15-inch business laptops.
2. Dell Precision 3540/3550 Mobile Workstations: Acts as a critical replacement fan to maintain thermal equilibrium during intensive CAD and rendering workloads.
3. Ultra-Slim Embedded Systems: Ideal for low-profile industrial PCs where vertical clearance is limited and directional exhaust is required to prevent heat soak.
