Description

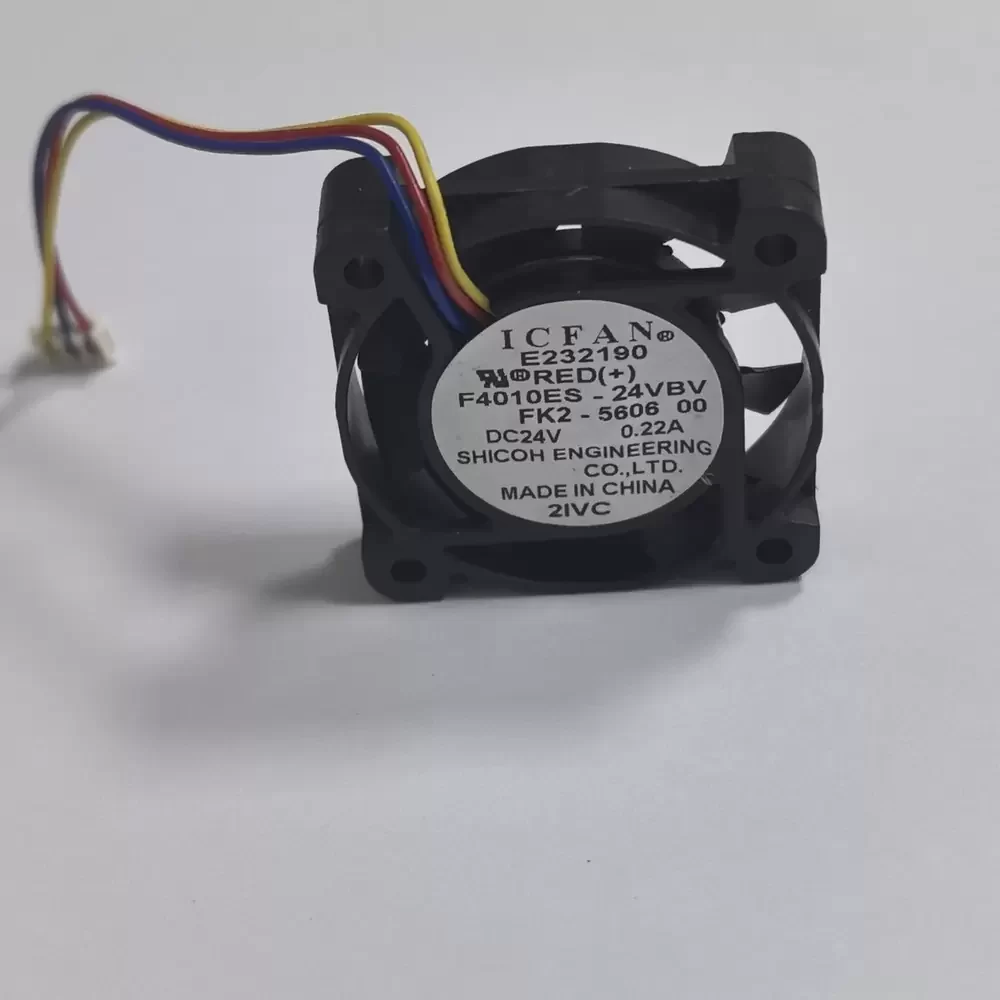

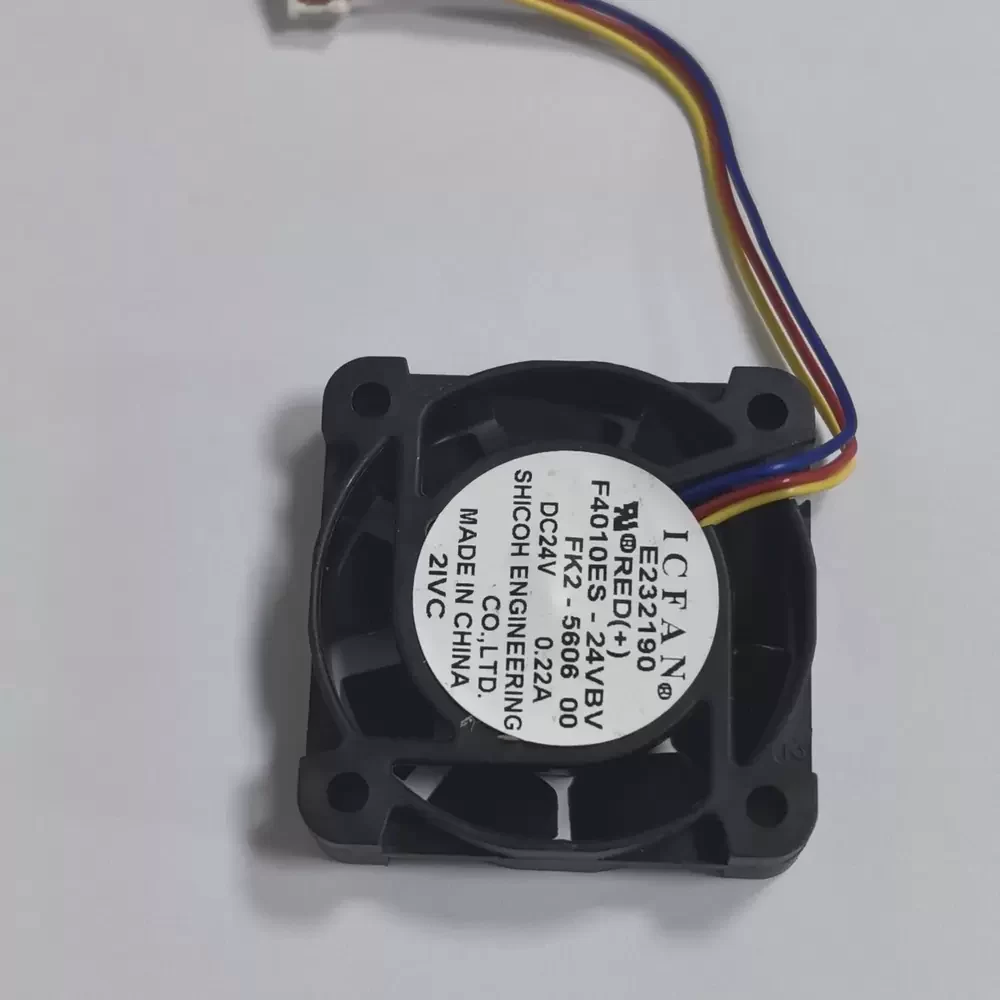

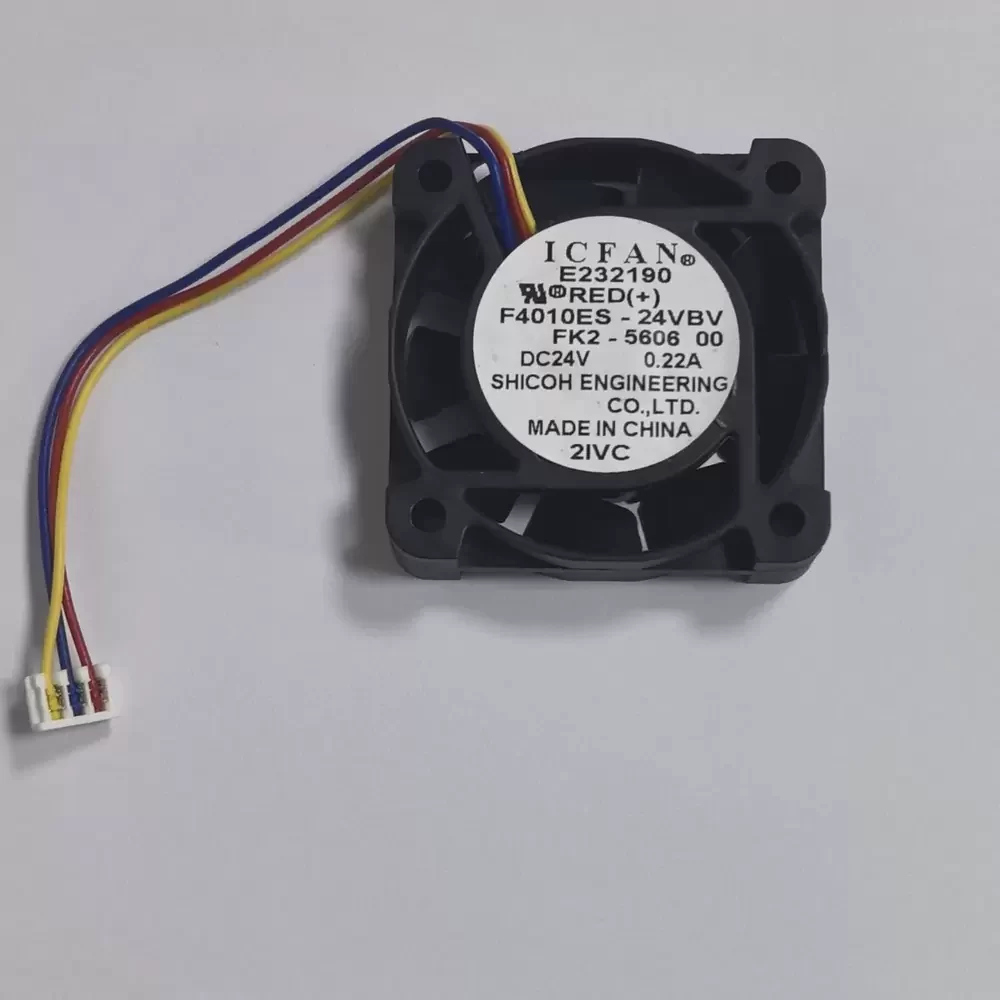

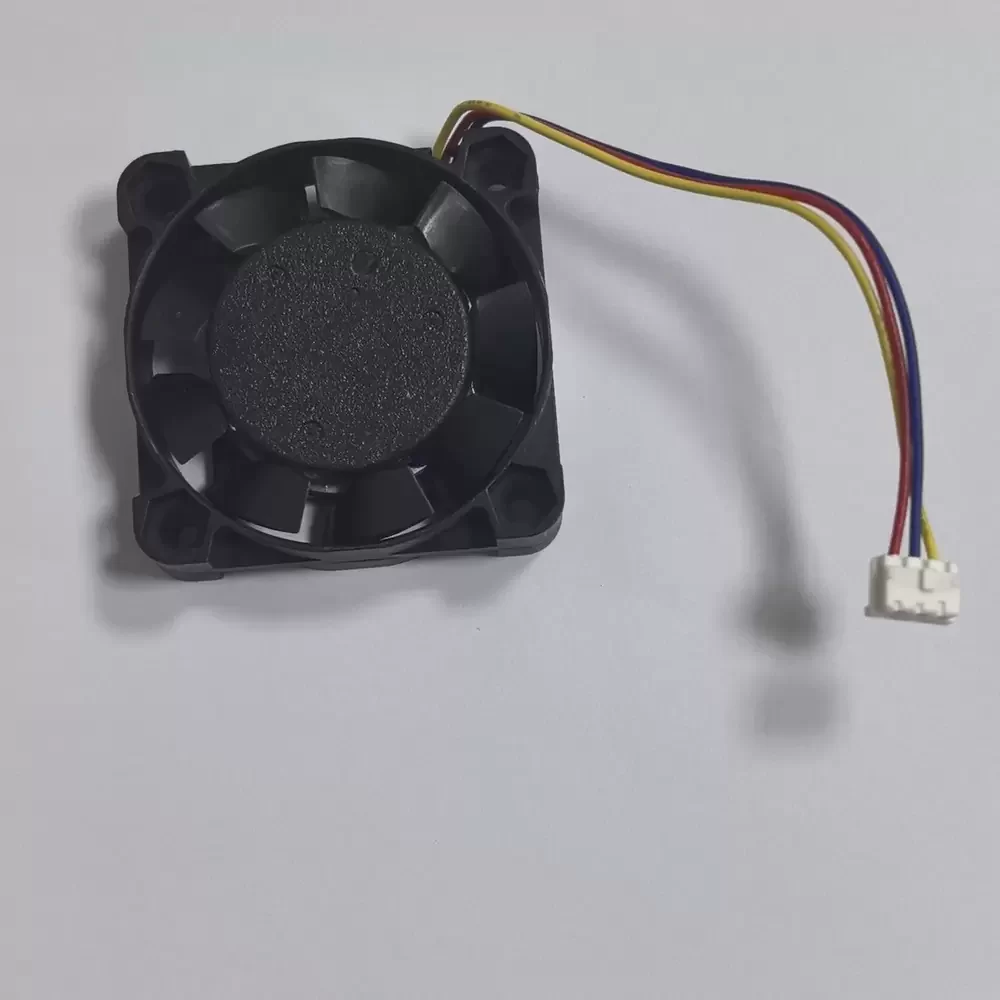

ICFAN F4010ES-24VBVFK2 is a 24VDC 40x40x10mm Axial Fan optimized for high-density thermal management in medical diagnostic equipment. This compact cooling solution utilizes a brushless DC motor and precision dual ball bearing architecture to minimize thermal impedance while maintaining structural rigidity under continuous operation. Engineered for reliability, it draws 0.22A and operates at high rotational speeds to overcome internal system resistance. The aerodynamic impeller design is specifically tuned for low-noise profiles required in clinical environments. With its 3-wire configuration providing a tachometer signal, it ensures real-time monitoring of cooling performance, making it a critical component for maintaining the longevity of sensitive medical electronics.
Model Number: F4010ES-24VBVFK2
Brand: ICFAN
Product Type: Axial Fan
Rated Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.22 A
Power: 5.28 W
Rated Speed: 8500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 7.2 CFM (12.2 m³/h / 0.20 m³/min)
Max. Static Pressure: 5.8 mmH₂O (56.8 Pa / 0.23 inH₂O)
Dimensions: 40 x 40 x 10 mm
Weight: 25 g
Life Expectancy: 70,000 hours at 40 °C
Speed Control: Tachometer (FG) Signal
Ingress Protection: IP54
Insulation Class: Class A
Noise Level: 32.5 dB(A)
Housing/Blade Material: PBT Plastic (UL94V-0)
Termination: 3 Lead Wires
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +75 °C
Mounting Orientation: Any
Certifications: CE, RoHS, UL
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
F4010ES-24VBVFK2 Applications
1. Medical Diagnostic Imaging: Low-vibration operation ensures optical precision in portable ultrasound and scanning modules.
2. 1U Server Enclosures: High static pressure allows for efficient heat dissipation in space-constrained rackmount hardware as a replacement fan.
3. Laboratory Centrifuges: Compact form factor and 24VDC compatibility provide localized cooling for high-speed motor controllers.
