Description

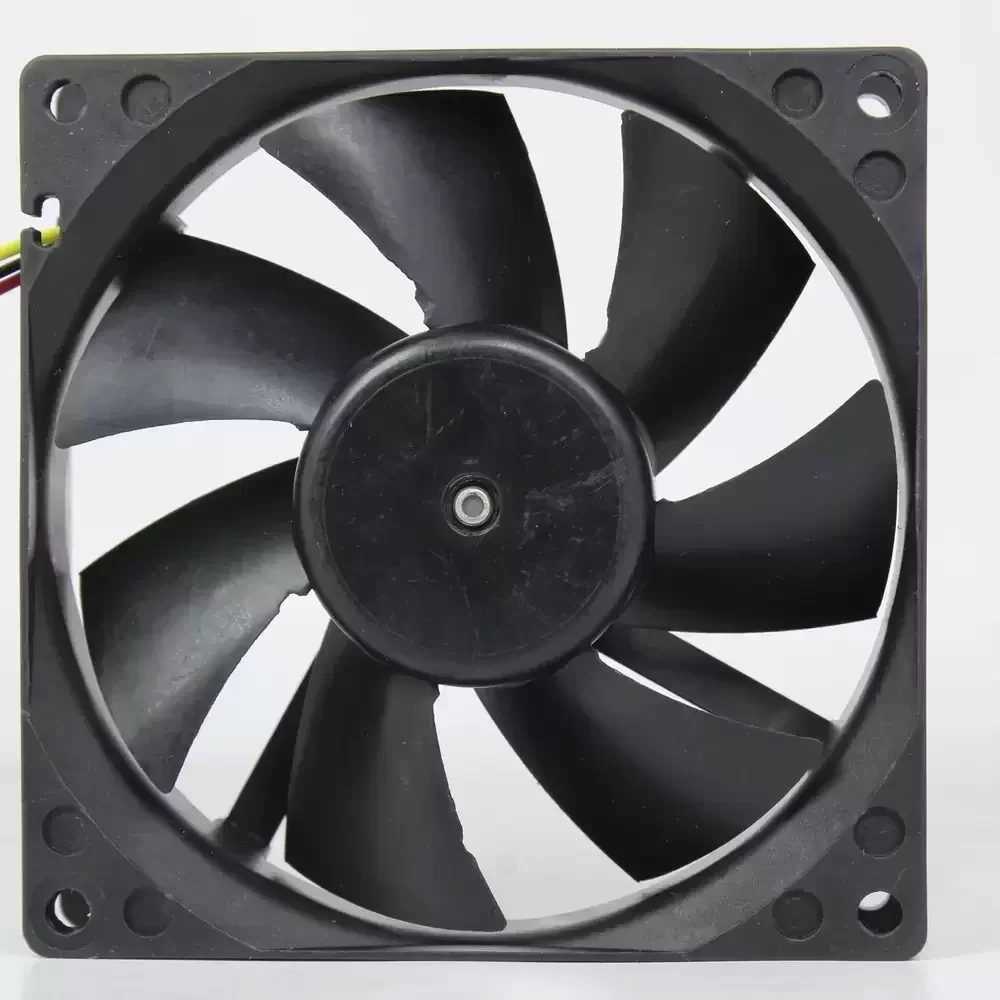

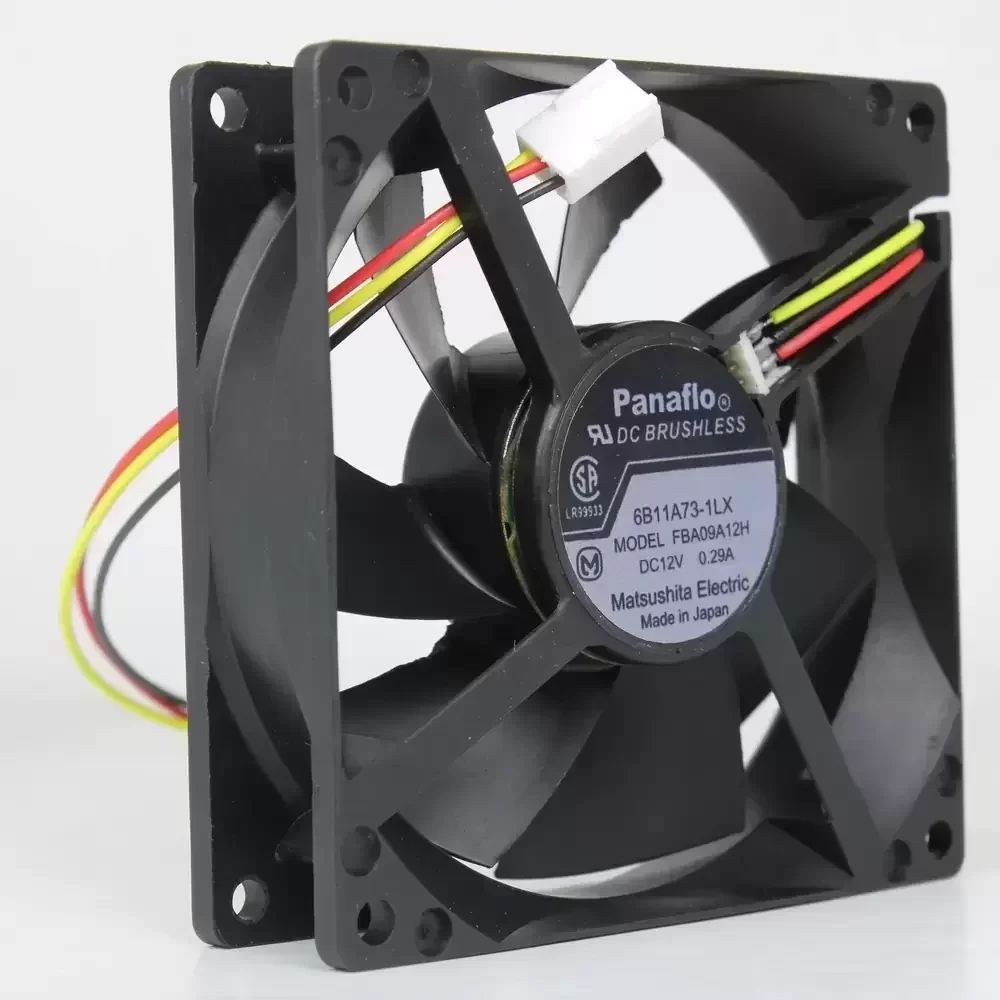

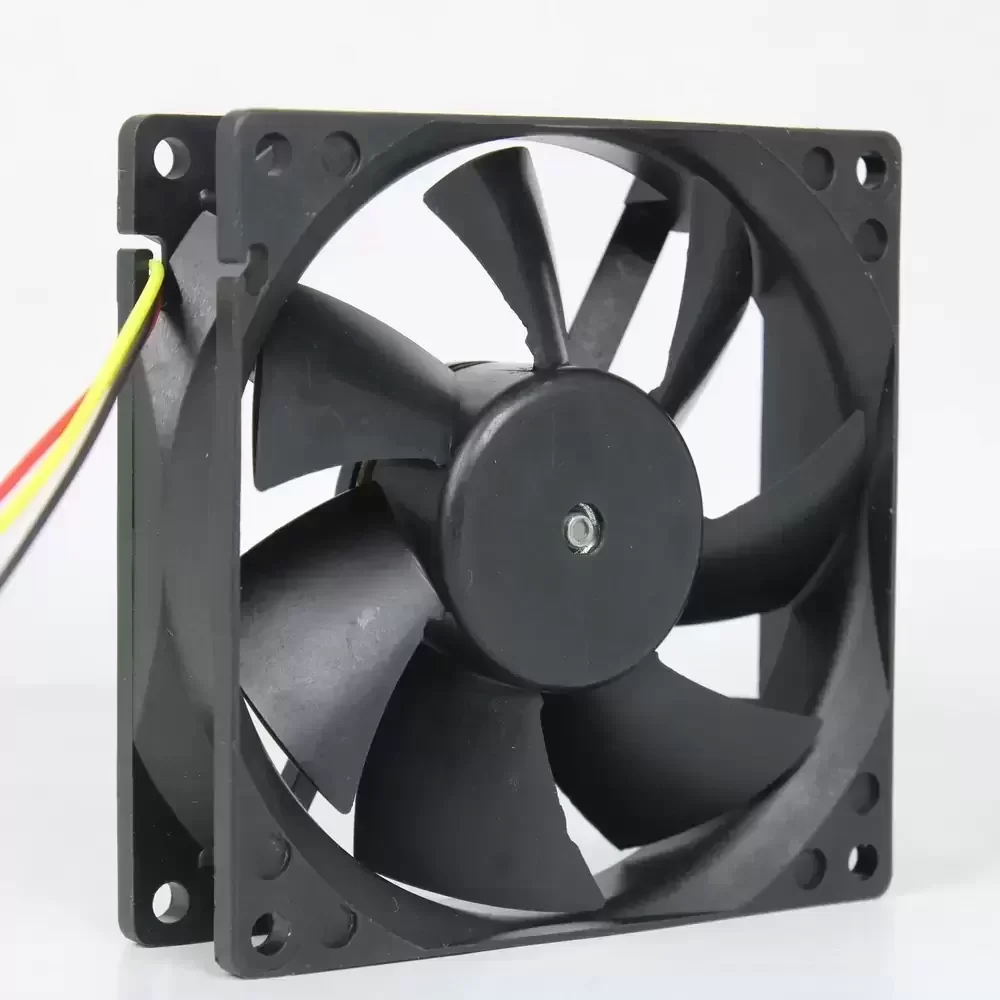

The Panaflo FBA09A12H is a precision-engineered Axial Fan designed for critical thermal management applications requiring low acoustic signatures and high reliability. Utilizing Panasonic’s proprietary Hydro Wave Bearing (HWB) technology, this unit minimizes friction-induced vibration, thereby optimizing thermal impedance across the system. The 12VDC brushless motor architecture ensures consistent torque delivery and enhanced structural rigidity within the 90mm thermoplastic frame. Engineered for continuous operation, the FBA09A12H balances airflow efficiency with static pressure capabilities, making it an ideal solution for sensitive electronic enclosures where component longevity is paramount.
Model Number: FBA09A12H
Brand: Panaflo (Panasonic)
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.29 A
Power Consumption: 3.48 W
Rated Speed: 2900 RPM
Bearing Type: Hydro Wave Bearing (HWB)
Max. Air Flow: 51.9 CFM (88.2 m³/h / 1.47 m³/min)
Max. Static Pressure: 3.40 mmH₂O (33.3 Pa / 0.13 inH₂O)
Dimensions: 90x90x25mm
Weight: 110 g
Life Expectancy: 50,000 Hours at 40°C
Noise Level: 34.0 dB-A
Termination: 3-Wire Lead
Wire Function: Red (+), Black (-), Yellow (Sensor/Tach)
Housing Material: Polybutylene Terephthalate (PBT) UL94V-0
Impeller Material: Polybutylene Terephthalate (PBT) UL94V-0
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Dielectric Strength: 500VAC for 1 min
Insulation Resistance: 10M Ohm at 500VDC
Motor Protection: Locked Rotor Protection, Polarity Protection
This cooling solution is specifically calibrated for deployment in high-density server racks, telecommunications switching gear, and precision medical instrumentation. The FBA09A12H excels in environments where consistent airflow is required to dissipate heat from power supplies and CPU heatsinks. Additionally, the low-noise profile of the FBA09A12H makes it suitable for office automation equipment and audio-visual amplifiers, ensuring reliable thermal regulation without introducing disruptive acoustic interference.
