Description

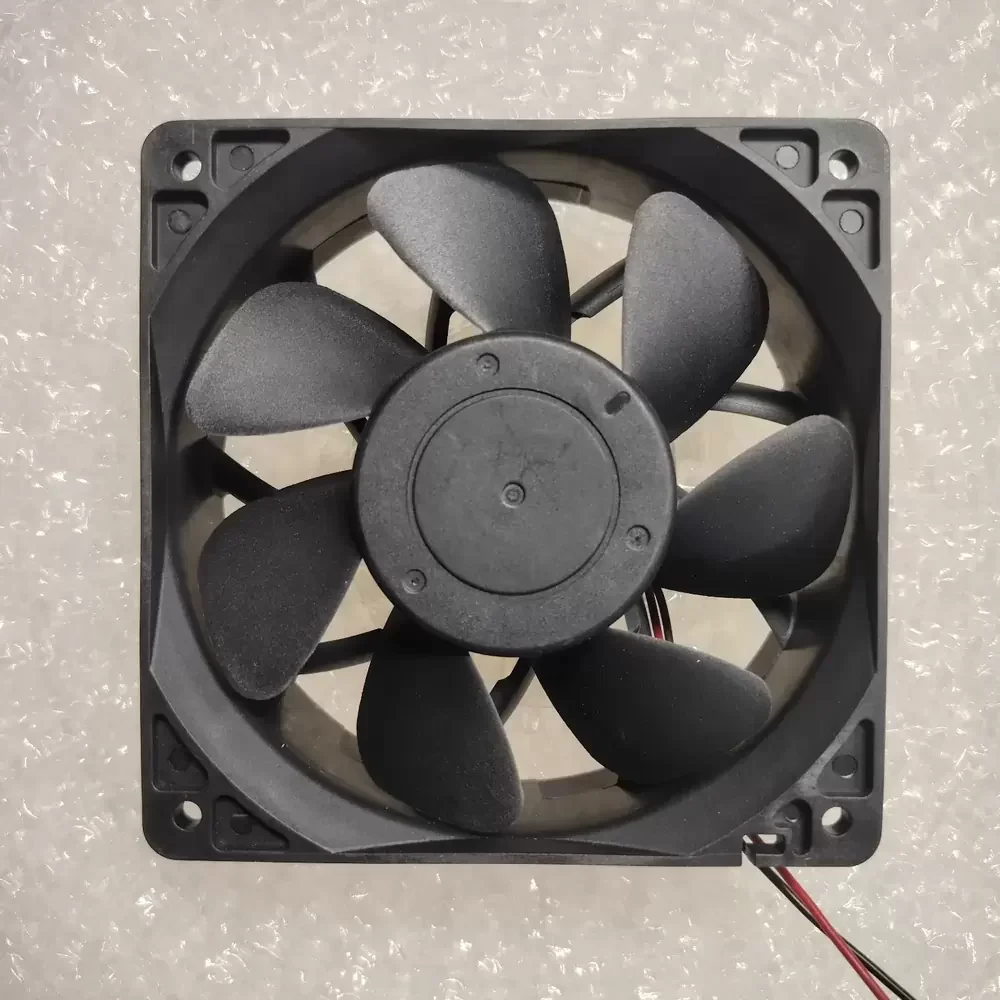

The JINYUDA FD1238D24HB is a high-reliability DC Axial Fan engineered for demanding industrial thermal management applications. Utilizing advanced Dual Ball Bearing architecture, this unit ensures minimized frictional coefficients and extended operational longevity, significantly reducing maintenance intervals in continuous-duty environments. The aerodynamic impeller design optimizes static pressure delivery while maintaining a balanced airflow profile, effectively lowering thermal impedance within high-density enclosures. Constructed with a robust thermoplastic frame, the FD1238D24HB offers superior structural rigidity and resistance to environmental stressors, making it an ideal solution for precision cooling in power electronics and automation systems.
Model Number: FD1238D24HB
Brand: JINYUDA
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.25 A
Power Consumption: 6.0 W
Rated Speed: 3500 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 105.0 CFM (178.4 m³/h / 2.97 m³/min)
Max. Static Pressure: 8.13 mmH₂O (79.7 Pa / 0.32 inH₂O)
Dimensions: 120x120x38mm
Weight: 270 g
Life Expectancy: 50,000 Hours @ 40°C
Noise Level: 42.0 dBA
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Termination: 2-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Motor Protection: Impedance Protected, Reverse Polarity Protection
Rotation: Counter-clockwise (viewed from blade)
The JINYUDA FD1238D24HB is specifically calibrated for integration into industrial power systems, including heavy-duty welding machines and variable frequency drives (VFDs). Its robust airflow characteristics make it suitable for forced convection cooling in server racks, telecommunication cabinets, and CNC control panels where heat dissipation is critical. Engineers frequently specify the FD1238D24HB for instrumentation and medical devices requiring consistent thermal regulation. Additionally, the FD1238D24HB serves as a reliable component in photovoltaic inverters and uninterrupted power supplies (UPS), ensuring component stability under varying load conditions.
