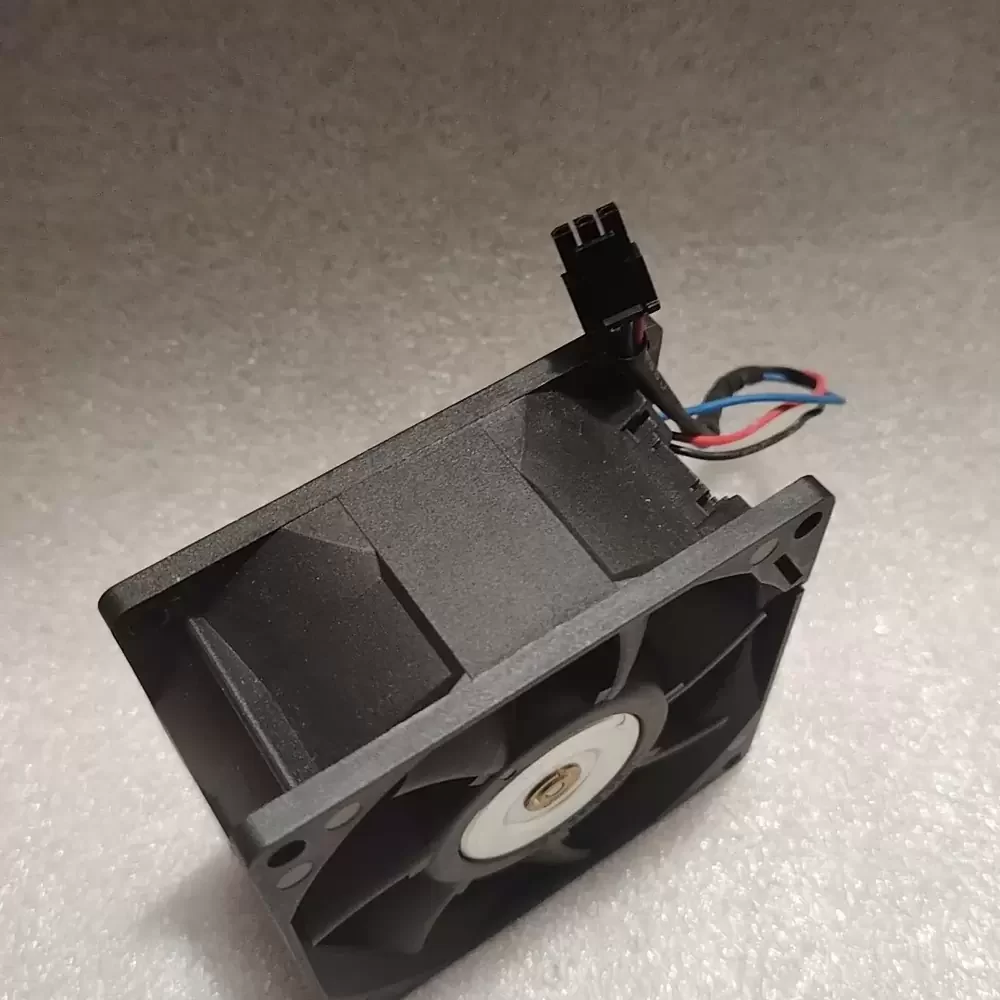

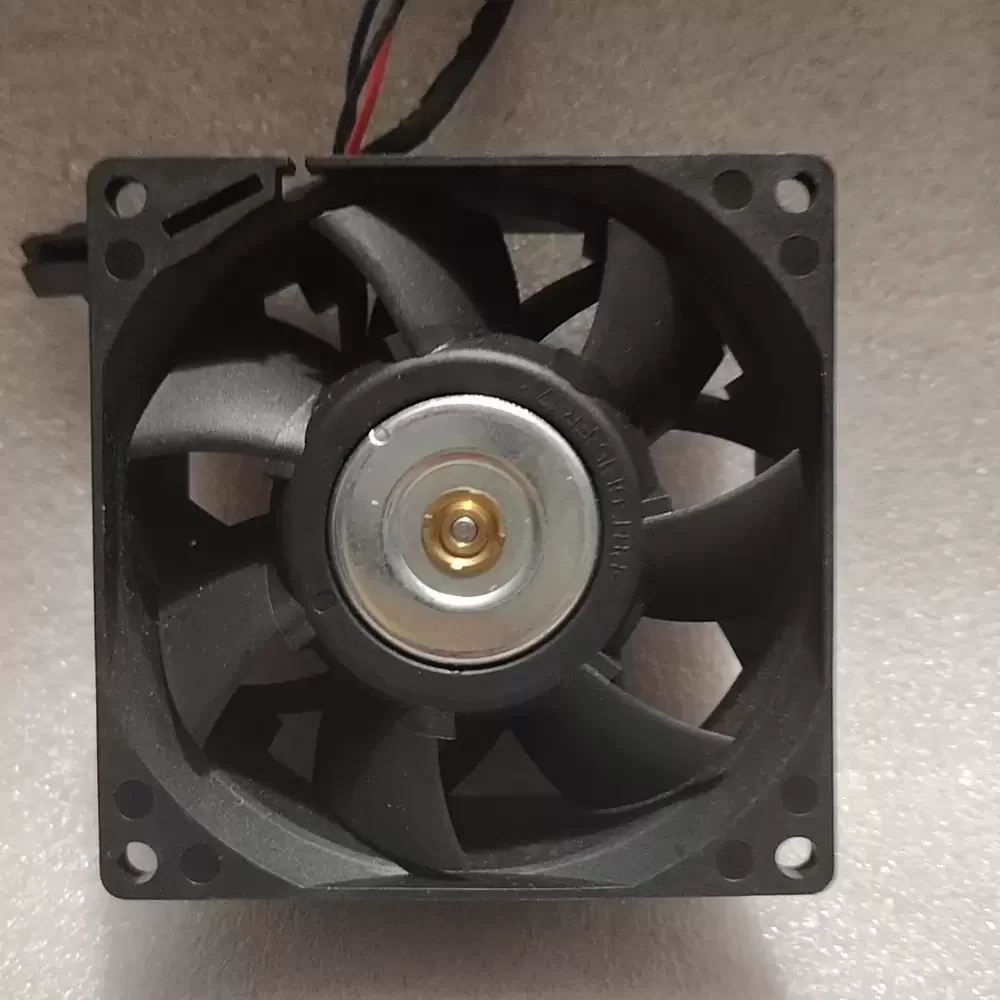

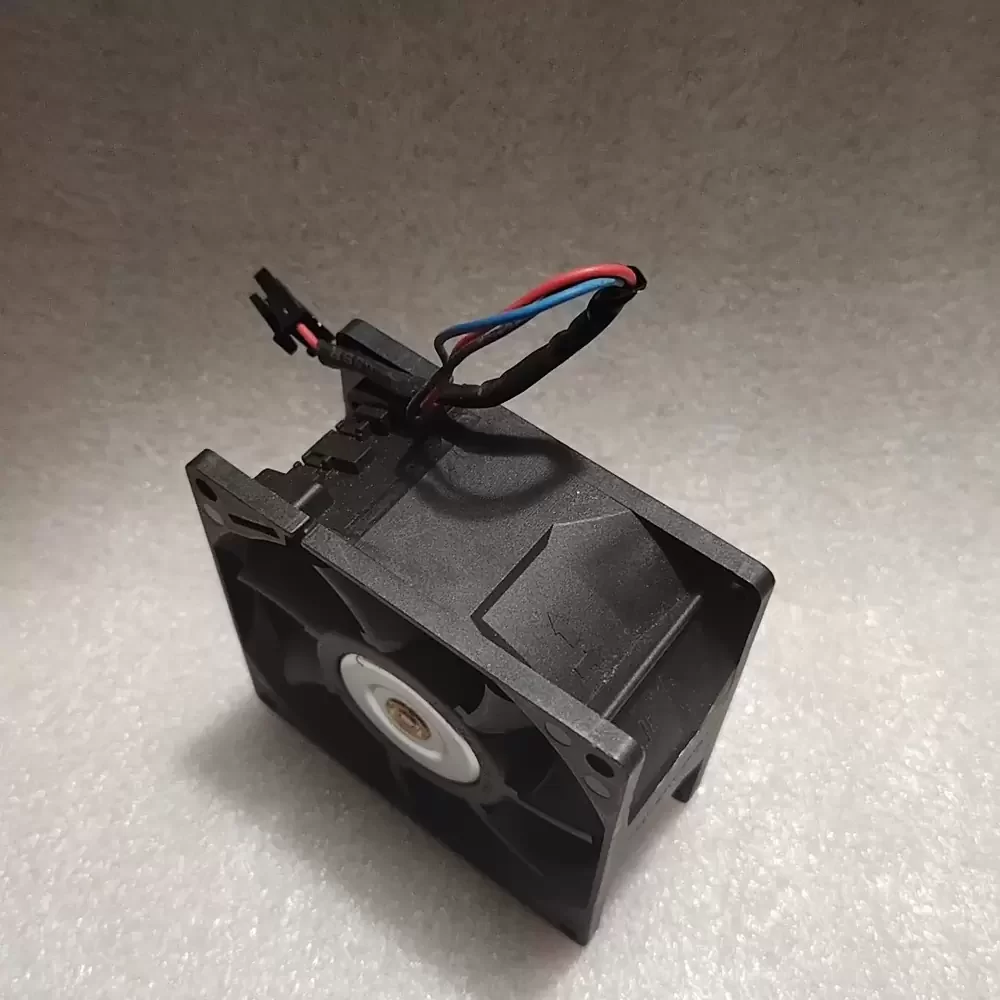

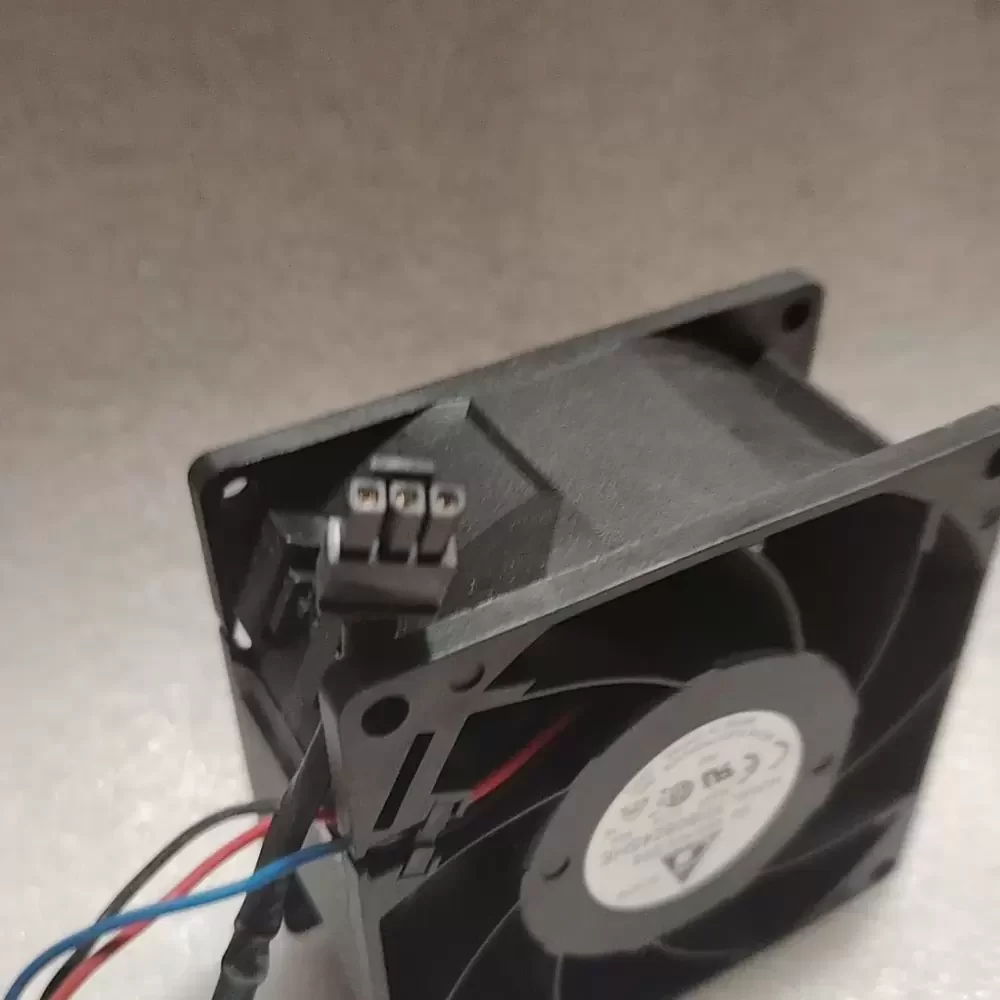

FFB0824SHE-R00 Delta 24VDC 0.51A 80x80x38mm DC Axial Fan

Description

The Delta FFB0824SHE-R00 80 x 80 x 38 mm DC axial fan operates at a nominal 24 VDC and 12.24 W, delivering a maximum airflow of 68.51 CFM and a static pressure of 15.01 mmH2O. Constructed with a UL 94V-0 plastic frame and impeller, this brushless DC motor utilizes a dual ball bearing system to ensure a life expectancy of 70,000 hours at 40 °C. The unit features a 3-wire lead termination equipped with a locked rotor sensor for precise operational monitoring, generating 48.5 dBA of acoustic noise at a rated speed of 4900 RPM.

FFB0824SHE-R00 Specifications
Manufacturer: Delta Electronics
Model Number: FFB0824SHE-R00
Product Category: DC Axial Fan
Dimensions: 80 x 80 x 38 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 14.0 to 27.6 VDC
Nominal Current: 0.51 A
Power Consumption: 12.24 W
Rated Speed: 4900 RPM
Maximum Airflow: 116.4 m³/h (68.51 CFM)
Maximum Static Pressure: 15.01 mmH2O (0.591 inAq)
Acoustic Noise: 48.5 dBA
Bearing Type: Dual Ball Bearing
Motor Design: Brushless DC Motor
Termination: 3-Wire Leads
Sensor Type: Locked Rotor Sensor
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -10 to 70 °C
Life Expectancy: 70,000 Hours at 40 °C
Weight: 170 g
Safety Approvals: CE, CSA, UL, VDE

FFB0824SHE-R00 Applications
Primary applications include integration into high-performance computing (HPC) servers, telecommunication base stations, and industrial automation controllers requiring continuous exhaust cooling. The component is also deployed within heavy-duty power supplies, networking switches, and CNC spindle thermal management systems operating under high back-pressure conditions.
