Description

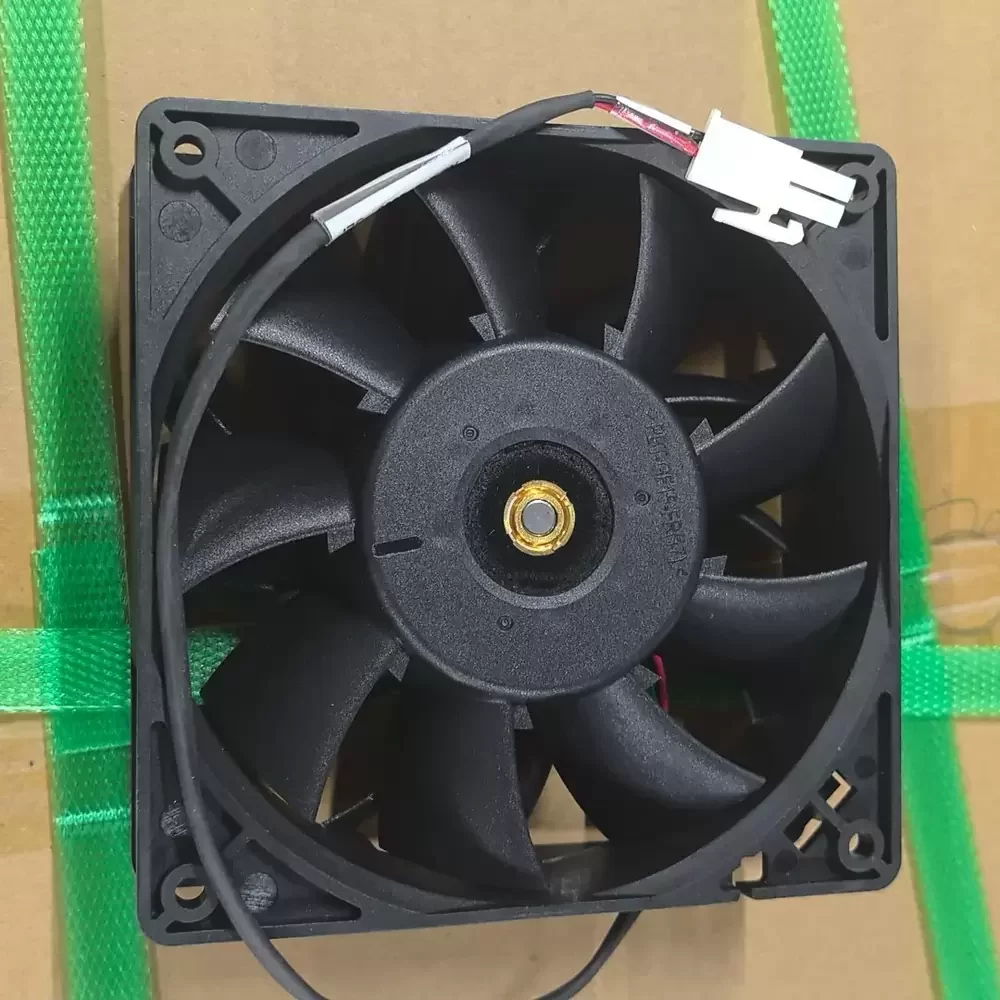

The Delta FFB1224VHE is a robust DC Axial Fan engineered for high-impedance industrial cooling applications requiring substantial airflow and static pressure. This 120mm unit utilizes a sophisticated brushless DC motor architecture paired with a precision Dual Ball Bearing system, ensuring exceptional structural rigidity and operational longevity even under continuous load. The aerodynamic impeller design optimizes air intake and exhaust efficiency, significantly reducing thermal resistance in dense electronic enclosures. Constructed with UL 94V-0 rated thermoplastic, the fan offers superior durability and resistance to environmental stress, making it an ideal solution for critical thermal management systems.
Model Number: FFB1224VHE
Brand: Delta Electronics
Product Type: DC Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.84 A
Input Power: 20.16 W
Rated Speed: 3200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 151.85 CFM (258.0 m³/h / 4.30 m³/min)
Max. Static Pressure: 11.30 mmH₂O (110.8 Pa / 0.445 inH₂O)
Dimensions: 120 x 120 x 38 mm
Weight: 370 g
Noise Level: 53.0 dB-A
Life Expectancy: 70,000 Hours (40°C)
Operating Temperature: -10°C to +70°C
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Termination: Lead Wires
Protection: Locked Rotor Protection, Polarity Protection
Insulation Class: Class A
Safety Certifications: UL, cUL, TUV, VDE, CE
The FFB1224VHE is specifically designed for high-demand environments such as variable frequency drives (VFDs), solar inverters, and high-density server chassis where reliable heat dissipation is paramount. Its high static pressure capabilities allow the FFB1224VHE to effectively push air through restrictive fins and filters found in industrial automation equipment and telecommunications racks, ensuring optimal component performance and system stability.
