Description

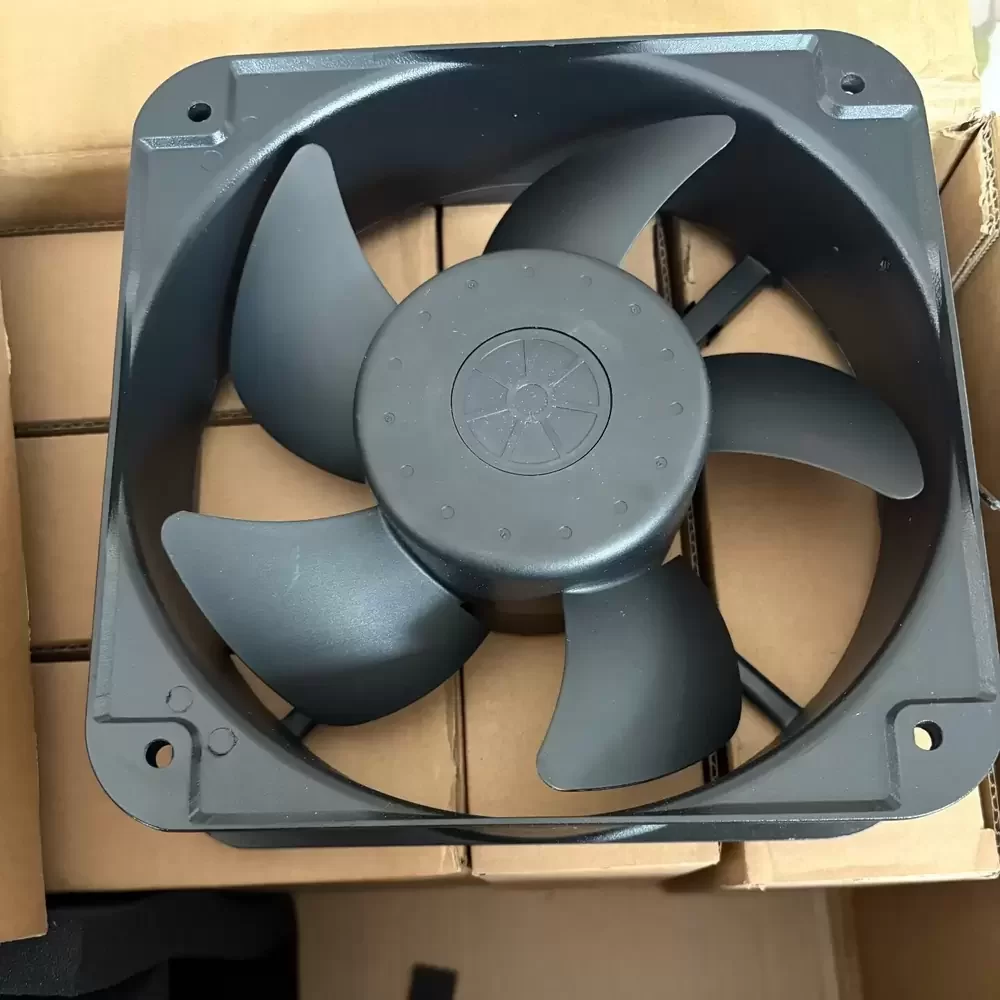

The DELIXI G20060HA2BL-C-W is a high-capacity industrial Axial Fan engineered for rigorous thermal management in demanding environments. Utilizing a robust AC motor architecture with pure copper windings, this unit minimizes thermal impedance while maximizing electrical efficiency. The structural rigidity of the 200x200x60mm frame ensures vibration damping at high rotational velocities, while the precision dual ball bearing system provides a low-friction interface for extended service life. Its aerodynamic impeller design is optimized for high static pressure and volumetric throughput, making it an essential component for maintaining optimal operating temperatures in high-density electronic enclosures.
Model Number: G20060HA2BL-C-W
Brand: DELIXI
Product Type: Axial Fan
Rated Voltage: 220VAC
Voltage Range: 180 – 240VAC
Frequency: 50/60Hz
Input Power: 68W
Output Power: 27W
Rated Speed: 2700 – 3000RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 390CFM
Dimensions: 200x200x60mm
Motor Type: Pure Copper Motor
Frame Material: Die-cast Aluminum
Impeller Material: Thermoplastic UL94V-0
Termination: Lead Wires
Protection Features: Impedance Protected
Warranty: 3 Years
The DELIXI G20060HA2BL-C-W is specifically designed for integration into large-scale industrial control cabinets and telecommunications infrastructure where consistent airflow is critical. The G20060HA2BL-C-W excels in high-heat environments such as CNC machinery cooling, server room ventilation, and power supply cooling racks. Its durable construction ensures that the G20060HA2BL-C-W maintains peak performance in continuous duty cycles across diverse manufacturing and data processing applications.



Updated:
Additional information
| Shipping Weight | 1 kg |
|---|
