Description

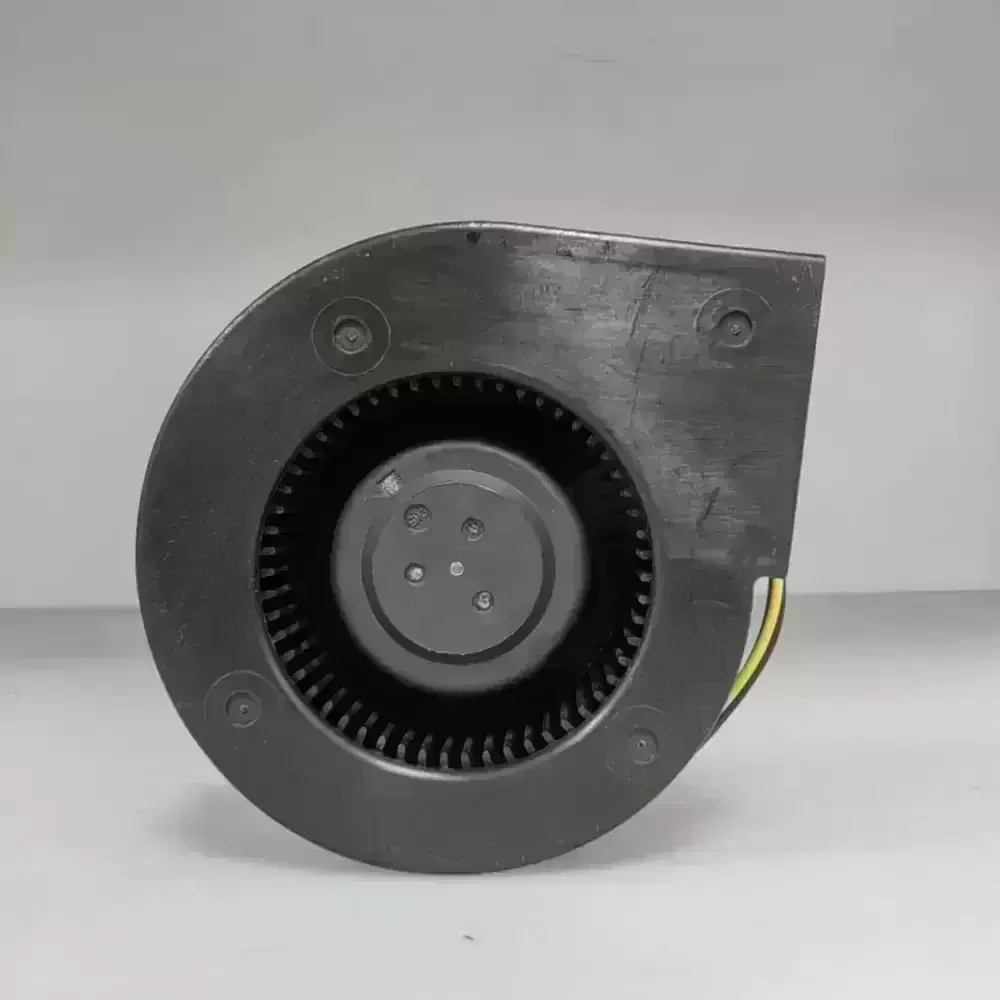

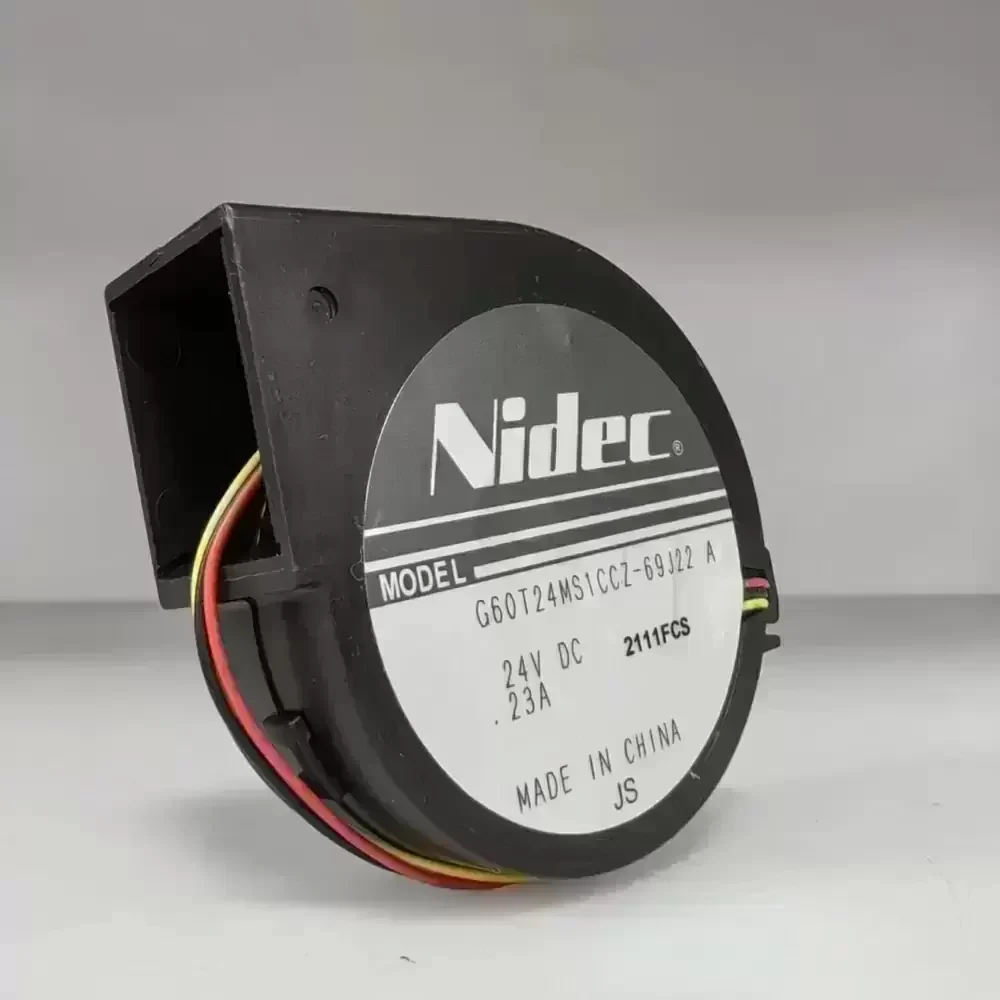

The Nidec G60T24MS1CCZ-69J22 is a precision-engineered DC cooling fan designed for compact thermal management and air circulation applications. Utilizing advanced brushless DC motor technology, this unit delivers consistent airflow while maintaining optimal energy efficiency. The aerodynamic design of the impeller minimizes turbulence, thereby reducing acoustic noise and improving static pressure capabilities. Constructed with high-grade materials to ensure structural rigidity, the fan operates reliably under continuous duty cycles. Its compact form factor allows for integration into space-constrained environments, effectively lowering thermal impedance in sensitive electronic assemblies and smart home appliances.
Model Number: G60T24MS1CCZ-69J22
Brand: Nidec
Product Type: DC Axial Fan
Rated Voltage: 24V DC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.23 A
Power Consumption: 5.52 W
Rated Speed: 5800 RPM
Bearing Type: Precision Ball Bearing
Max. Air Flow: 26.5 CFM (45.0 m³/h / 0.75 m³/min)
Max. Static Pressure: 6.8 mmH₂O (66.7 Pa / 0.27 inH₂O)
Dimensions: 60 x 60 x 23 mm
Weight: 65 g
Life Expectancy: 50,000 Hours at 40°C

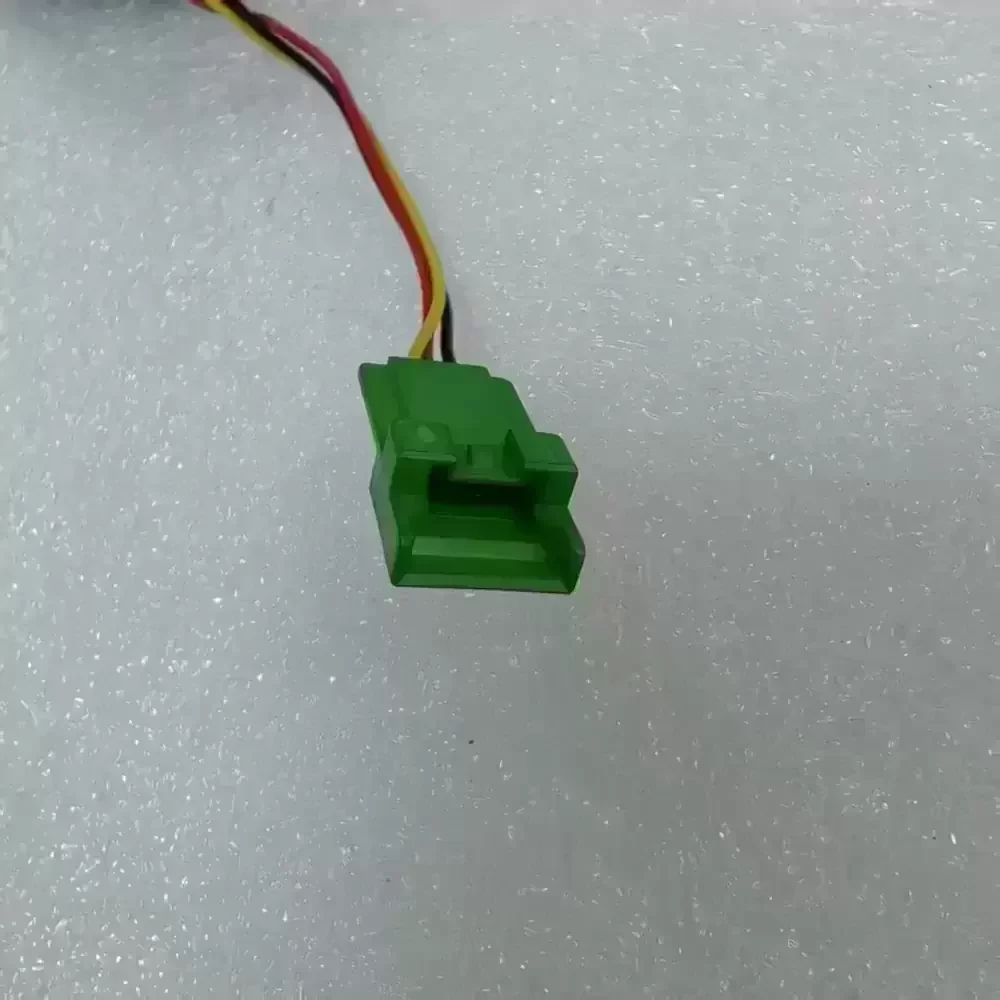

Termination: 3-Pin Connector
Wire Length: 80 mm
Speed Control: Tachometer Output
Noise Level: 34.0 dB(A)
Housing Material: PBT (UL94V-0)
Blade Material: PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Ingress Protection: IP40
The G60T24MS1CCZ-69J22 is frequently deployed in smart home automation systems, specifically within intelligent sanitary ware for deodorization and ventilation. Engineers utilize the G60T24MS1CCZ-69J22 in compact electronic enclosures where reliable heat dissipation is critical to component longevity. Additionally, this model serves effectively in small-scale telecommunications equipment and precision instrumentation requiring consistent airflow.
