Description

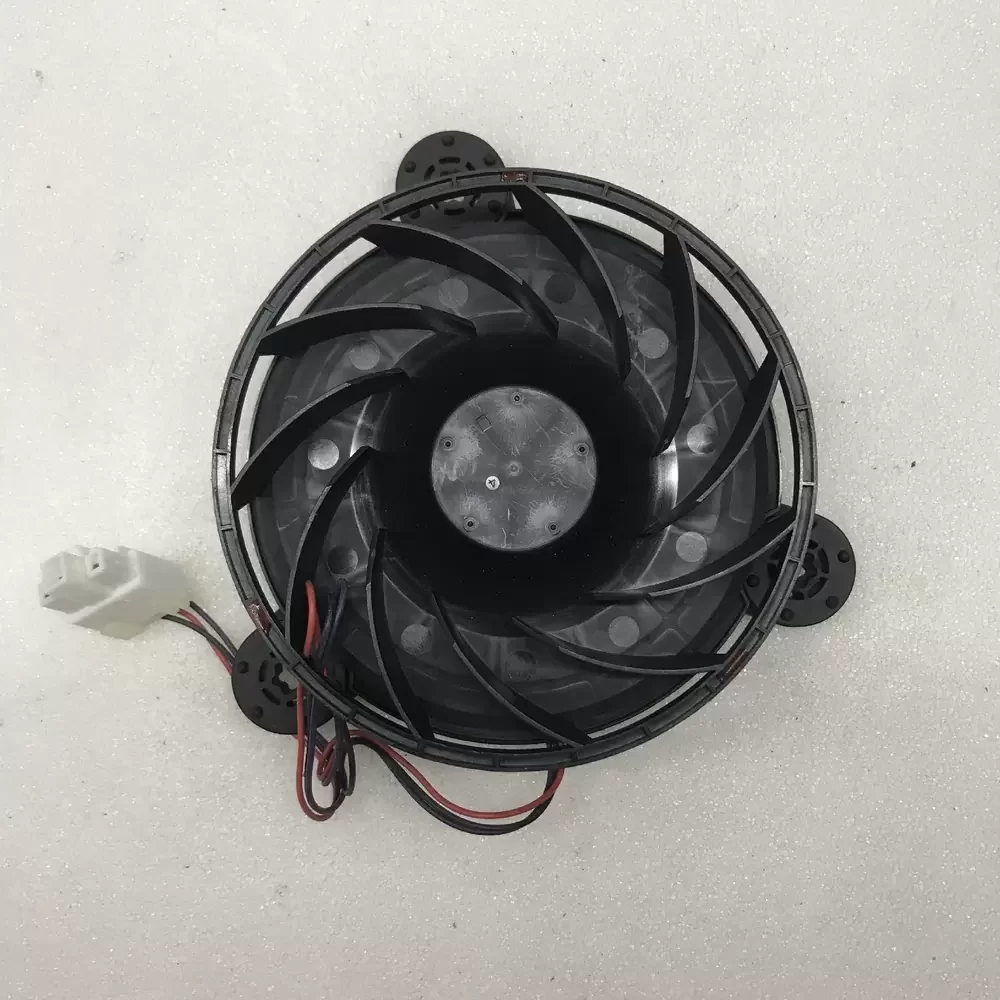

The Nidec GW12E12MS1AZ-52Z32 is an Axial Fan engineered for precision thermal management in refrigeration systems. Utilizing advanced brushless DC motor technology, this unit minimizes thermal impedance while maintaining structural rigidity under continuous operation. The aerodynamic impeller design is optimized for low-noise performance and consistent airflow delivery. Featuring a robust bearing architecture, the GW12E12MS1AZ-52Z32 ensures long-term reliability in demanding environments. Its construction utilizes flame-retardant materials to meet strict safety standards, providing a durable solution for critical cooling applications where energy efficiency and mechanical stability are paramount for system longevity.
Model Number: GW12E12MS1AZ-52Z32
Brand: Nidec
Product Type: Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8VDC
Rated Current: 0.33A
Power: 3.96W
Rated Speed: 2400RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 82.4CFM (140.0m³/h / 2.33m³/min)
Max. Static Pressure: 4.2mmH₂O (41.2Pa / 0.16inH₂O)
Dimensions: 120mmx120mmx25mm
Weight: 180g
Life Expectancy: 70,000 Hours at 40°C
Housing Material: PBT Plastic (UL94V-0)
Blade Material: PBT Plastic (UL94V-0)
Termination: 3-Wire Lead
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection Features: Locked Rotor Protection, Reverse Polarity Protection
Insulation Class: Class A
Certifications: UL, TUV, CE, RoHS
The GW12E12MS1AZ-52Z32 is primarily designed for integration within Haier refrigeration units to facilitate efficient heat dissipation and air circulation in freezer compartments. Beyond domestic appliances, the GW12E12MS1AZ-52Z32 is suitable for industrial cooling cabinets, medical storage systems, and telecommunications enclosures requiring stable 12VDC thermal regulation. Its compact form factor allows for seamless installation in space-constrained environments where consistent airflow is critical for maintaining internal temperature gradients.
