Description

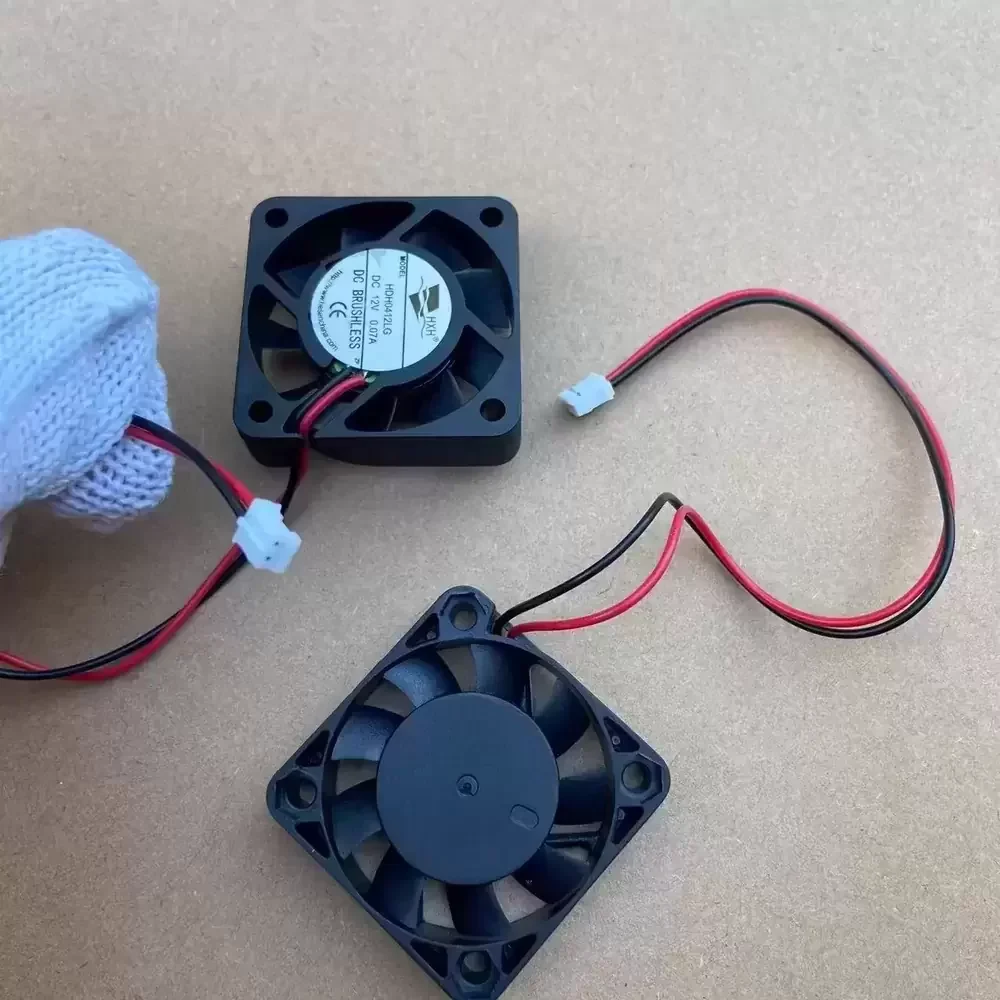

The HXH HDH0412LG is a precision-engineered DC axial fan designed for applications requiring minimal acoustic interference and reliable thermal management. Utilizing an advanced brushless DC motor architecture, this unit optimizes airflow efficiency while maintaining a low power consumption profile of just 0.07A. The 40mm frame is constructed to ensure structural rigidity, reducing vibration-induced noise and enhancing mechanical stability. Its aerodynamic blade design minimizes turbulence, thereby lowering the overall thermal impedance of the target system. This compact cooling solution is ideal for space-constrained electronic assemblies where maintaining operational temperatures is critical for component longevity and system stability.
Model Number: HDH0412LG
Brand: HXH
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.07 A
Power Consumption: 0.84 W
Rated Speed: 4500 RPM ±10%
Bearing Type: Sleeve Bearing
Max. Air Flow: 4.85 CFM (8.24 m³/h / 0.13 m³/min)
Max. Static Pressure: 2.54 mmH₂O (24.91 Pa / 0.10 inH₂O)
Dimensions: 40x40x10mm
Weight: 14.0 g
Life Expectancy: 30,000 Hours at 25°C
Noise Level: 22.5 dBA
Speed Control: Constant Speed
Ingress Protection: IP20
Insulation Class: Class A
Housing Material: PBT Thermoplastic (UL94V-0)
Blade Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Wire Lead (Red +, Black -)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Certifications: CE, RoHS
The HDH0412LG is engineered for integration into compact electronic enclosures where space is at a premium and acoustic neutrality is required. Common deployment scenarios include chipset cooling in embedded systems, DVR/NVR cooling solutions, and small-scale telecommunications equipment. The HDH0412LG effectively manages heat dissipation in network switches, 3D printer hotends, and portable medical instrumentation, ensuring reliable operation without contributing significant noise to the environment.
