HDR-100-24 MEAN WELL 24VDC 92W DIN Rail Power Supply

Description

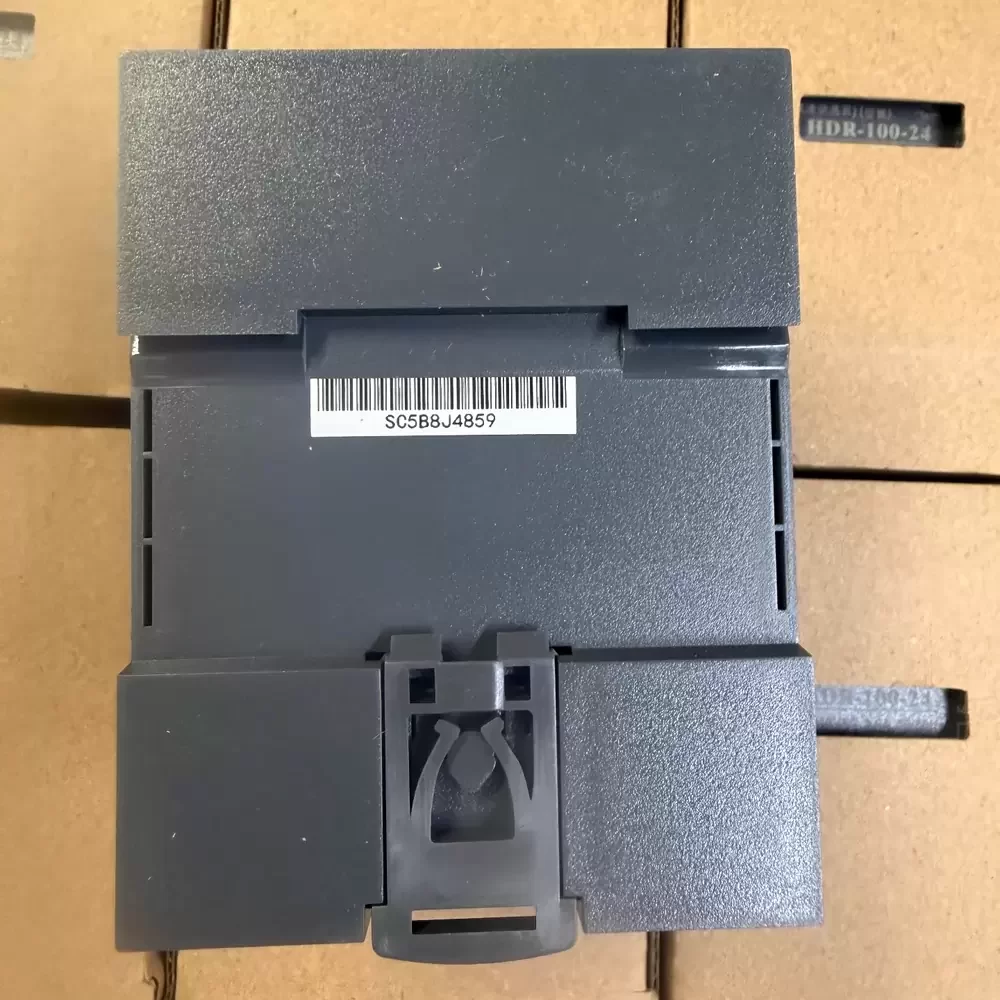

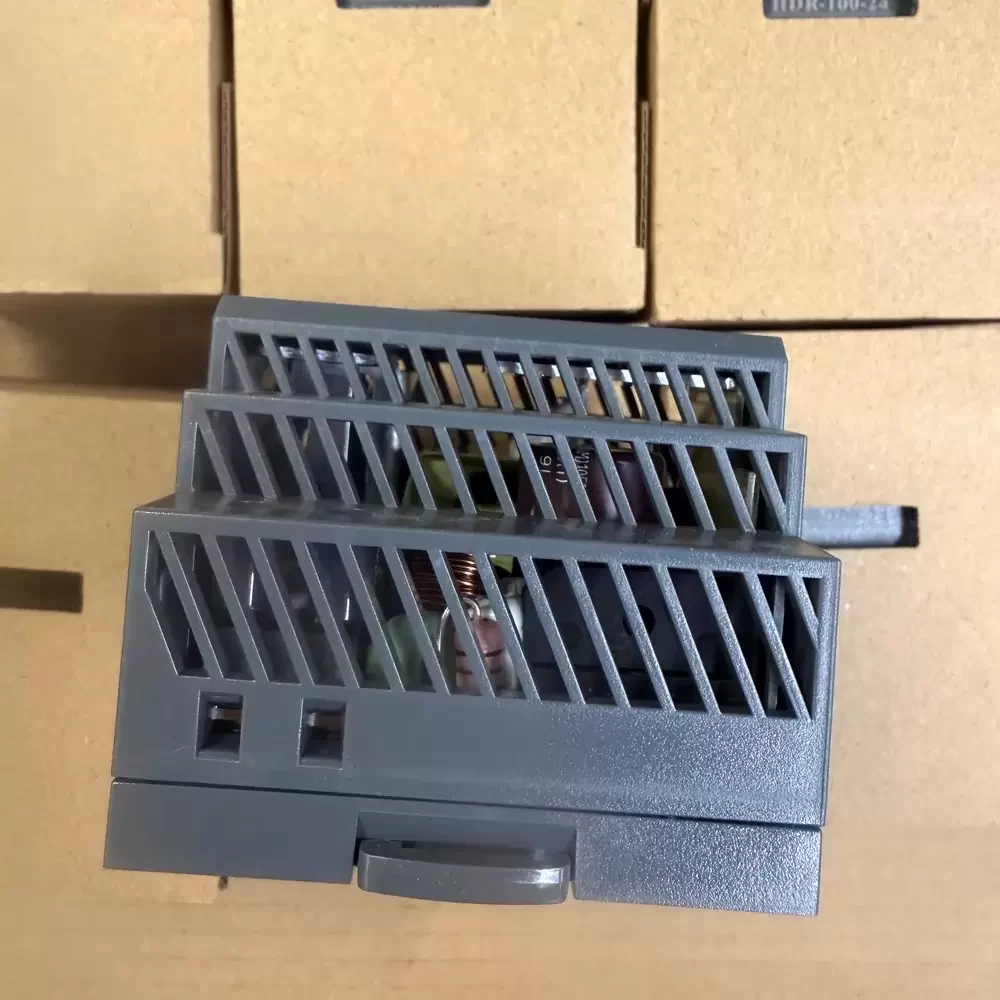

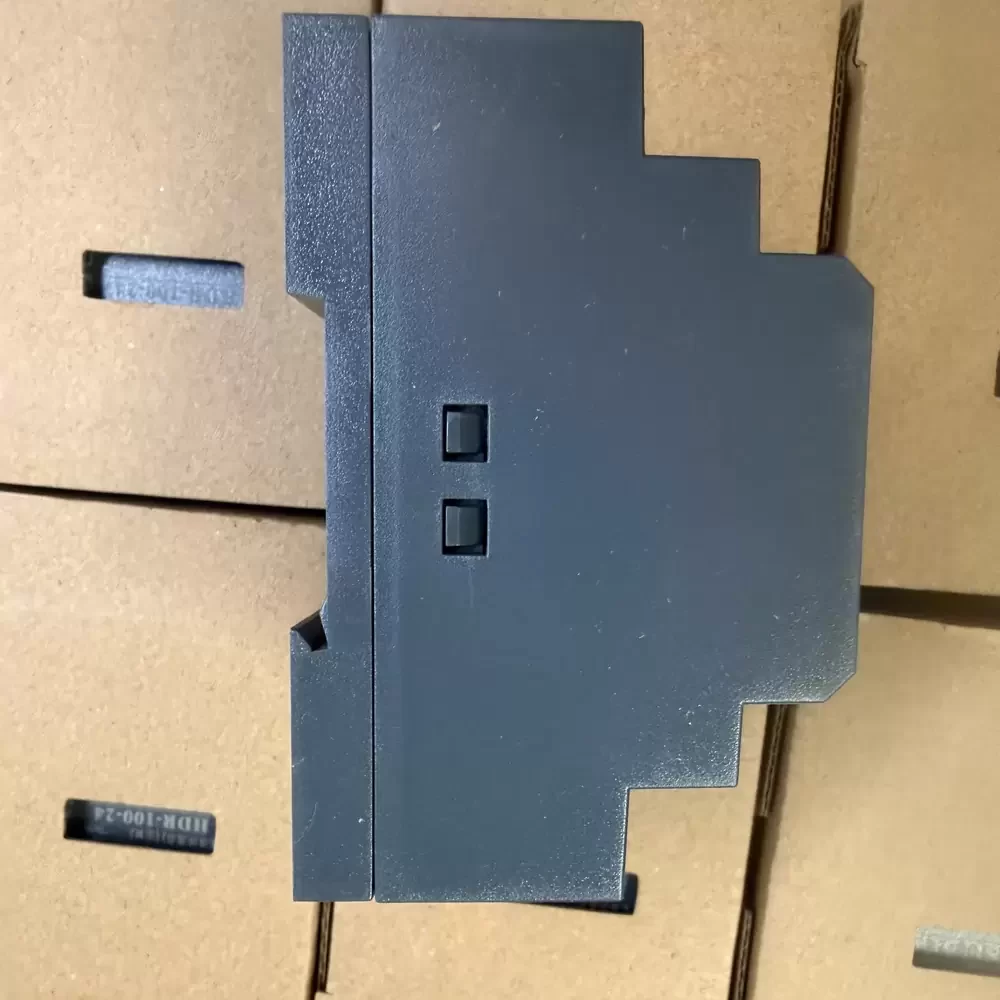

MEAN WELL HDR-100-24 features a 70 mm x 90 mm x 54.5 mm step-shape plastic housing, delivering a nominal 24 VDC output at 3.83 A with a total power capacity of 92 W. The unit operates on a universal 85 to 264 VAC input range and achieves up to 90 % efficiency under free air convection cooling. Engineered with Class II isolation and a no-load power consumption of less than 0.3 W, the hardware mounts directly onto standard TS-35/7.5 or TS-35/15 DIN rails. Internal mechanisms include constant current limiting for overload protection, alongside overvoltage and short-circuit safeguards, functioning reliably across a -30 to 70 °C temperature range.

HDR-100-24 Specifications
Manufacturer: MEAN WELL
Model Number: HDR-100-24
Product Category: DIN Rail Power Supply
Output Voltage: 24 VDC
Output Current: 3.83 A
Output Power: 92 W
Input Voltage Range: 85 to 264 VAC / 120 to 370 VDC
Efficiency: 90 %
Ripple & Noise: 150 mVp-p
Voltage Adjustment Range: 21.6 to 26.4 VDC
No-Load Power Consumption: < 0.3 W
Isolation Class: Class II
Operating Temperature: -30 to 70 °C
Operating Humidity: 20 to 90 % RH
Dimensions (W x H x D): 70 mm x 90 mm x 54.5 mm
Weight: 0.27 kg
Housing Material: Plastic
Mounting Compatibility: TS-35/7.5 or TS-35/15 DIN Rail
Overload Protection: 102 to 110 % rated output power
Overvoltage Protection: 30 to 36 VDC
Safety Standards: UL508, UL62368-1, IEC62368-1, EN61558-2-16

HDR-100-24 Applications
Primary applications include integration into factory automation control panels, building electromechanical apparatus, and industrial motor drive systems. Deployed within CNC machine enclosures, HVAC control matrices, and automated sorting conveyors, the unit provides regulated DC power to PLCs, sensors, and HMI interfaces.
