Description

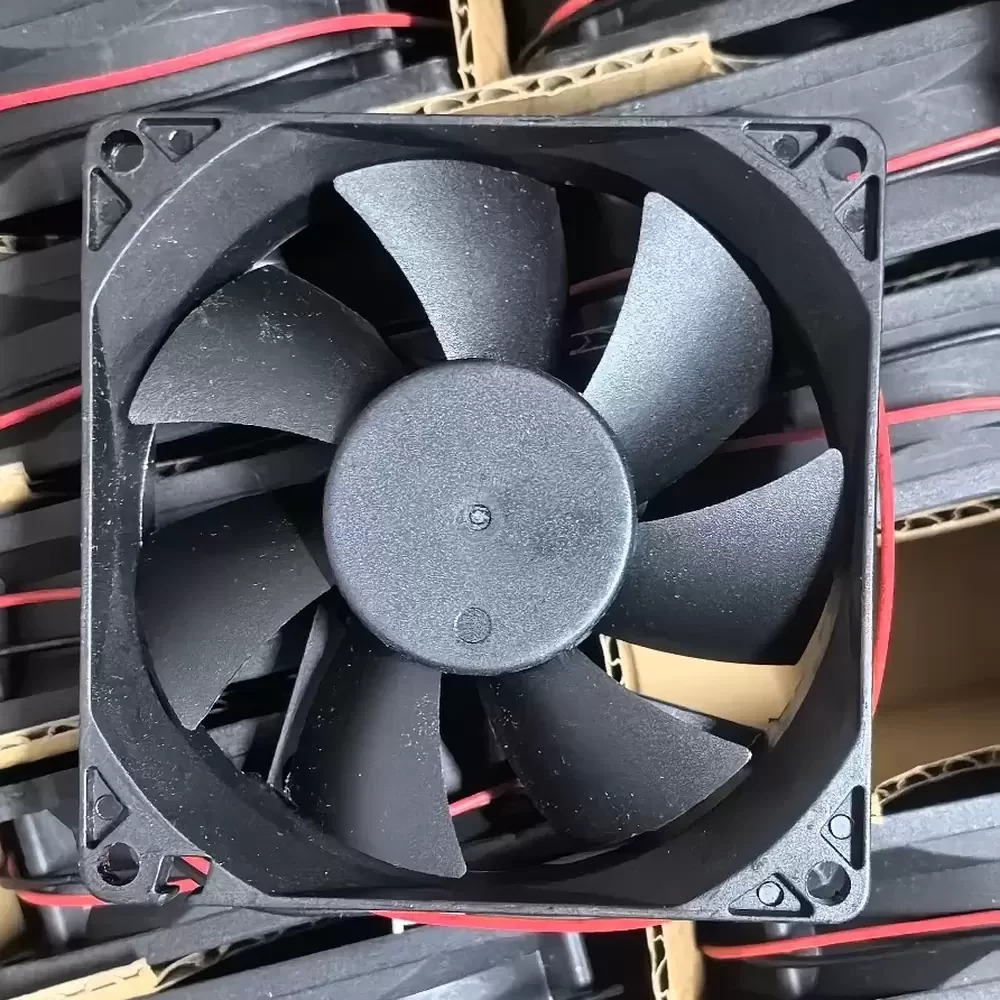

The Jamicon JF0825H1H-R is a DC Axial Fan engineered for efficient thermal management in compact electronic enclosures and industrial machinery. Utilizing a robust DC brushless motor architecture paired with a precision Dual Ball Bearing system, this unit ensures minimized friction and extended operational longevity under continuous load. The aerodynamic impeller design optimizes airflow dynamics to reduce thermal impedance, while the reinforced PBT housing provides essential structural rigidity and flame resistance. This cooling solution is designed to maintain optimal operating temperatures for sensitive components, ensuring system reliability in demanding environments.

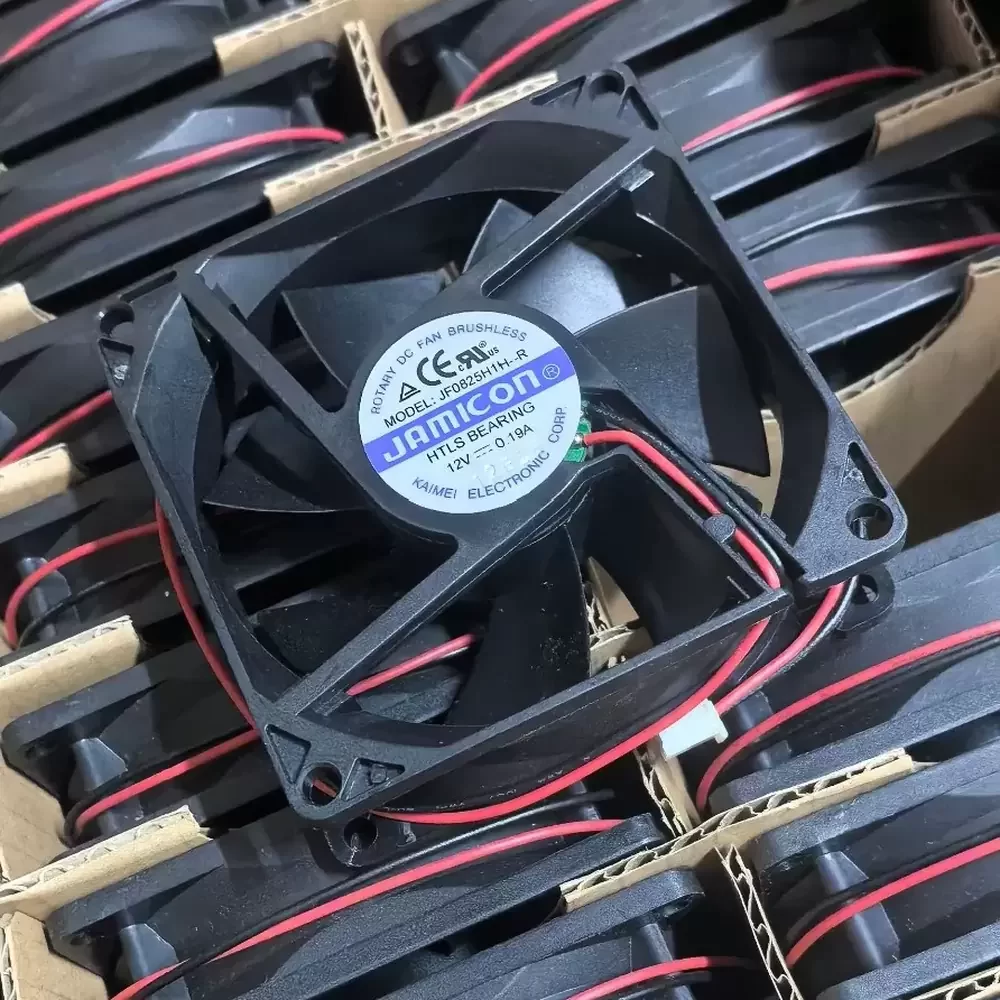

Model Number: JF0825H1H-R
Brand: Jamicon
Product Type: DC Axial Fan
Rated Voltage: 12 VDC
Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.19 A
Power: 2.28 W
Rated Speed: 3000 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 40.5 CFM (68.8 m³/h / 1.15 m³/min)
Max. Static Pressure: 3.81 mmH₂O (37.36 Pa / 0.15 inH₂O)
Dimensions: 80x80x25 mm
Weight: 86 g
Life Expectancy: 50,000 Hours @ 40°C
Noise Level: 33.0 dBA
Housing Material: PBT (UL94V-0)
Impeller Material: PBT (UL94V-0)
Termination: 2-Wire Leads
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Ingress Protection: IP20
Insulation Resistance: >10M Ohm at 500VDC
Dielectric Strength: 500VAC for 1 Minute
Direction of Rotation: Counter-clockwise
The JF0825H1H-R is widely utilized in industrial and commercial environments requiring reliable forced-air cooling. Common deployment scenarios include server rack ventilation, power supply unit cooling, and thermal regulation within CNC control panels. Additionally, the JF0825H1H-R serves effectively in telecommunications equipment and medical instrumentation where consistent airflow is critical for system stability and component preservation.
