Description

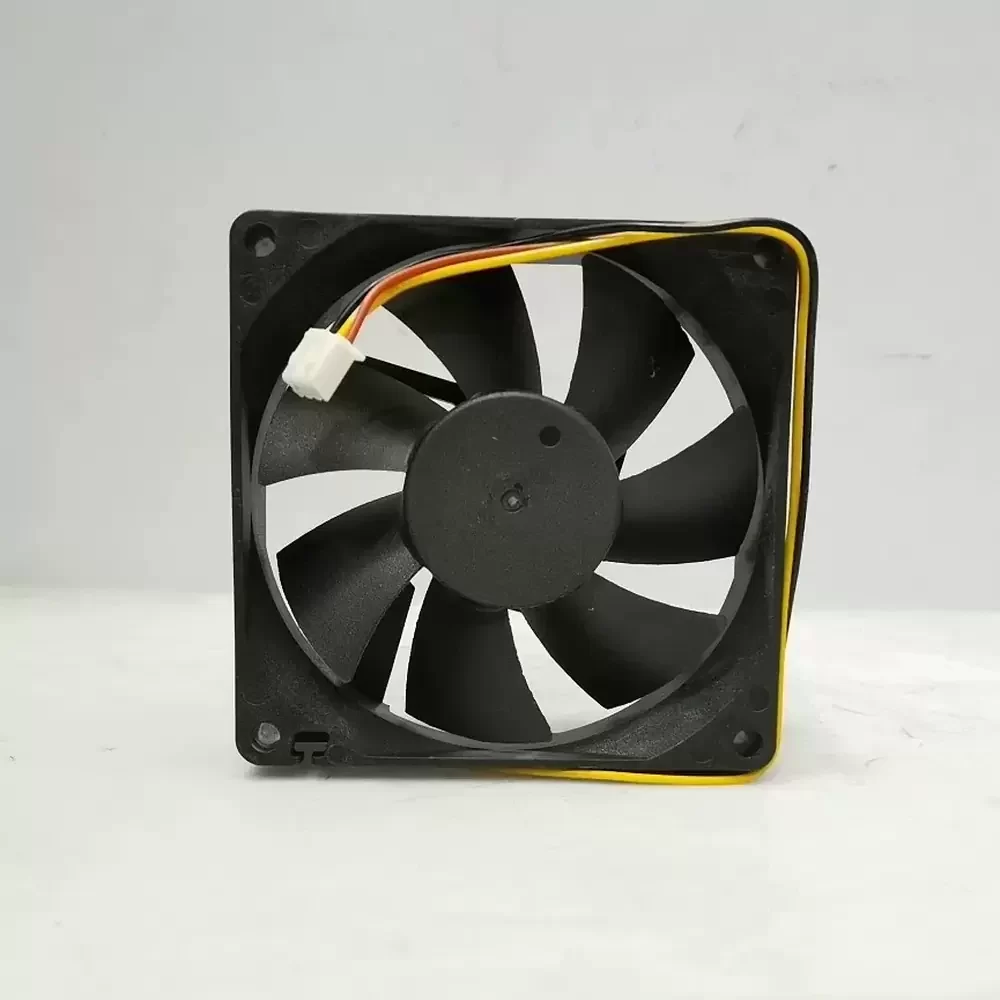

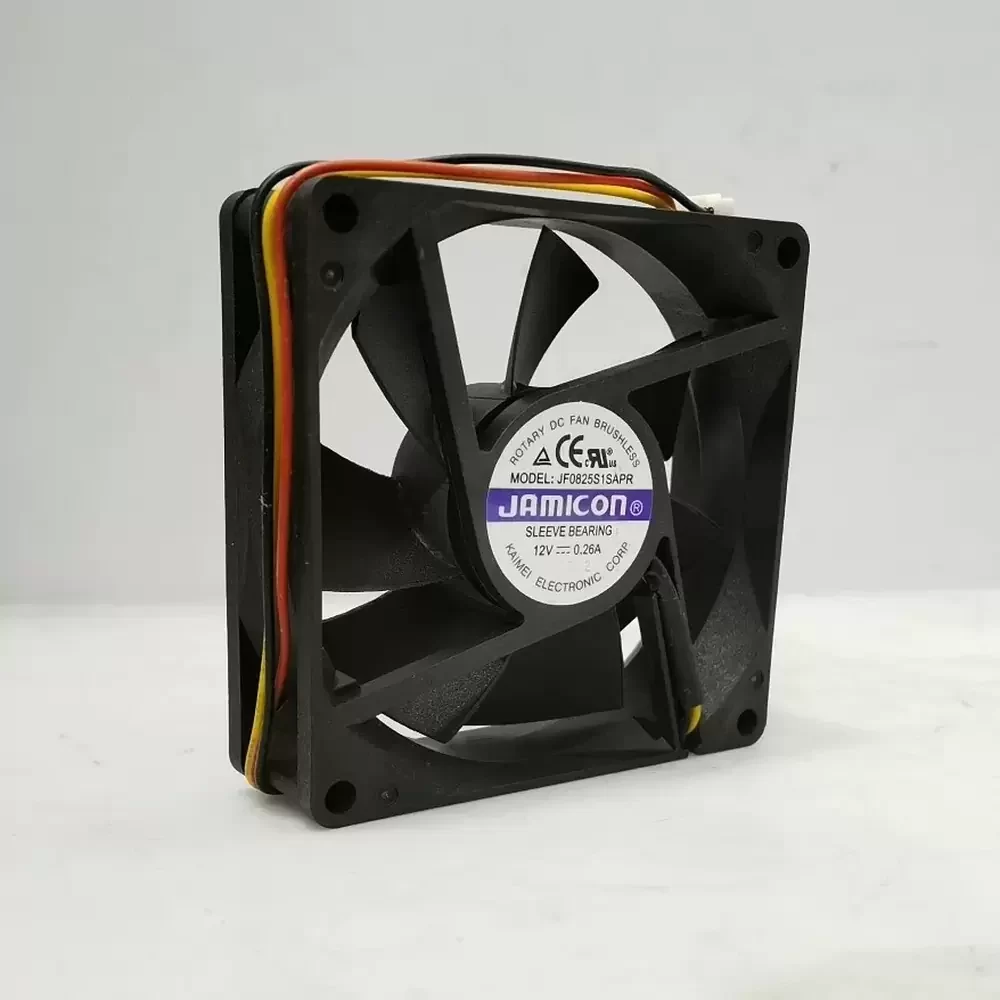

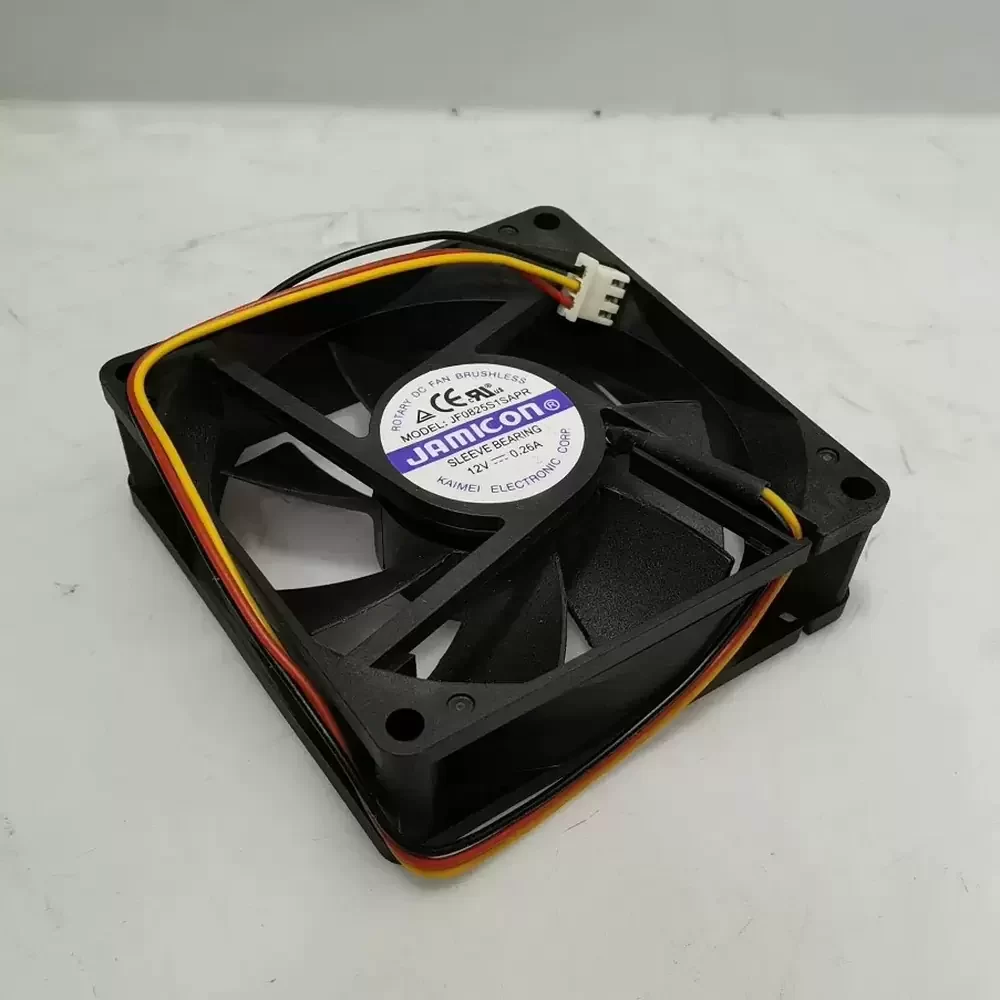

The Jamicon JF0825S1SAPR is a precision-engineered DC Axial Fan designed for critical thermal management in power electronics and industrial systems. Utilizing advanced sleeve bearing architecture, this unit optimizes rotational stability while minimizing frictional noise, ensuring a favorable acoustic profile during continuous operation. The aerodynamic impeller design enhances static pressure delivery, effectively overcoming high thermal impedance in dense enclosures. Constructed with a robust thermoplastic frame, it offers superior structural rigidity and reliability. Featuring a 3-wire configuration with an integrated alarm signal, it provides real-time status monitoring essential for system integrity.
Model Number: JF0825S1SAPR
Brand: Jamicon (Kaimei Electronic Corp)
Product Type: DC Axial Fan
Rated Voltage: 12VDC
Voltage Range: 7.0 – 13.8 VDC
Rated Current: 0.26 A
Power: 3.12 W
Rated Speed: 3400 RPM
Bearing Type: Sleeve Bearing
Max. Air Flow: 42.5 CFM (72.2 m³/h / 1.20 m³/min)
Max. Static Pressure: 5.1 mmH₂O (50.0 Pa / 0.20 inH₂O)
Dimensions: 80 x 80 x 25 mm
Weight: 88 g
Life Expectancy: 30,000 Hours @ 40°C
Noise Level: 35.0 dBA
Speed Control: Alarm Signal (RD)
Housing Material: PBT Thermoplastic UL94V-0
Blade Material: PBT Thermoplastic UL94V-0
Termination: 3-Wire Leads
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Mounting Orientation: Any
Protection: Locked Rotor Protection, Polarity Protection
Certifications: CE, TUV, UL
Application: UPS Power Supply (Santak)
This cooling solution is specifically calibrated for integration into uninterruptible power supplies (UPS), such as Santak systems, where consistent airflow is paramount for voltage regulation components. The JF0825S1SAPR ensures efficient heat dissipation in power supply units, preventing thermal throttling during peak load operations. Additionally, the JF0825S1SAPR is suitable for industrial cabinet cooling, server rack ventilation, and electronic instrumentation requiring active thermal monitoring via the alarm signal output.
