Description

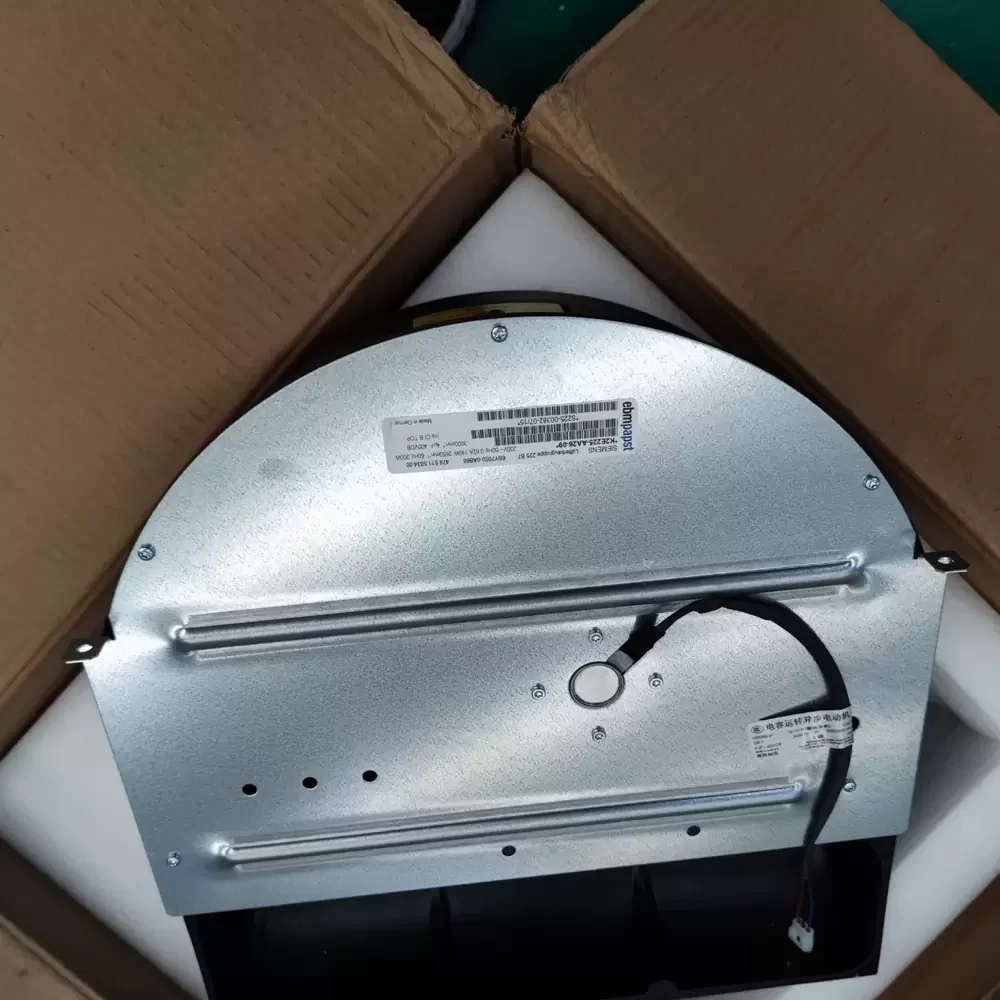

The ebm-papst K2E220-AB06-09 is a high-efficiency Centrifugal Fan module engineered for critical thermal management in industrial environments. This unit utilizes the robust M2E068-CF asynchronous capacitor-run AC motor, renowned for its durability and consistent torque delivery. The aerodynamic profile features a backward-curved impeller design, optimized to minimize turbulence while maximizing static pressure capabilities against high system resistance. Constructed with precision-balanced components, the fan ensures low vibration levels and superior structural rigidity. Its thermal impedance architecture allows for sustained operation under heavy loads, making it an essential component for maintaining the reliability of power electronics and drive systems.

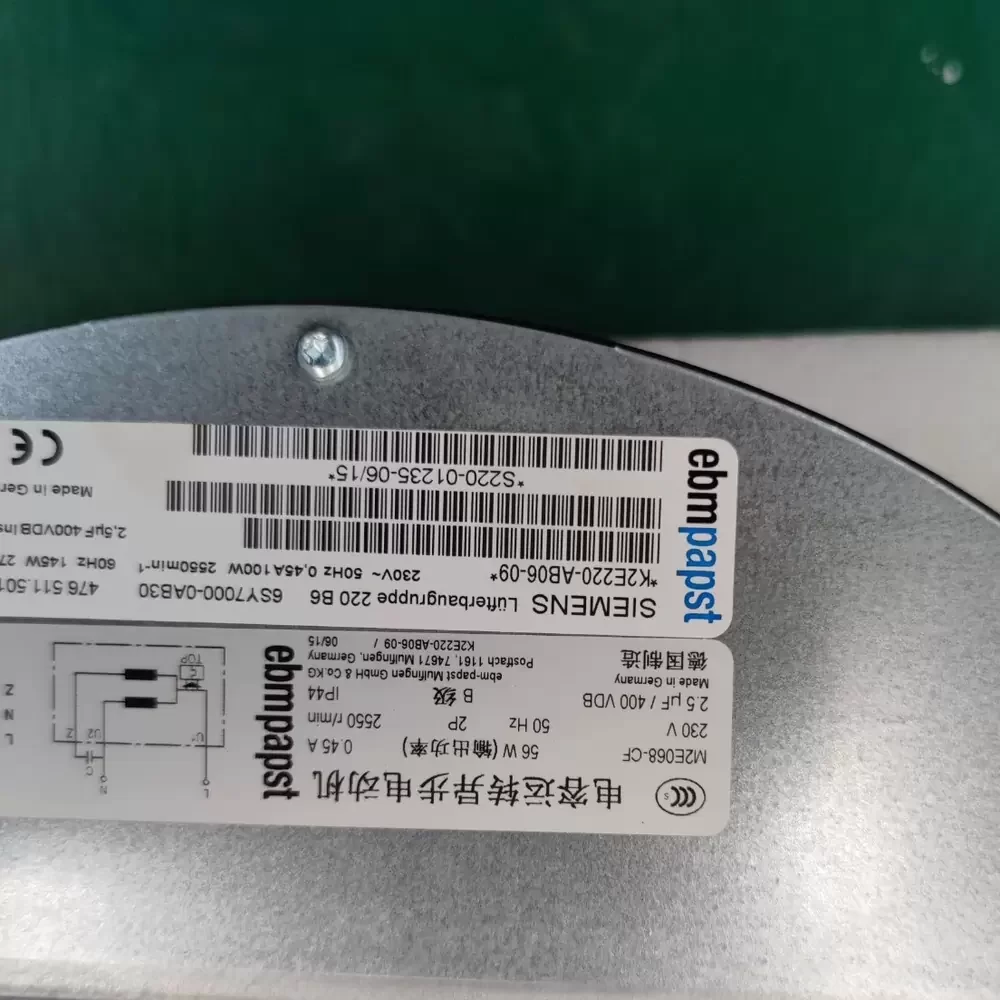

Model Number: K2E220-AB06-09
Brand: ebm-papst
Alternate Part Number: 6SY7000-0AB30
Product Type: Centrifugal Fan / Motorized Impeller
Motor Type: M2E068-CF (AC Asynchronous)
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Voltage Range: 200 – 240 VAC
Power Consumption: 85 W
Rated Current: 0.38 A
Rated Speed: 2550 RPM
Max. Air Flow: 530 CFM (900 m³/h)
Bearing Type: Ball Bearing
Impeller Diameter: 220 mm
Impeller Material: PA Plastic (Polyamide, Glass-fiber reinforced)
Housing Material: PP Plastic
Capacitor: 3 µF / 400 VDB
Insulation Class: Class B
Motor Protection: Thermal Overload Protector (TOP)
Operating Temperature: -25°C to +60°C
Mounting Orientation: Any
Weight: 1.3 kg
Phase: Single Phase
Ingress Protection: IP44
Certifications: CE, UL, CSA
The K2E220-AB06-09 is specifically designed for high-density cooling applications, most notably serving as a direct replacement spare for Siemens Sinamics and Simovert variable frequency drives (VFDs). In these power conversion systems, the K2E220-AB06-09 ensures rapid heat dissipation from IGBT modules and capacitor banks, preventing thermal throttling or catastrophic failure. Beyond drive systems, this centrifugal fan is widely utilized in control cabinet ventilation, renewable energy inverters, and precision medical instrumentation where consistent airflow and long-term reliability are non-negotiable requirements.
