Description

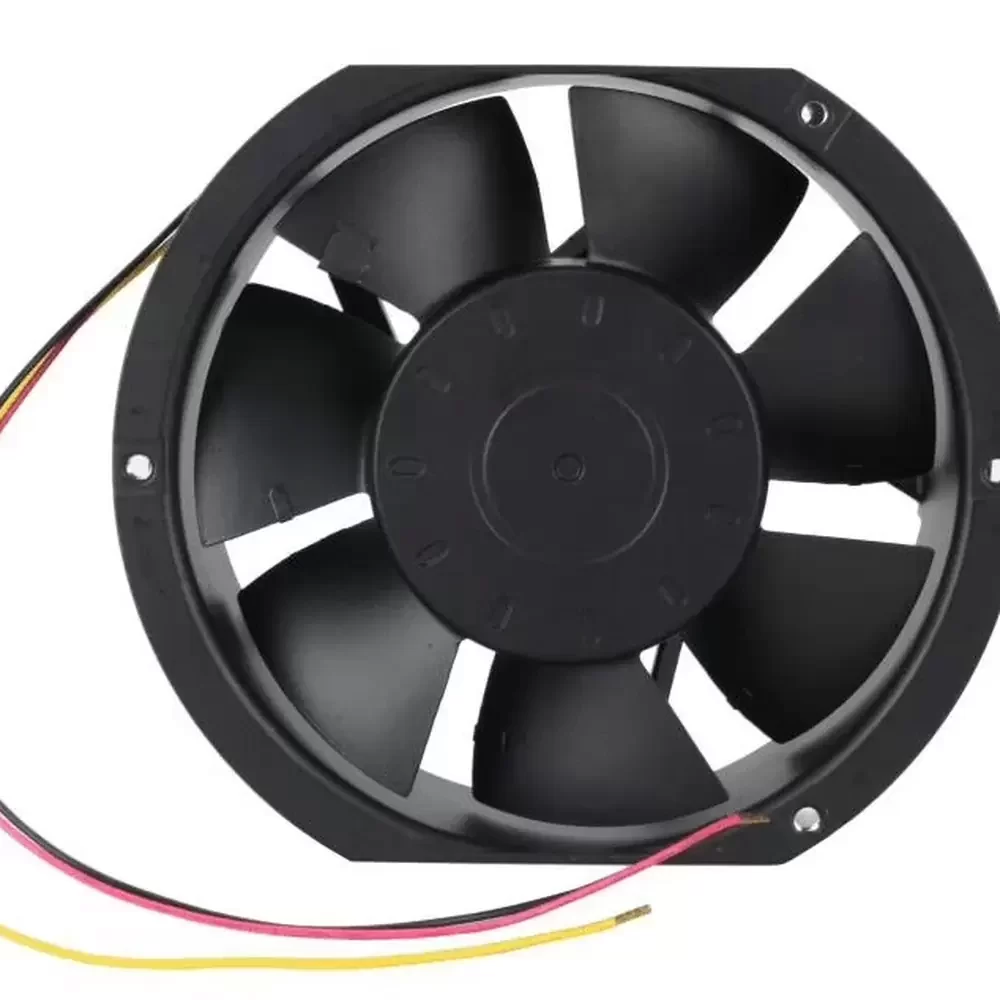

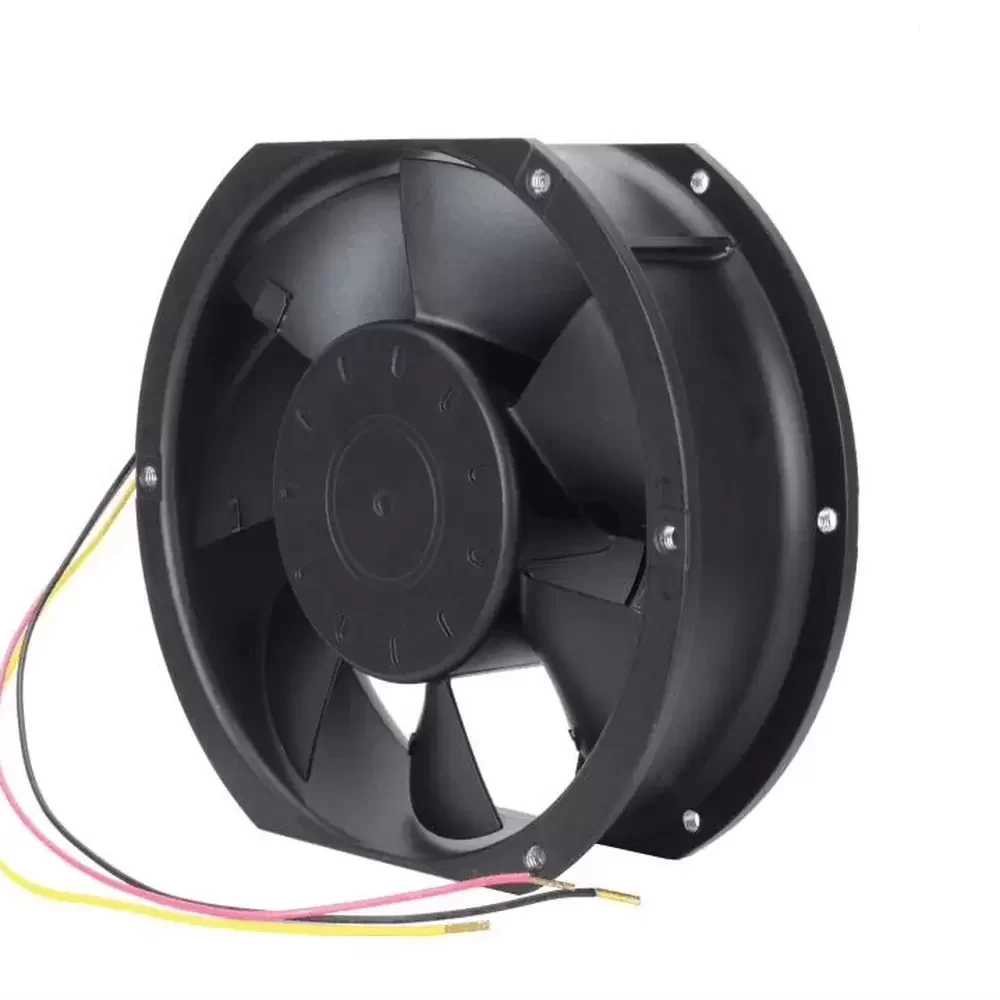

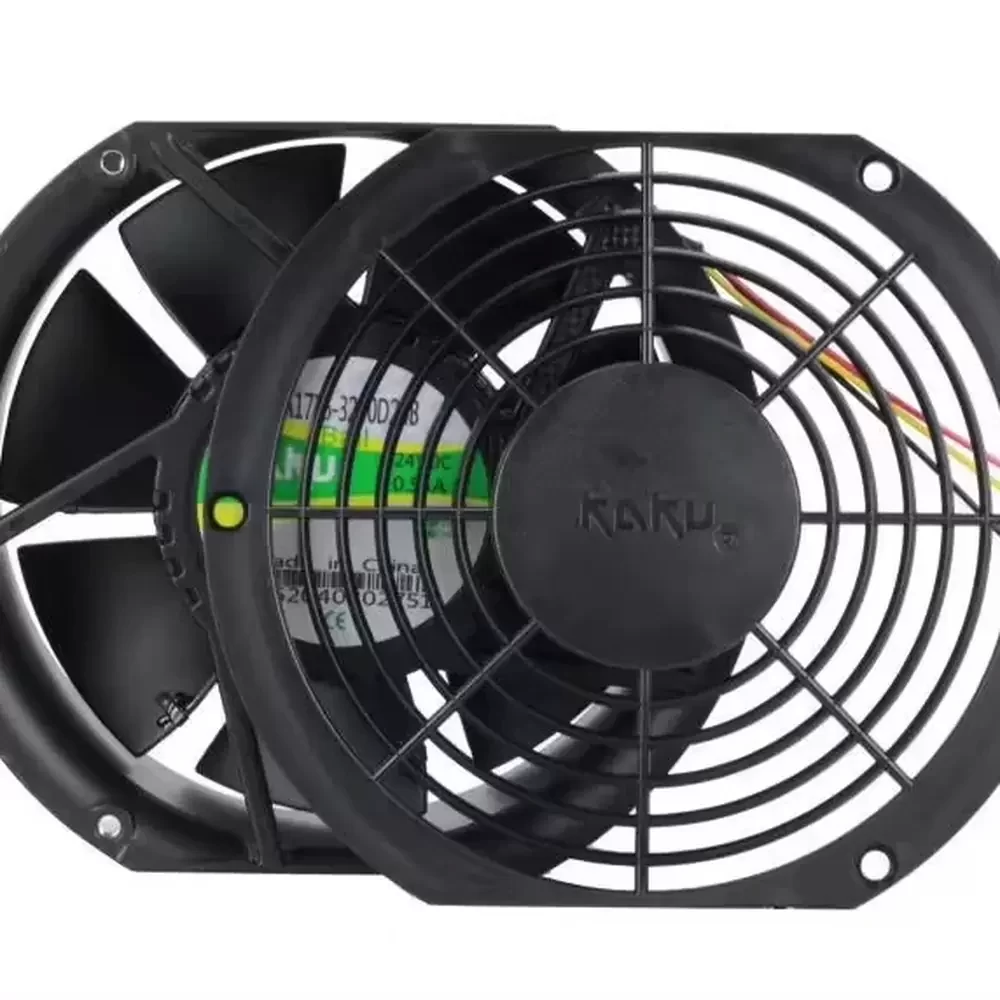

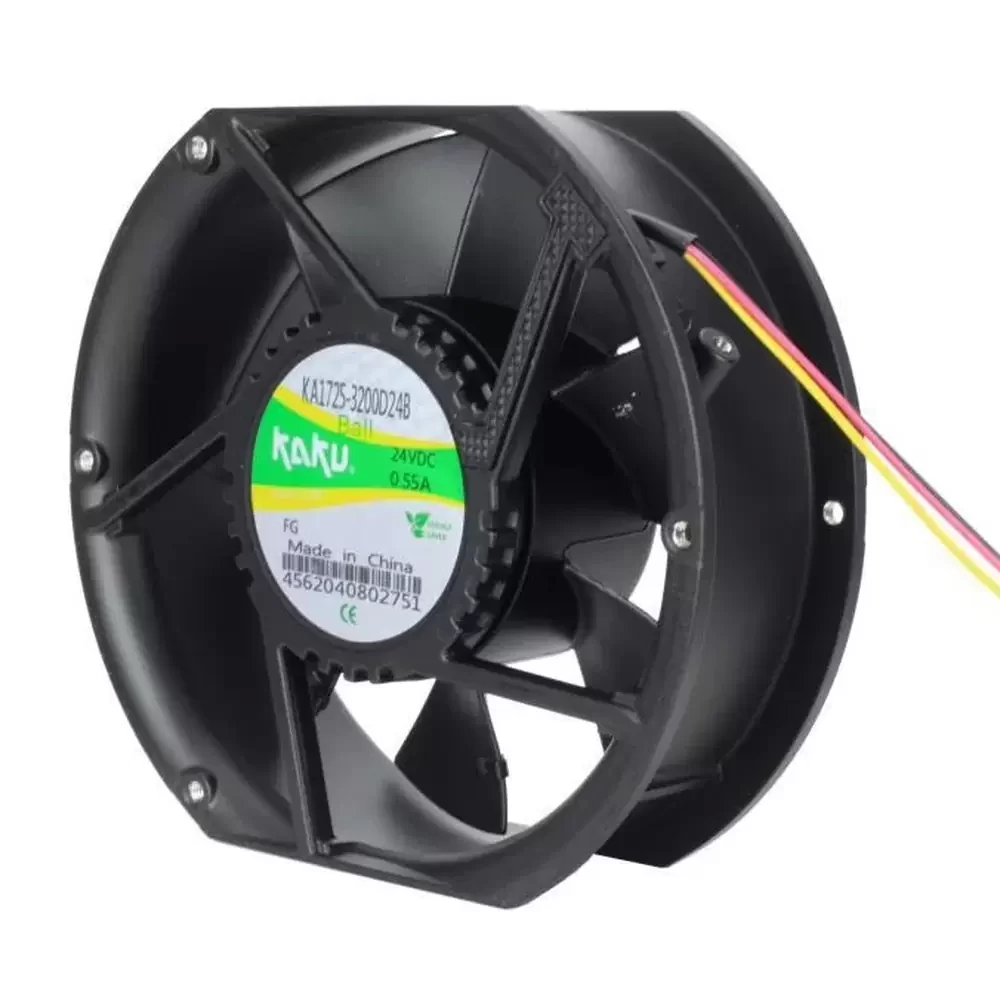

The KAKU KA1725-3200D24B FG is a high-performance Axial Fan engineered for rigorous industrial thermal management applications. Featuring a robust DC motor and a precision ball bearing architecture, this unit delivers exceptional rotational stability and longevity under continuous operation. The aerodynamic impeller design is optimized to reduce turbulence while maximizing static pressure, effectively lowering thermal impedance in high-density electronic enclosures. Constructed with structural rigidity in mind, the fan housing ensures durability against vibration and environmental stress, making it an ideal solution for critical cooling requirements.
Model Number: KA1725-3200D24B FG
Brand: KAKU
Product Type: Axial Fan
Rated Voltage: 24VDC
Voltage Range: 14.0 – 27.6 VDC
Rated Current: 0.55A
Input Power: 13.2W
Rated Speed: 3200 RPM
Bearing Type: Dual Ball Bearing
Max. Air Flow: 235.0 CFM (399.2 m³/h / 6.65 m³/min)
Max. Static Pressure: 16.5 mmH₂O (161.8 Pa / 0.65 inH₂O)
Dimensions: 172x150x51mm
Noise Level: 53.0 dB(A)
Frame Material: Aluminum Die-Cast
Impeller Material: Thermoplastic PBT (UL94V-0)
Termination: 3-Wire Lead
Signal Output: FG (Frequency Generator)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +70°C
Life Expectancy: 50,000 Hours at 25°C
Weight: 820g
Ingress Protection: IP20
This thermal management component is widely utilized in industrial automation setups, specifically for cooling variable frequency drives and power inverters. The KA1725-3200D24B FG is essential for maintaining safe operating temperatures in server cabinets, CNC control panels, and telecommunications rectifiers. By ensuring consistent airflow, the KA1725-3200D24B FG protects sensitive electronics from overheating, thereby enhancing system reliability and preventing costly downtime in manufacturing and medical equipment sectors.
