Description

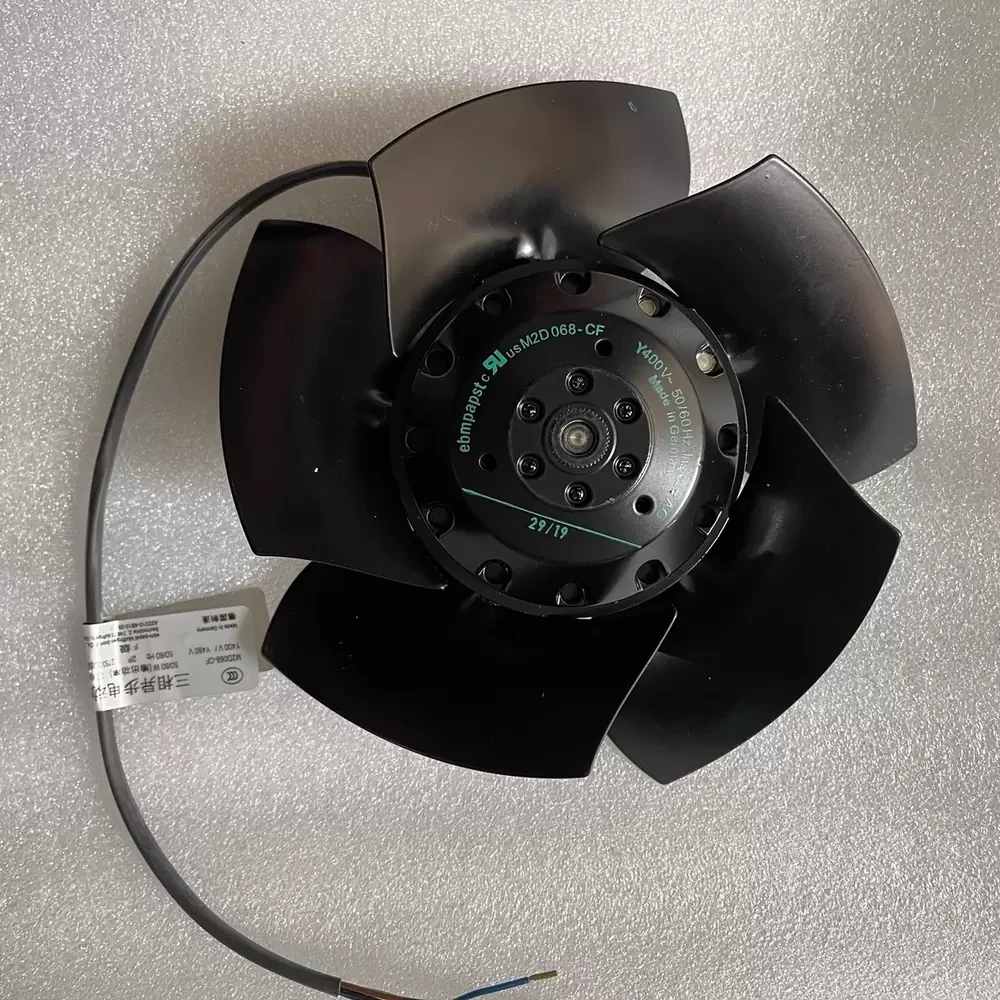

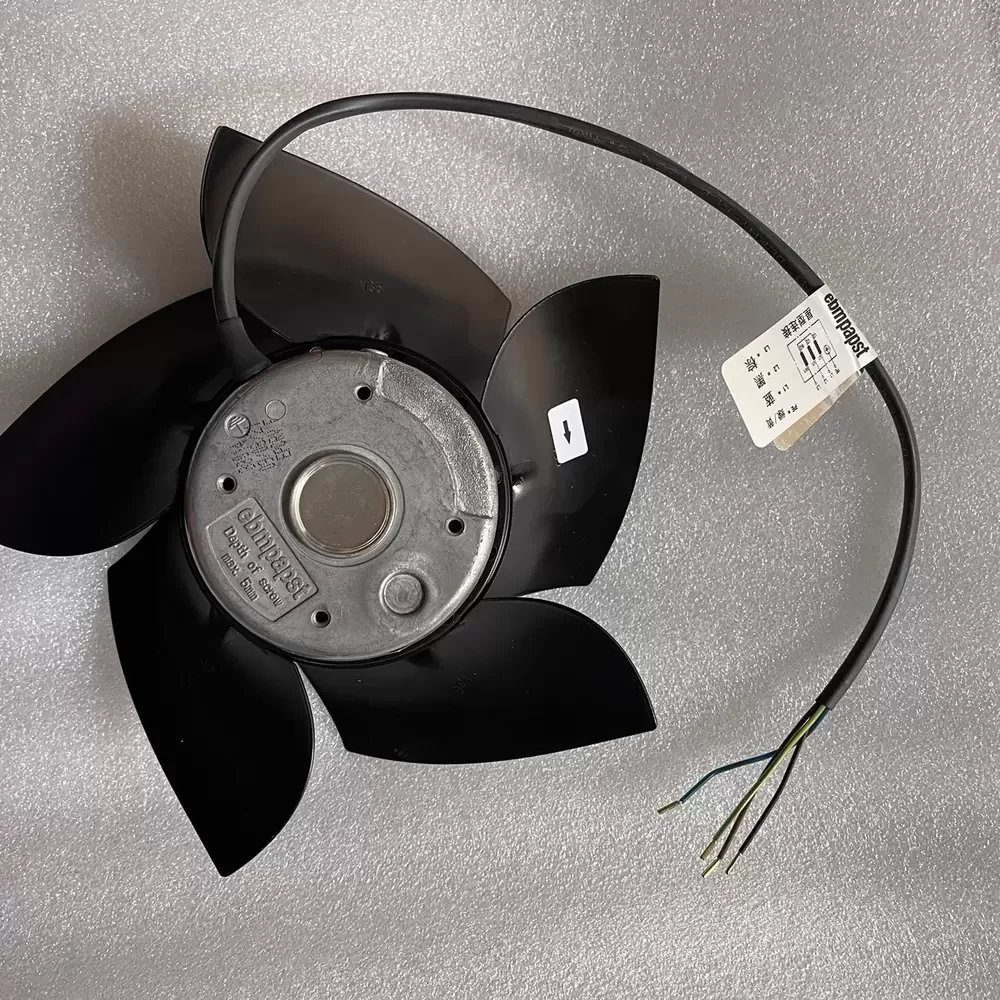

The ebm-papst M2D068-CF is a high-efficiency AC Centrifugal Fan engineered for precision industrial cooling. Utilizing a robust 3-phase external rotor motor, this unit offers exceptional structural rigidity and low thermal impedance, ensuring optimal heat dissipation in demanding environments. The design incorporates a durable ball bearing architecture that enhances longevity and rotational stability under continuous operation. Its aerodynamic profile is calibrated to deliver consistent airflow while minimizing acoustic resonance, making it a critical component for maintaining the thermal equilibrium of sensitive machinery.
Model Number: M2D068-CF
Brand: ebm-papst
Product Type: AC Centrifugal Fan
Rated Voltage: 400 VAC
Frequency: 50 / 60 Hz
Phase: 3-Phase
Rated Current: 0.24 A
Power Input: 105 W
Rated Speed: 2650 RPM
Bearing Type: Ball Bearing
Max. Air Flow: 205.0 CFM (348.3 m³/h / 5.8 m³/min)
Max. Static Pressure: 15.3 mmH₂O (150 Pa / 0.60 inH₂O)
Housing Material: Die-Cast Aluminum
Impeller Material: Sheet Steel
Ingress Protection: IP54
Insulation Class: F
Operating Temperature: -25°C to +60°C
Mounting Orientation: Any
Weight: 3.5 kg
Motor Protection: Thermal Overload Protector
Compliance: CE, RoHS
The M2D068-CF is specifically engineered for the rigorous thermal demands of industrial automation, serving as a primary cooling solution for Siemens spindle motors and heavy-duty CNC machinery. In manufacturing environments, the M2D068-CF ensures the operational stability of drive systems and control cabinets by effectively dissipating heat generated during high-speed processing. Its robust construction also makes it suitable for ventilation in power converters and transformer cooling, where reliability is paramount.
